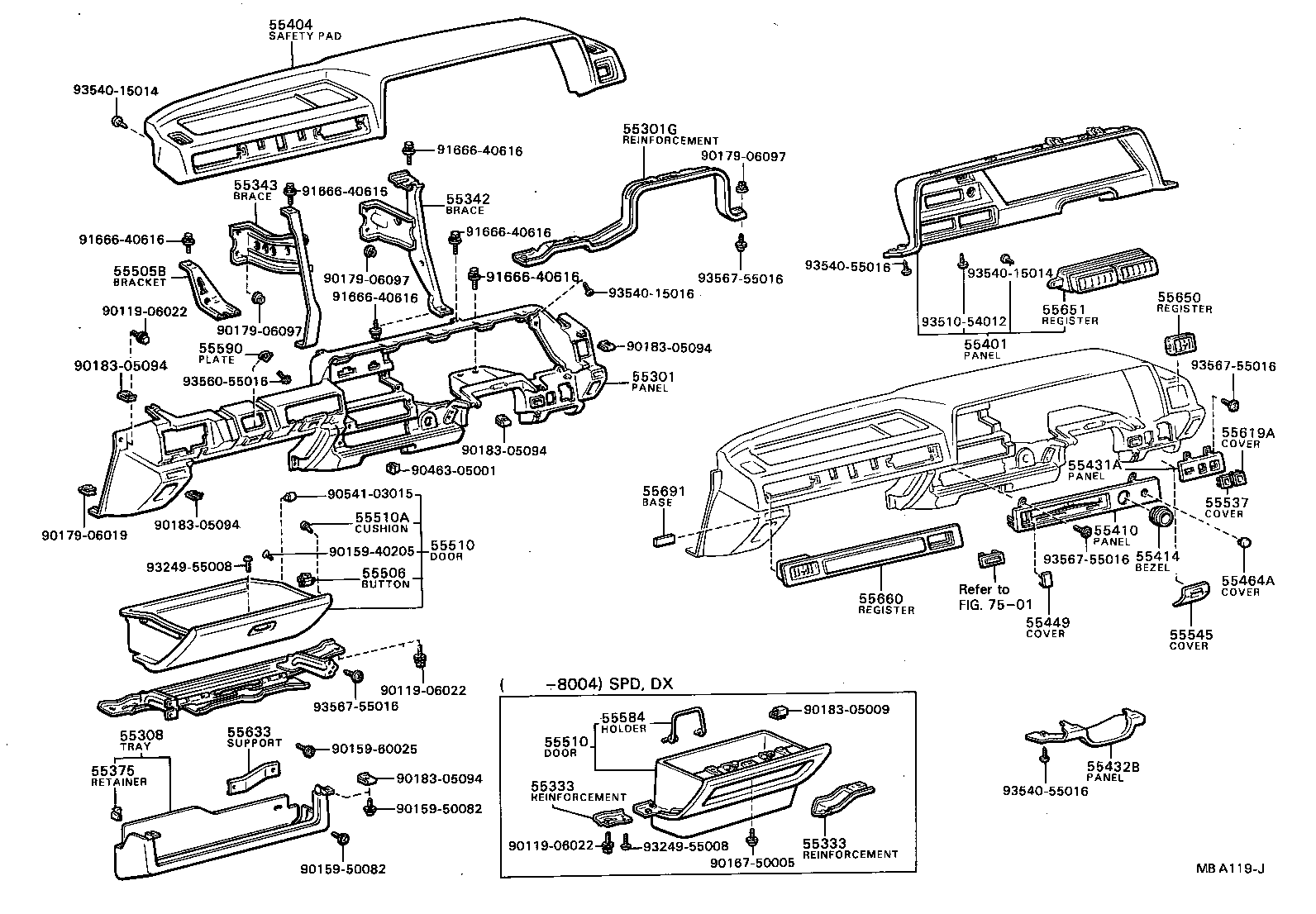

Toyota Sprinter TE70 INSTRUMENT PANEL & GLOVE COMPARTMENT

Part #	Description	Period	Qty
55301 - PANEL SUB-ASSY, INSTRUMENT
55311-1215015	AE70,KE70,TE7#..4D BEIGE,BEIGE,TRIM4#	08/1979 - 08/1981	1
55311-1215001	AE70,CE70,KE70,TE7#..4D BLACK,BLACK,TRIM2#	03/1979 - 04/1983	1
55311-1215004	AE70,CE70,KE70,TE7#..4D BLUE,BLUE,TRIM8#	03/1979 - 04/1983	1
55301G - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL
55305-12050	AE70,KE70,TE7#..4D	03/1979 - 07/1981	1
55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER
55601-1208005	AE70,TE7#..4D BEIGE,BEIGE,TRIM4#	03/1979 - 04/1980	1
55601-1208004	AE70,TE7#..4D BLUE,BLUE,TRIM8#	03/1979 - 04/1980	1
55601-1208005	AE70,KE70,TE7#..(DX,GT,SE,XL)..4D BEIGE,BEIGE,TRIM4#	04/1980 - 08/1981	1
55601-1208001	AE70,TE7#..4D BLACK,BLACK,TRIM2#	03/1979 - 04/1980	1
55342 - BRACE, INSTRUMENT PANEL, NO.2
55307-12030	AE70,CE70,KE70,TE7#..4D	03/1979 - 04/1983	1
55343 - BRACE, INSTRUMENT PANEL, NO.3
55308-12100	AE70,CE70,KE70,TE7#..4D	03/1979 - 04/1983	1
55375 - RETAINER, INSTRUMENT PANEL UNDER TRAY, UPPER
55375-12010	AE70,TE7#;KE70..ST,XL	03/1979 - 08/1981	2
55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
55410-1253003	AE70,TE7#..4D GRAY,GRAY,TRIM2#	03/1979 - 08/1981	1
55410-1253006	AE70,TE7#..4D BROWN,BROWN,TRIM4#	03/1979 - 08/1981	1
55410-1253004	AE70,TE7#..4D BLUE,BLUE,TRIM8#	03/1979 - 08/1981	1
55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
55401-1209001	AE70,CE70,KE70,TE7#..4D BLACK,BLACK,TRIM2#	03/1979 - 04/1983	1
55401-1209015	AE70,KE70,TE7#..4D BEIGE,BEIGE,TRIM4#	08/1979 - 08/1981	1
55401-1209004	AE70,CE70,KE70,TE7#..4D BLUE,BLUE,TRIM8#	03/1979 - 04/1983	1
55410 - PANEL ASSY, INSTRUMENT CLUSTER FINISH, NO.2
55413-12300	AE70,TE7#..(GT,SE)..4D	03/1979 - 08/1981	1
55413-12271	AE70,TE70..XL..4D	12/1979 - 08/1981	1
55413-12270	AE70,TE70..XL..4D	03/1979 - 12/1979	1
55414 - BEZEL, CIGAR LIGHTER HOLE
55477-12050	AE70,CE70,KE70,TE7#..4D	03/1979 - 04/1983	1
55431A - PANEL, INSTRUMENT PANEL FINISH
55431-12040	AE70,TE70..XL..4D	03/1979 - 12/1979	1
55431-12100	AE70,TE7#..(GT,SE)..4D	03/1979 - 08/1981	1
55431-12041	AE70,TE70..XL..4D	12/1979 - 08/1981	1
55431-12110	AE70,TE70..XL..4D W/REMOCON MIRROR	03/1979 - 12/1979	1
55431-12111	AE70,TE70..XL..4D W/REMOCON MIRROR	12/1979 - 08/1981	1
55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER
55432-1206004	AE70,TE7#..4D BLUE,BLUE,TRIM8#	03/1979 - 08/1981	1
55432-1206015	AE70,TE7#..4D BEIGE,BEIGE,TRIM4#	08/1979 - 08/1981	1
55432-1206001	AE70,TE7#..4D BLACK,BLACK,TRIM2#	03/1979 - 08/1981	1
55449 - COVER, COOLER SWITCH HOLE
55538-12030	AE70,CE70,KE70,TE7#..4D W/O COOLER,AIR CONDITIONER	03/1979 - 04/1983	1
55538-12040	AE70,CE70,KE70,TE7#..4D W/AIR CONDITIONER	03/1979 - 04/1983	1
55464A - COVER, CHOKE KNOB HOLE
55617-1001001	AE70,TE7# BLACK,BLACK,TRIM2#	03/1979 - 08/1981	1
55505B - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING
55378-12060	AE70,KE70,TE7#..4D	03/1979 - 08/1981	1
55506 - BUTTON SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK
55560-1203001	AE70,TE7#..4D BLACK	03/1979 - 04/1980	1
55510 - DOOR ASSY, GLOVE COMPARTMENT
55550-1219015	AE70,KE70,TE7#..4D BEIGE,BEIGE,TRIM4#	04/1980 - 08/1981	1
55550-1219015	AE70,TE7#..4D BEIGE,BEIGE,TRIM4#	08/1979 - 04/1980	1
55550-1219004	AE70,TE7#..4D BLUE,BLUE,TRIM8#	03/1979 - 04/1980	1
55550-1219001	AE70,TE7#..4D BLACK,BLACK,TRIM2#	03/1979 - 04/1980	1
55510 - DOOR ASSY, GLOVE COMPARTMENT
55550-1219015	AE70,KE70,TE7#..4D BEIGE,BEIGE,TRIM4#	04/1980 - 08/1981	1
55550-1219015	AE70,TE7#..4D BEIGE,BEIGE,TRIM4#	08/1979 - 04/1980	1
55550-1219004	AE70,TE7#..4D BLUE,BLUE,TRIM8#	03/1979 - 04/1980	1
55550-1219001	AE70,TE7#..4D BLACK,BLACK,TRIM2#	03/1979 - 04/1980	1
55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR)
55557-16010	AE70,TE7#..4D	03/1979 - 04/1980	2
55545 - COVER, FUSE BOX OPENING
55540-1201004	AE70,KE70,TE7#..4D BLUE,BLUE,TRIM8#	03/1979 - 04/1980	1
55540-1201001	AE70,KE70,TE7#..4D BLACK,BLACK,TRIM2#	03/1979 - 04/1980	1
55545-1201015	AE70,KE70,TE7#..4D BEIGE,BEIGE,TRIM4#	04/1980 - 08/1981	1
55540-1201015	AE70,KE70,TE7#..4D BEIGE,BEIGE,TRIM4#	08/1979 - 04/1980	1
55590 - PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER
55590-12010	AE70,TE7#..4D	03/1979 - 04/1980	1
55633 - SUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.2
55632-12050	AE70,TE7#;KE70..ST,XL;KE70..CP..DX	03/1979 - 08/1981	1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-1204001	AE70,CE70,KE70,TE7#..4D BLACK,BLACK,TRIM2#	03/1979 - 04/1983	1
55650-1204004	AE70,CE70,KE70,TE7#..4D BLUE,BLUE,TRIM8#	03/1979 - 04/1983	1
55650-1204015	AE70,KE70,TE7#..4D BEIGE,BEIGE,TRIM4#	08/1979 - 08/1981	1
55651 - REGISTER, INSTRUMENT PANEL, NO.1
55670-12020	AE70,KE70,TE7#..4D	03/1979 - 08/1981	1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-1207004	AE70,KE70,TE7#..4D BLUE,BLUE,TRIM8#	03/1979 - 08/1981	1
55660-1207003	AE70,KE70,TE7#..4D GRAY,GRAY,TRIM2#	03/1979 - 08/1981	1
55660-1207006	AE70,KE70,TE7#..4D BROWN,BROWN,TRIM4#	03/1979 - 08/1981	1
55691 - BASE, INSTRUMENT PANEL NAME
55512-12080	AE70,CE70,KE70,TE7#..4D	03/1979 - 04/1983	2
Common parts
90119-06022
90159-40205
90159-50082
90159-60025
90167-50005
90179-06019
90179-06097
90183-05009
90183-05094
90463-05001
90541-03015
91666-40616
93249-55008
93510-54012
93540-15014
93540-15016
93540-55016
93560-55016
93567-55016
Linked diagrams
7501

TE70-FEHNS (1979)

(7903-8108)4D
