TE70-FEHNS (1979)

Toyota Sprinter

Production Aug 1979 - Aug 1981
Engine 13TU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8108)4D

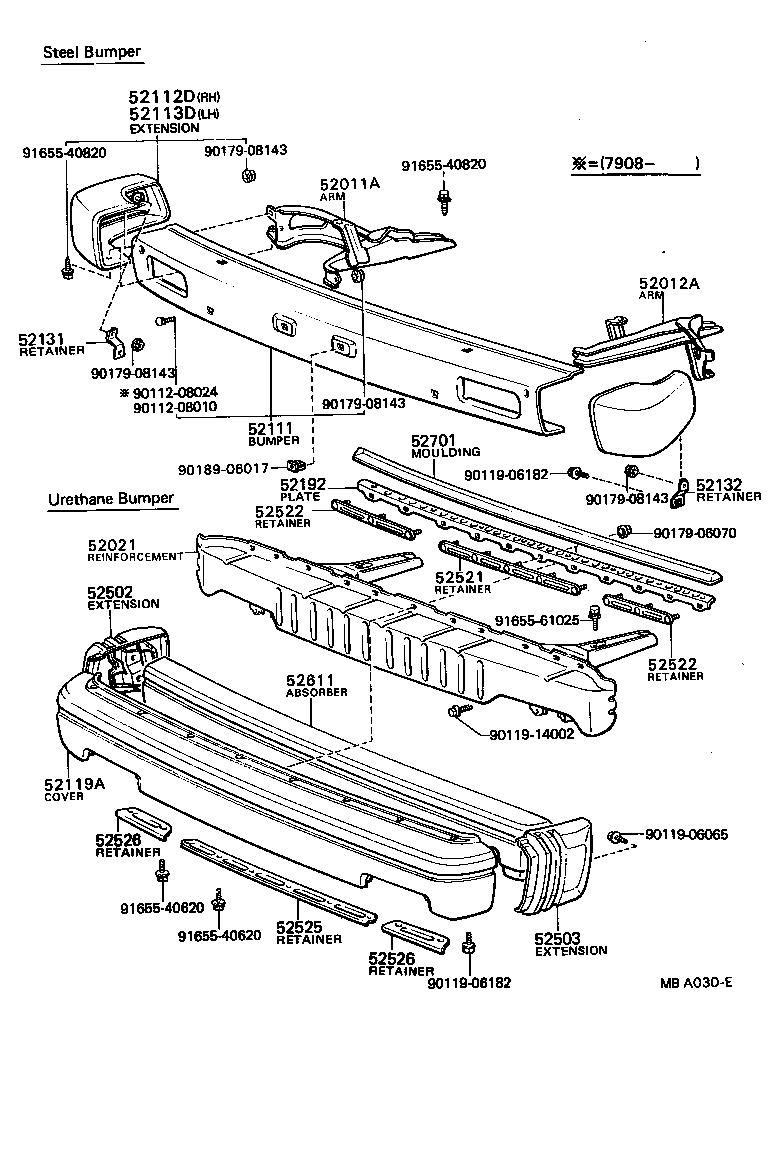

Click highlighted areas on diagram

diagram 52011A 52012A 52021 52111 52112D 52113D 52119A 52131 52132 52192 52502 52503 52521 52522 52522 52525 52526 52526 52611 52701 9011208010 9011208024 9011906065 9011906182 9011906182 9011914002 9017906070 9017908143 9017908143 9017908143 9017908143 9018906017 9165540620 9165540620 9165540820 9165540820 9165561025
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-12020

AE70,KE70,TE7#..(DX,GT,SE,XL)..4D

 1
52112D - EXTENSION, FRONT BUMPER, RH
52102-12050

AE70,KE70,TE7#..(DX,GT,SE,XL)..4D

W/URETHANE BUMPER

 1
52113D - EXTENSION, FRONT BUMPER, LH
52103-12090

AE70,KE70,TE7#..(DX,GT,SE,XL)..4D

W/URETHANE BUMPER

 1
52119A - COVER, FRONT BUMPER
52119-12020

AE70,KE70,TE7#..(DX,GT,SE,XL)..4D

 1
52192 - PLATE, BUMPER MOULDING MOUNTING, FRONT
52193-12020

AE70,KE70,TE7#..(DX,GT,SE,XL)..4D

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-14020

AE70,KE70,TE7#..(DX,GT,SE,XL)..4D

 1
52522 - RETAINER, FRONT BUMPER UPPER SIDE
52522-14010

AE70,KE70,TE7#..(DX,GT,SE,XL)..4D

 2
52522 - RETAINER, FRONT BUMPER UPPER SIDE
52522-14010

AE70,KE70,TE7#..(DX,GT,SE,XL)..4D

 2
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52525-12010

AE70,KE70,TE7#..(DX,GT,SE,XL)..4D

 1
52526 - RETAINER, FRONT BUMPER, LOWER SIDE
52526-12010

AE70,KE70,TE7#..(DX,GT,SE,XL)..4D

 2
52526 - RETAINER, FRONT BUMPER, LOWER SIDE
52526-12010

AE70,KE70,TE7#..(DX,GT,SE,XL)..4D

 2
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-12020

AE70,KE70,TE7#..(DX,GT,SE,XL)..4D

 1
52701 - MOULDING SUB-ASSY, FRONT BUMPER
52701-12020

AE70,KE70,TE7#..(DX,GT,SE,XL)..4D

 1
Common parts
90112-08010
90112-08024
90119-06065
90119-06182
90119-14002
90179-06070
90179-08143
90189-06017
91655-40620
91655-40820
91655-61025
