TE70-FEHNS (1979)
Toyota Sprinter
ILLUST NO. 2 OF 3(7908-8108)3FC ; (8108- )3FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35303 - STRAINER SUB-ASSY, OIL | ||||
| 35303-22022 |
AE70,TE70..3FC |
1 | ||
| 35303-22021 |
AE70,TE70..3FC |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-22010 |
AE70,TE70..3FC |
1 | ||
| 35415 - VALVE, PRESSURE REGULATOR | ||||
| 35415-22020 |
AE70,TE70..3FC |
1 | ||
| 35415A - SPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE) | ||||
| 90501-16682 |
AE70,TE70..3FC |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-22010 |
AE70,TE70..3FC |
1 | ||
| 35417 - SLEEVE, PRESSURE REGULATOR VALVE | ||||
| 35417-22020 |
AE70,TE70..3FC |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-30050 |
AE70,TE70..3FC |
1 | ||
| 35418-22010 |
AE70,TE70..3FC |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-22010 |
AE70,TE70..3FC |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-13674 |
AE70,TE70..3FC |
1 | ||
| 35420 - BODY ASSY, LOWER VALVE | ||||
| 35420-22020 |
AE70,TE70..3FC |
1 | ||
| 35420A - BALL (FOR PRESSURE RELIEF) | ||||
| 90360-13024 |
AE70,TE70..3FC |
1 | ||
| 35420B - SPRING (FOR PRESSURE RELIEF) | ||||
| 90501-18677 |
AE70,TE70..3FC |
1 | ||
| 35420C - SEAT (FOR PRESSURE RELIEF) | ||||
| 35427-22011 |
AE70,TE70..3FC |
1 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 35496-22010 |
AE70,TE70..3FC 外径=6.35,ﾗﾊﾞｰ,OD=6.35,GUM |
1 | ||
| 35495-22010 |
AE70,TE70..3FC 外径=5.535,ﾗﾊﾞｰ,OD=5.56,GUM |
1 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 35496-22010 |
AE70,TE70..3FC 外径=6.35,ﾗﾊﾞｰ,OD=6.35,GUM |
1 | ||
| 35495-22010 |
AE70,TE70..3FC 外径=5.535,ﾗﾊﾞｰ,OD=5.56,GUM |
1 | ||
| 35420E - SPRING (FOR LOWER VALVE BODY) | ||||
| 90501-04727 |
AE70,TE70..3FC |
1 | ||
| 35421 - PISTON, ACCUMULATOR, NO.1 | ||||
| 35421-22010 |
AE70,TE70..3FC |
1 | ||
| 35421A - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90501-26776 |
TE70..3FC |
1 | ||
| 35421D - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-29187 |
AE70,TE70..3FC |
1 | ||
| 35421E - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-23194 |
AE70,TE70..3FC |
1 | ||
| 35421F - PISTON, ACCUMULATOR, NO.2 | ||||
| 35421-22020 |
AE70,TE70..3FC |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-20676 |
AE70,TE70..3FC |
1 | ||
| 35421H - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-26190 |
AE70,TE70..3FC |
1 | ||
| 35421J - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-18186 |
AE70,TE70..3FC |
1 | ||
| 35421P - PISTON, ACCUMULATOR, NO.3 | ||||
| 35421-22030 |
AE70,TE70..3FC |
1 | ||
| 35421Q - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90501-20675 |
AE70,TE70..3FC |
1 | ||
| 35421R - RING (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90301-26190 |
AE70,TE70..3FC |
1 | ||
| 35421S - RING (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90301-22185 |
AE70,TE70..3FC |
1 | ||
| 35425 - SEAT, PRESSURE REGULATOR VALVE SLEEVE | ||||
| 35425-22010 |
AE70,TE70..3FC |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-22020 |
AE70,TE70..3FC |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-22020 |
AE70,TE70..3FC |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-22020 |
AE70,TE70..3FC |
1 | ||
| 35449 - VALVE, SEQUENCE | ||||
| 35447-22010 |
AE70,TE70..3FC UPR VALVE |
1 | ||
| 35449-22010 |
AE70,TE70..3FC LWR VALVE |
1 | ||
| 35449A - SPRING, COMPRESSION (FOR SEQUENCE VALVE) | ||||
| 90501-12726 |
AE70,TE70..3FC |
2 | ||
| 35454 - VALVE, LOW COAST SHIFT | ||||
| 35454-22010 |
AE70,TE70..3FC |
1 | ||
| 35455 - PLUG, 1-2 SHIFT VALVE LOW | ||||
| 35455-22010 |
AE70,TE70..3FC |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-22010 |
AE70,TE70..3FC |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-06684 |
AE70,TE70..3FC |
1 | ||
| 35471 - COVER, VALVE BODY, NO.1 | ||||
| 35471-22010 |
AE70,TE70..3FC |
1 | ||
| 35474 - COVER, VALVE BODY, NO.4 | ||||
| 35474-22010 |
AE70,TE70..3FC |
1 | ||
| 35493 - SEAT, SHIFT VALVE SPRING | ||||
| 35493-22010 |
AE70,TE70..3FC |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-22010 |
AE70,TE70..3FC |
1 | ||
| 35599-30010 |
AE70,TE70..3FC |
1 | ||
| Common parts | ||||
| 90101-05415 | ||||
| 90101-05419 | ||||
| 90101-06421 | ||||
| 90101-06422 | ||||
| 90101-06423 | ||||
| 90101-06424 | ||||
| 90101-06425 | ||||
| 94541-00500 | ||||
| 94542-00600 | ||||

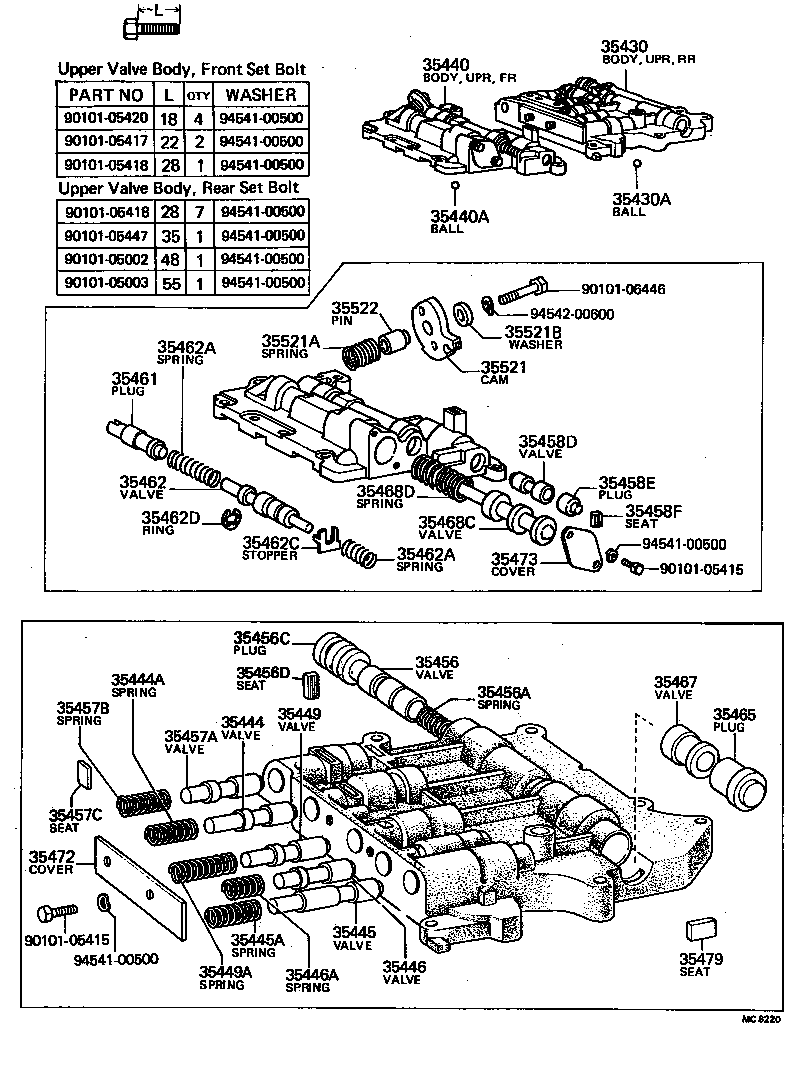

ILLUST NO. 1 OF 3(7908-8108)3FC ; (8108- )ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35430 - BODY ASSY, REAR UPPER VALVE | ||||
| 35430-22060 |
AE70,TE70..3FC |
1 | ||
| 35430A - BALL (FOR REAR UPPER VALVE BODY) | ||||
| 90360-06023 |
AE70,TE70..3FC 外径=5.56,STEEL,OD=5.56,STEEL |
1 | ||
| 35495-22010 |
AE70,TE70..3FC 外径=5.535,ﾗﾊﾞｰ,OD=5.56,GUM |
3 | ||
| 35440 - BODY ASSY, FRONT UPPER VALVE | ||||
| 35440-22030 |
AE70,TE70..3FC |
1 | ||
| 35440A - BALL (FOR FRONT UPPER VALVE BODY) | ||||
| 35495-22010 |
AE70,TE70..3FC 外径=5.535,ﾗﾊﾞｰ |
1 | ||
| 35444 - VALVE, INTERMEDIATE MODULATOR | ||||
| 35444-22010 |
AE70,TE70..3FC |
1 | ||
| 35444A - SPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE) | ||||
| 90501-11001 |
AE70,TE70..3FC |
1 | ||
| 35445 - VALVE, LOW MODULATOR | ||||
| 35445-22010 |
AE70,TE70..3FC |
1 | ||
| 35445A - SPRING, COMPRESSION (FOR LOW MODULATOR VALVE) | ||||
| 90501-08725 |
AE70,TE70..3FC |
1 | ||
| 35446 - VALVE, GOVERNOR MODULATOR | ||||
| 35446-22010 |
AE70,TE70..3FC |
1 | ||
| 35446A - SPRING, COMPRESSION (FOR GOVERNOR MODULATOR VALVE) | ||||
| 90501-07688 |
AE70,TE70..3FC |
1 | ||
| 35449 - VALVE, SEQUENCE | ||||
| 35447-22010 |
AE70,TE70..3FC UPR VALVE |
1 | ||
| 35449-22010 |
AE70,TE70..3FC LWR VALVE |
1 | ||
| 35449A - SPRING, COMPRESSION (FOR SEQUENCE VALVE) | ||||
| 90501-12726 |
AE70,TE70..3FC |
2 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-22010 |
AE70,TE70..3FC |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-08724 |
AE70,TE70..3FC |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 35452-22010 |
AE70,TE70..3FC |
1 | ||
| 35456D - SEAT (FOR 2-3 SHIFT VALVE) | ||||
| 35493-22020 |
AE70,TE70..3FC |
1 | ||
| 35457A - VALVE, DETENT REGULATOR | ||||
| 35457-22010 |
AE70,TE70..3FC |
1 | ||
| 35457B - SPRING, COMPRESSION (FOR DETENT REGULATOR VALVE) | ||||
| 90501-09739 |
AE70,TE70..3FC |
1 | ||
| 35457C - SEAT (FOR DETENT REGULATOR VALVE) | ||||
| 35438-22020 |
AE70,TE70..3FC |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-22010 |
AE70,TE70..3FC |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 35459-22010 |
AE70,TE70..3FC |
1 | ||
| 35458F - SEAT (FOR CUT BACK VALVE) | ||||
| 35493-22010 |
AE70,TE70..3FC |
1 | ||
| 35461 - PLUG, DOWN SHIFT | ||||
| 35408-22020 |
AE70,TE70..3FC |
1 | ||
| 35462 - VALVE, THROTTLE | ||||
| 35462-22011 |
AE70,TE70..3FC |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-07680 |
AE70,TE70..3FC 長さ=19.24,WD=0.71,CW=8,SECONDARY |
1 | ||
| 90501-12011 |
AE70,TE70..3FC 長さ=39.71,WD=1.19,CW=11.5,PRIMARY |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-07680 |
AE70,TE70..3FC 長さ=19.24,WD=0.71,CW=8,SECONDARY |
1 | ||
| 90501-12011 |
AE70,TE70..3FC 長さ=39.71,WD=1.19,CW=11.5,PRIMARY |
1 | ||
| 35462C - STOPPER, VALVE VIBRATING | ||||
| 35422-22010 |
AE70,TE70..3FC |
1 | ||
| 35462D - RING, E (FOR THROTTLE VALVE) | ||||
| 90523-06023 |
AE70,TE70..3FC |
1 | ||
| 35465 - PLUG, INTERMEDIATE SHIFT VALVE | ||||
| 35465-22010 |
AE70,TE70..3FC |
1 | ||
| 35467 - VALVE, INTERMEDIATE SHIFT | ||||
| 35467-22010 |
AE70,TE70..3FC |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-22010 |
AE70,TE70..3FC |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-16683 |
AE70,TE70..3FC |
1 | ||
| 35472 - COVER, VALVE BODY, NO.2 | ||||
| 35472-22010 |
AE70,TE70..3FC |
1 | ||
| 35473 - COVER, TRANSMISSION VALVE BODY | ||||
| 35473-22010 |
AE70,TE70..3FC |
1 | ||
| 35479 - SEAT, INTERMEDIATE SHIFT VALVE | ||||
| 35479-22010 |
AE70,TE70..3FC |
1 | ||
| 35521 - CAM, THROTTLE VALVE | ||||
| 35521-22030 |
AE70,TE70..3FC |
1 | ||
| 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) | ||||
| 90508-12331 |
AE70,TE70..3FC |
1 | ||
| 35521B - WASHER (FOR THROTTLE VALVE CAM SET) | ||||
| 90201-06472 |
AE70,TE70..3FC |
1 | ||
| 35522 - PIN, THROTTLE VALVE CAM | ||||
| 35522-22010 |
AE70,TE70..3FC |
1 | ||
| Common parts | ||||
| 90101-05002 | ||||
| 90101-05003 | ||||
| 90101-05415 | ||||
| 90101-05417 | ||||
| 90101-05418 | ||||
| 90101-05420 | ||||
| 90101-05447 | ||||
| 90101-06446 | ||||
| 94541-00500 | ||||
| 94542-00600 | ||||
