TE70-FEHNS (1979)

Toyota Sprinter

Production Aug 1979 - Aug 1981
Engine 13TU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8108)13TU

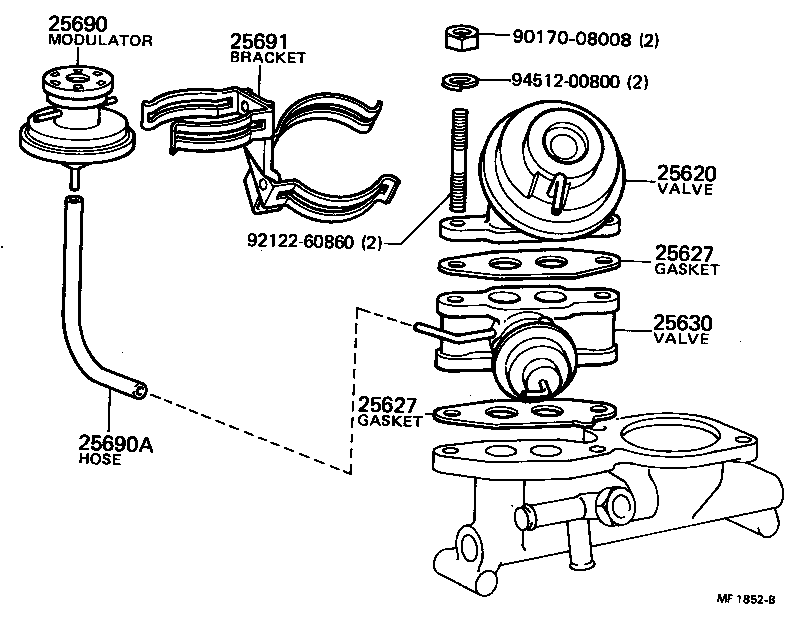

Click highlighted areas on diagram

diagram 25620 25627 25627 25630 25690 25690A 25691 9017008008 9212260860 9451200800
Part # Description Qty Price
25620 - VALVE ASSY, EGR
25620-18010

13TU..TE70

 1
25627 - GASKET, EGR VALVE
25627-26011

13TU..TE70

 2
25627 - GASKET, EGR VALVE
25627-26011

13TU..TE70

 2
25630 - VALVE ASSY, EGR, NO.2
25630-18090

13TU..TE70..3FC

 1
25690 - MODULATOR ASSY, EGR VACUUM
25690-28010

13TU..TE70

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
90445-11020

13TU..TE70

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-27011

13TU..TE70

 1
Common parts
90170-08008
92122-60860
94512-00800
