TE70-FEHNS (1979)

Toyota Sprinter

Production Aug 1979 - Aug 1981
Engine 13TU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8108)13TU

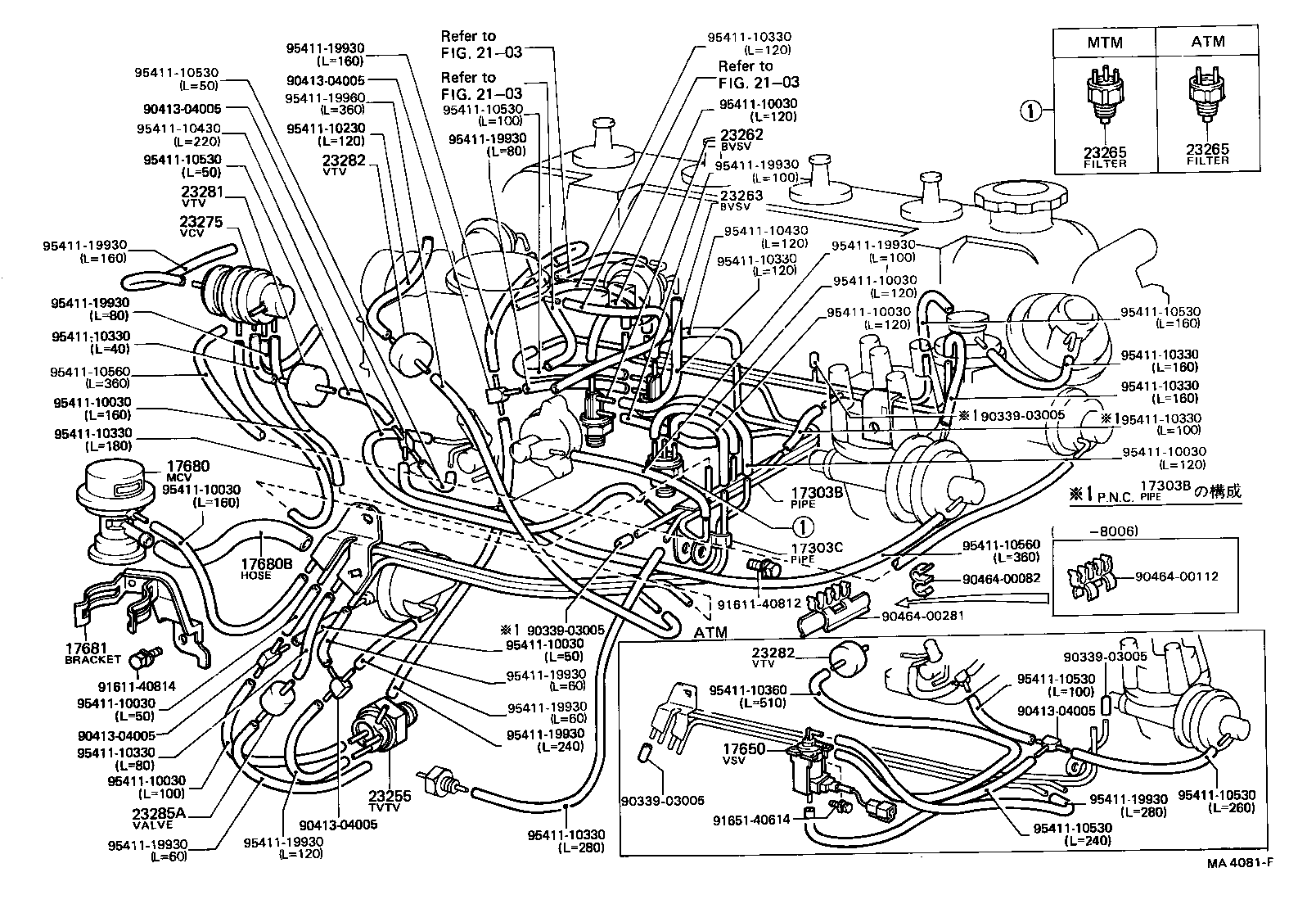

Click highlighted areas on diagram

diagram 17303B 17303C 17650 17680 17680B 17681 2103 2103 2103 23255 23262 23263 23265 23265 23275 23281 23282 23282 23285A 9033903005 9033903005 9033903005 9033903005 9041304005 9041304005 9041304005 9041304005 9041304005 9046400082 9046400112 9046400281 9161140812 9161140814 9165140614 9541110030 9541110030 9541110030 9541110030 9541110030 9541110030 9541110030 9541110030 9541110030 9541110230 9541110330 9541110330 9541110330 9541110330 9541110330 9541110330 9541110330 9541110330 9541110330 9541110360 9541110430 9541110430 9541110530 9541110530 9541110530 9541110530 9541110530 9541110530 9541110530 9541110560 9541110560 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119960
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-18031

13TU..TE70

 1
17303-18030

13TU..TE70

 1
17303C - PIPE SUB-ASSY, AIR, NO.2
17303-18051

13TU..TE70

 1
17303-18050

13TU..TE70

 1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-12090

13TU..TE70..3FC

 1
23255 - VALVE, THERMOSTATIC VACUUM TRANSMITTING, NO.1
90925-01068

13TU..TE70

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25810-15010

13TU..TE70

 1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
25810-24010

13TU..TE70

 1
23265 - FILTER, GAS, NO.1
90917-11023

13TU..TE70..3FC

 1
23265 - FILTER, GAS, NO.1
90917-11023

13TU..TE70..3FC

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03095

13TU..TE70

 1
90925-03101

13TU..TE70..3FC

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01072

13TU..TE70

 1
23282 - VALVE, VACUUM TRANSMITTING, NO.2
90925-01014

13TU..TE70

 1
90925-01058

13TU..TE70..3FC

 1
23282 - VALVE, VACUUM TRANSMITTING, NO.2
90925-01014

13TU..TE70

 1
90925-01058

13TU..TE70..3FC

 1
23285A - VALVE, CHECK, NO.1
90917-10059

13TU..TE70

 1
Common parts
90339-03005
90413-04005
90464-00082
90464-00112
90464-00281
91611-40812
91611-40814
91651-40614
95411-10030
95411-10230
95411-10330
95411-10360
95411-10430
95411-10530
95411-10560
95411-19930
95411-19960
Linked diagrams
2103
