TE70-FEHNS (1979)
Toyota Sprinter

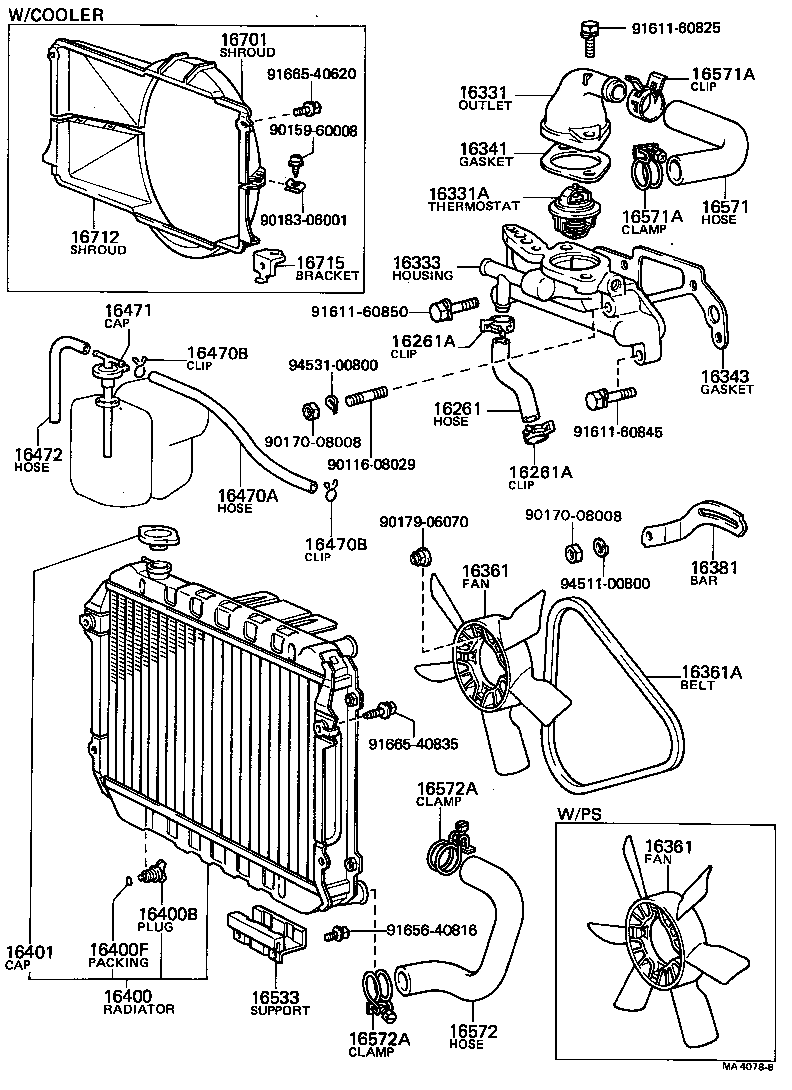

ILLUST NO. 1 OF 2(7908-8108)13TU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-25020 |
13TU..TE70 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20005 |
13TU..TE70 |
2 | ||
| 90467-20004 |
13TU..TE70 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20005 |
13TU..TE70 |
2 | ||
| 90467-20004 |
13TU..TE70 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-26060 |
13TU..TE70 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03040 |
13TU..TE70 *WAX 88-100,KUZEH |
1 | ||
| 90916-03036 |
13TU,2TGEU..TE7# *WAX 88-100,*(F) |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-26041 |
13TU..TE70 |
1 | ||
| 16303-26072 |
13TU..TE70 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38010 |
13TU..TE70 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-26010 |
13TU..TE70 |
1 | ||
| 16361 - FAN | ||||
| 16361-26040 |
13TU,2TGEU..TE7# |
1 | ||
| 16361-26050 |
13TU,2TGEU..TE7# W/COOLER |
1 | ||
| 16361-18010 |
13TU..TE70..SE,ST,XL W/POWER STEERING |
1 | ||
| 16361 - FAN | ||||
| 16361-26040 |
13TU,2TGEU..TE7# |
1 | ||
| 16361-26050 |
13TU,2TGEU..TE7# W/COOLER |
1 | ||
| 16361-18010 |
13TU..TE70..SE,ST,XL W/POWER STEERING |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99321-00885 |
13TU..TE70 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-25010 |
13TU,2TGEU..TE7# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-26230 |
13TU..TE70..3FC W/POWER STEERING |
1 | ||
| 16400-26220 |
13TU..TE70..3FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
13TU,2TGEU..TE7# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01007 |
13TU,2TGEU..TE7# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
13TU,2TGEU..TE7# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12073 |
13TU..TE70 長さ=420 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
13TU,2TGEU..TE7# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
13TU,2TGEU..TE7# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 85339-12010 |
13TU..TE70 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-16010 |
13TU..TE70 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-26030 |
13TU..TE70..SE,ST,XL W/POWER STEERING |
1 | ||
| 16533-26010 |
13TU,2TGEU..TE7# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-26080 |
13TU..TE70..SE,ST,XL W/POWER STEERING |
1 | ||
| 90916-01166 |
13TU..TE70 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96111-10430 |
13TU,2TGEU..TE7# RADIATOR SIDE |
1 | ||
| 96111-10430 |
13TU,2TGEU..TE7# RADIATOR SIDE |
1 | ||
| 90467-37001 |
13TU..TE70 WATER OUTLET SIDE |
1 | ||
| 90467-37001 |
13TU..TE70 WATER OUTLET SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96111-10430 |
13TU,2TGEU..TE7# RADIATOR SIDE |
1 | ||
| 96111-10430 |
13TU,2TGEU..TE7# RADIATOR SIDE |
1 | ||
| 90467-37001 |
13TU..TE70 WATER OUTLET SIDE |
1 | ||
| 90467-37001 |
13TU..TE70 WATER OUTLET SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-26040 |
13TU..TE70..SE,ST,XL W/POWER STEERING |
1 | ||
| 16571-26060 |
13TU,2TGEU..TE7# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
13TU,2TGEU..TE7# WATER PUMP SIDE |
1 | ||
| 90460-47036 |
13TU,2TGEU..TE7# RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
13TU,2TGEU..TE7# WATER PUMP SIDE |
1 | ||
| 90460-47036 |
13TU,2TGEU..TE7# RADIATOR SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-28060 |
13TU..TE70..SE,ST,XL W/COOLER & POWER STEERING |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-28040 |
13TU..TE70..SE,ST,XL W/COOLER & POWER STEERING |
1 | ||
| 16715 - BRACKET, FAN SHROUD | ||||
| 16715-28010 |
13TU..TE70..SE,ST,XL W/COOLER & POWER STEERING |
1 | ||
| Common parts | ||||
| 90116-08029 | ||||
| 90159-60008 | ||||
| 90170-08008 | ||||
| 90179-06070 | ||||
| 90183-06001 | ||||
| 91611-60825 | ||||
| 91611-60845 | ||||
| 91611-60850 | ||||
| 91656-40816 | ||||
| 91665-40620 | ||||
| 91665-40835 | ||||
| 94511-00800 | ||||
| 94531-00800 | ||||

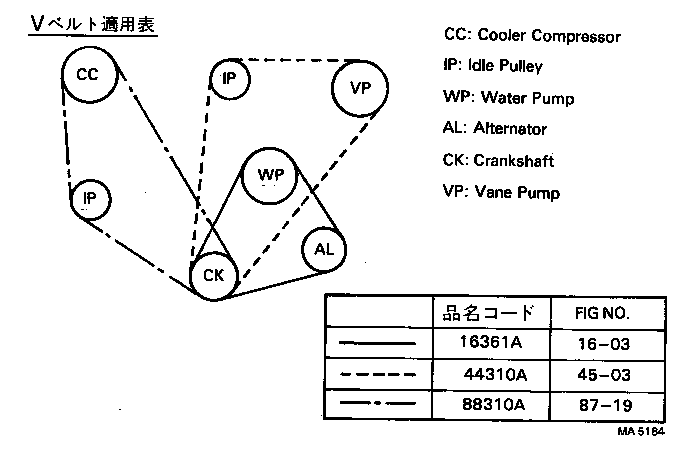

ILLUST NO. 2 OF 2(7908-8108)13TU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99321-00885 |
13TU..TE70 |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 99332-01080 |
TE70..SE,ST,XL |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99322-00950 |
TE7# |
1 | ||
| Linked diagrams | ||||
| 1603 | ||||
| 4503 | ||||
| 8719 | ||||
