TE70-FEHES (1979)

Toyota Sprinter

Production Aug 1979 - Aug 1981
Engine 13TU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8108)TE70..SE,ST,XL

Click highlighted areas on diagram

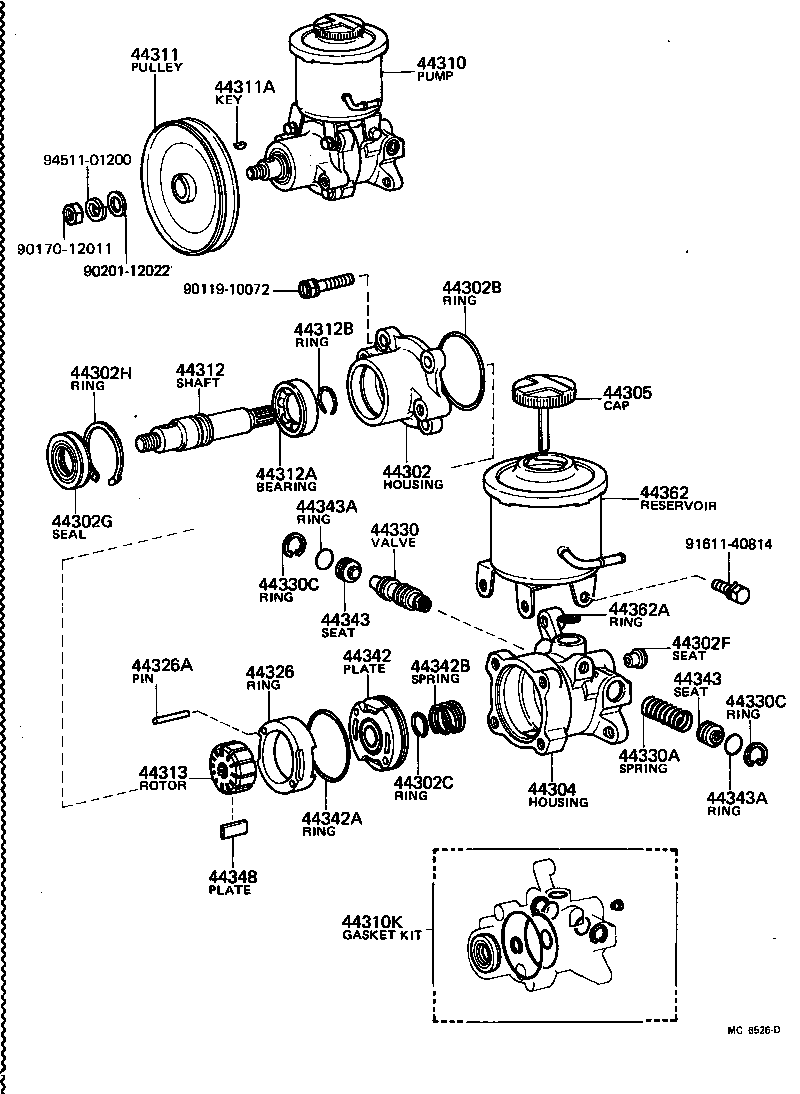

diagram 44302 44302B 44302C 44302F 44302G 44302H 44304 44305 44310 44310K 44311 44311A 44312 44312A 44312B 44313 44326 44326A 44330 44330A 44330C 44330C 44342 44342A 44342B 44343 44343 44343A 44343A 44348 44362 44362A 9011910072 9017012011 9020112022 9161140814 9451101200
Part # Description Qty Price
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-12010

TE70..SE,ST,XL

 1
44302B - RING, O, NO.1(FOR VANE PUMP HOUSING)
90301-60001

TE70..SE,ST,XL

 1
44302C - RING, O, NO.2(FOR VANE PUMP HOUSING)
96710-01016

TE70..SE,ST,XL

 1
44302F - SEAT, UNION(FOR VANE PUMP HOUSING)
90410-06030

TE70..SE,ST,XL

 1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90311-24001

TE70..SE,ST,XL

 1
44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING)
90521-44002

TE70..SE,ST,XL

 1
44304 - HOUSING SUB-ASSY, VANE PUMP, REAR
44304-12010

TE70..SE,ST,XL

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-30020

TE70..SE,ST,XL

 1
44310 - PUMP ASSY, VANE
44320-12010

TE70..SE,ST,XL

 1
44320-12011

TE70..SE,ST,XL

 1
44310K - GASKET KIT, POWER STEERING PUMP
04446-12011

TE70..SE,ST,XL

 1
44311 - PULLEY, VANE PUMP
44311-12010

TE70..SE,ST,XL

 1
44311A - KEY, VANE PUMP PULLEY
90280-05008

TE70..SE,ST,XL

 1
44312 - SHAFT, VANE PUMP
44312-12010

TE70..SE,ST,XL

 1
44312A - BEARING(FOR VANE PUMP SHAFT)
90363-17004

TE70..SE,ST,XL

 1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90520-15001

TE70..SE,ST,XL

 1
44313 - ROTOR, VANE PUMP
44313-12010

TE70..SE,ST,XL

ﾏｰｸ無し

 1
44313-12020

TE70..SE,ST,XL

ﾏｰｸ 1,MARK 1

 1
44313-12050

TE70..SE,ST,XL

ﾏｰｸ 4,MARK 4

 1
44313-12030

TE70..SE,ST,XL

ﾏｰｸ 2,MARK 2

 1
44313-12040

TE70..SE,ST,XL

ﾏｰｸ 3,MARK 3

 1
44326 - RING, CAM(FOR VANE PUMP)
44325-12020

TE70..SE,ST,XL

ﾏｰｸ 1,MARK 1

 1
44325-12050

TE70..SE,ST,XL

ﾏｰｸ 4,MARK 4

 1
44325-12010

TE70..SE,ST,XL

ﾏｰｸ無し

 1
44325-12030

TE70..SE,ST,XL

ﾏｰｸ 2,MARK 2

 1
44325-12040

TE70..SE,ST,XL

ﾏｰｸ 3,MARK 3

 1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-05008

TE70..SE,ST,XL

長さ=25,外径=5.0

 2
44330 - VALVE ASSY, FLOW CONTROL
44330-12020

TE70..SE,ST,XL

ﾏｰｸ B,MARK B

 1
44330-12010

TE70..SE,ST,XL

ﾏｰｸ A,MARK A

 1
44330-12050

TE70..SE,ST,XL

ﾏｰｸ E,MARK E

 1
44330-12040

TE70..SE,ST,XL

ﾏｰｸ D,MARK D

 1
44330-12060

TE70..SE,ST,XL

ﾏｰｸ F,MARK F

 1
44330-12030

TE70..SE,ST,XL

ﾏｰｸ C,MARK C

 1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-12447

TE70..SE,ST,XL

 1
44330C - RING, SNAP(FOR FLOW CONTROL VALVE)
96151-01700

TE70..SE,ST,XL

 2
44330C - RING, SNAP(FOR FLOW CONTROL VALVE)
96151-01700

TE70..SE,ST,XL

 2
44342 - PLATE, VANE PUMP SIDE, REAR
44341-12010

TE70..SE,ST,XL

 1
44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR)
90301-53002

TE70..SE,ST,XL

 1
44342B - SPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)
90501-23014

TE70..SE,ST,XL

 1
44343 - SEAT, FLOW CONTROL SPRING
44343-12010

TE70..SE,ST,XL

 2
44343 - SEAT, FLOW CONTROL SPRING
44343-12010

TE70..SE,ST,XL

 2
44343A - RING, O(FOR FLOW CONTROL SPRING SEAT)
96710-01014

TE70..SE,ST,XL

 2
44343A - RING, O(FOR FLOW CONTROL SPRING SEAT)
96710-01014

TE70..SE,ST,XL

 2
44348 - PLATE, VANE PUMP
44345-12030

TE70..SE,ST,XL

長さ=14.993,L=14.992-14.994

 10
44345-12010

TE70..SE,ST,XL

長さ=14.997,L=14.996-14.998

 10
44345-12020

TE70..SE,ST,XL

長さ=14.995,L=14.994-14.996

 10
44345-12050

TE70..SE,ST,XL

長さ=14.989,L=14.988-14.990

 10
44345-12040

TE70..SE,ST,XL

長さ=14.991,L=14.990-14.992

 10
44362 - RESERVOIR, OIL(FOR VANE PUMP)
44306-12011

TE70..SE,ST,XL

 1
44306-12010

TE70..SE,ST,XL

 1
44362A - RING, O(FOR VANE PUMP OIL RESERVOIR)
96710-01013

TE70..SE,ST,XL

 1
Common parts
90119-10072
90170-12011
90201-12022
91611-40814
94511-01200
