TE70-FEHES (1979)

Toyota Sprinter

Production Aug 1979 - Aug 1981
Engine 13TU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8108)3FC ; (8108- )ATM

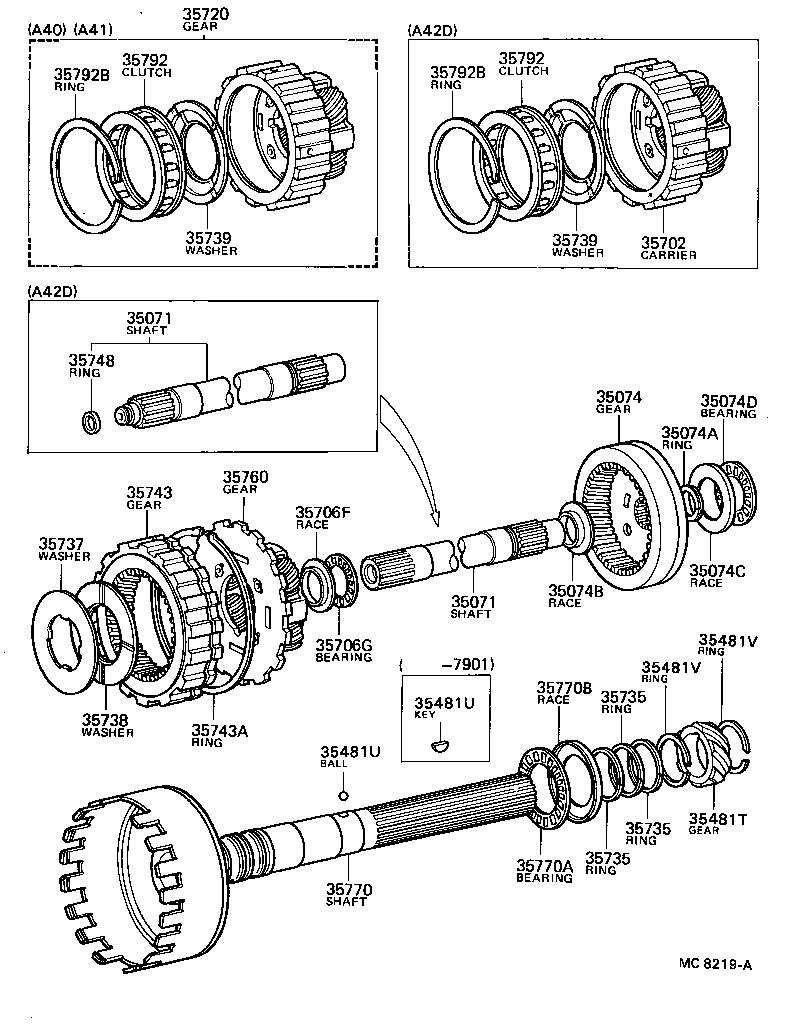

Click highlighted areas on diagram

diagram 35071 35071 35074 35074A 35074B 35074C 35074D 35481T 35481U 35481U 35481V 35481V 35702 35706F 35706G 35720 35735 35735 35735 35737 35738 35739 35739 35743 35743A 35748 35760 35770 35770A 35770B 35792 35792 35792B 35792B
Part # Description Qty Price
35071 - SHAFT SUB-ASSY, PLANETARY INTERMEDIATE
35708-22010

AE70,TE70..3FC

 1
35708-22011

AE70,TE70..3FC

 1
35071 - SHAFT SUB-ASSY, PLANETARY INTERMEDIATE
35708-22010

AE70,TE70..3FC

 1
35708-22011

AE70,TE70..3FC

 1
35074 - GEAR SUB-ASSY, REAR PLANETARY RING
35074-22010

AE70,TE70..3FC

 1
35074A - RING, SET (FOR REAR PLANETARY RING GEAR)
90522-20037

AE70,TE70..3FC

 1
35074B - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRON
35789-22050

AE70,TE70..3FC

 1
35074C - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR
35789-22020

AE70,TE70..3FC

 1
35074D - BEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)
90374-28014

AE70,TE70..3FC

 1
35481T - GEAR, SPEEDMETER DRIVE (ATM)
33481-26010

TE70..3FC

歯数=6,ﾏｰｸ 6X18−20,N=6

 1
35481U - KEY OR BALL, SPEEDMETER DRIVE GEAR (ATM)
90360-06004

AE70,TE70..3FC

 1
35481U - KEY OR BALL, SPEEDMETER DRIVE GEAR (ATM)
90360-06004

AE70,TE70..3FC

 1
35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
90520-28009

AE70,TE70..3FC

厚さ=1.50,外径=33.8

 2
35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
90520-28009

AE70,TE70..3FC

厚さ=1.50,外径=33.8

 2
35706F - RACE, THRUST BEARING (FOR SUN GEAR REAR)
35789-22010

AE70,TE70..3FC

 1
35706G - BEARING, THRUST (FOR SUN GEAR REAR)
90374-23012

AE70,TE70..3FC

 1
35720 - GEAR ASSY, FRONT PLANETARY
35720-22012

AE70,TE70..3FC

 1
35720-22011

AE70,TE70..3FC

 1
35735 - RING, PLANETARY OUTPUT SNAP
35735-22010

AE70,TE70..3FC

 3
35735 - RING, PLANETARY OUTPUT SNAP
35735-22010

AE70,TE70..3FC

 3
35735 - RING, PLANETARY OUTPUT SNAP
35735-22010

AE70,TE70..3FC

 3
35737 - WASHER, PLANETARY CARRIER THRUST
35737-22010

AE70,TE70..3FC

 1
35738 - WASHER, PLANETARY CARRIER THRUST, NO.2
35738-22010

AE70,TE70..3FC

 1
35739 - WASHER, PLANETARY CARRIER THRUST, NO.3
35739-22011

AE70,TE70..3FC

 1
35739 - WASHER, PLANETARY CARRIER THRUST, NO.3
35739-22011

AE70,TE70..3FC

 1
35743 - GEAR, FRONT PLANETARY RING
35743-22010

AE70,TE70..3FC

 1
35743A - RING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)
90520-99121

AE70,TE70..3FC

 1
35760 - GEAR ASSY, REAR PLANETARY
35760-22011

AE70,TE70..3FC

 1
35760-22020

AE70,TE70..3FC

 1
35770 - SHAFT ASSY, OUTPUT
35770-22011

AE70,TE70..3FC

 1
35770A - BEARING, THRUST (FOR OUTPUT SHAFT)
90374-38013

AE70,TE70..3FC

 1
35770B - RACE, THRUST BEARING (FOR OUTPUT SHAFT)
35789-22040

AE70,TE70..3FC

 1
35792 - CLUTCH, 1 WAY, NO.2
35792-22020

AE70,TE70..3FC

 1
35792 - CLUTCH, 1 WAY, NO.2
35792-22020

AE70,TE70..3FC

 1
35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
90521-79148

AE70,TE70..3FC

 1
35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
90521-79148

AE70,TE70..3FC

 1
