TE70-FEHES (1979)

Toyota Sprinter

Production Aug 1979 - Aug 1981
Engine 13TU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7908- )13TU,2TGEU

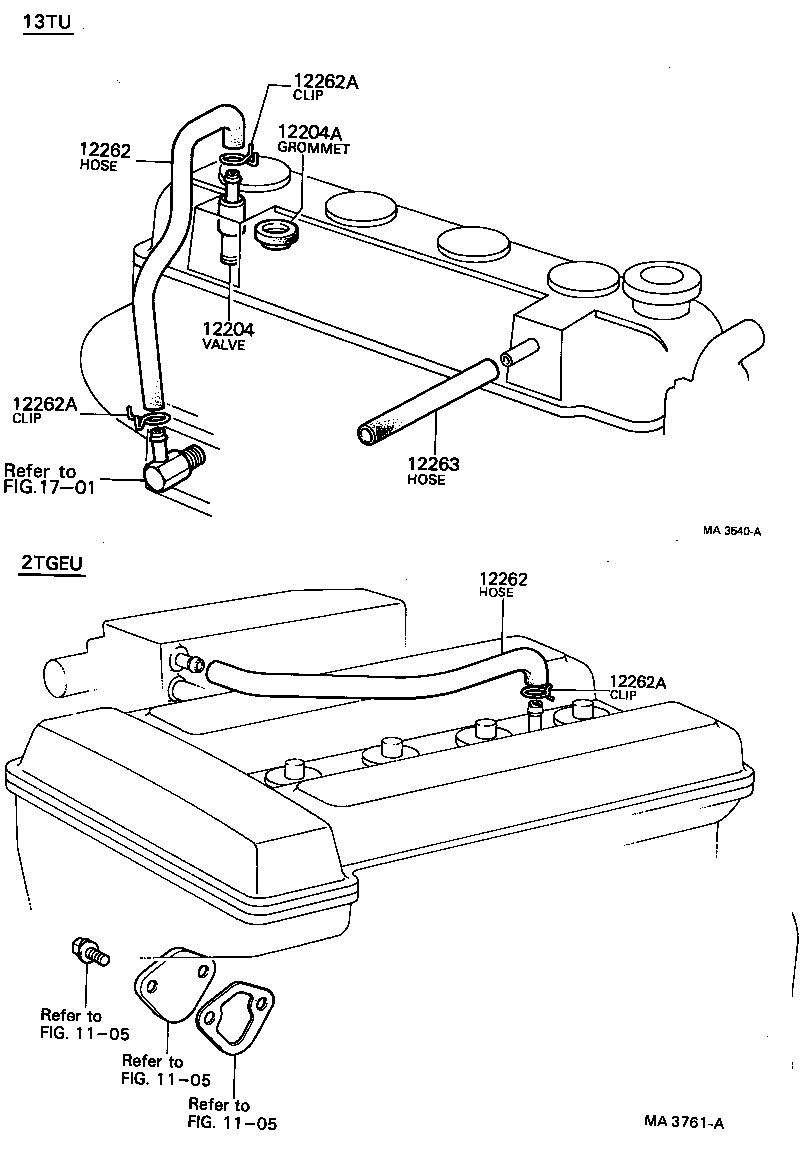

Click highlighted areas on diagram

MA3540A,MA3761A

diagram 1105 1105 1105 12204 12204A 12262 12262 12262A 12262A 12262A 12263 1701
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-15020

13TU..TE70

 1
12204-28010

13TU..TE70

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18180

13TU..TE70

 1
12262 - HOSE, VENTILATION, NO.2
12261-25012

13TU..TE70

 1
12262 - HOSE, VENTILATION, NO.2
12261-25012

13TU..TE70

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16010

13TU..TE70

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16010

13TU..TE70

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16010

13TU..TE70

 2
12263 - HOSE, VENTILATION, NO.3
90445-20012

13TU..TE70

 1
Linked diagrams
1105
1701
