TE70-FCMXS (1979)
Toyota Sprinter
Production
Aug 1979
-
Aug 1981
Engine
13TU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7908-8108)13TU

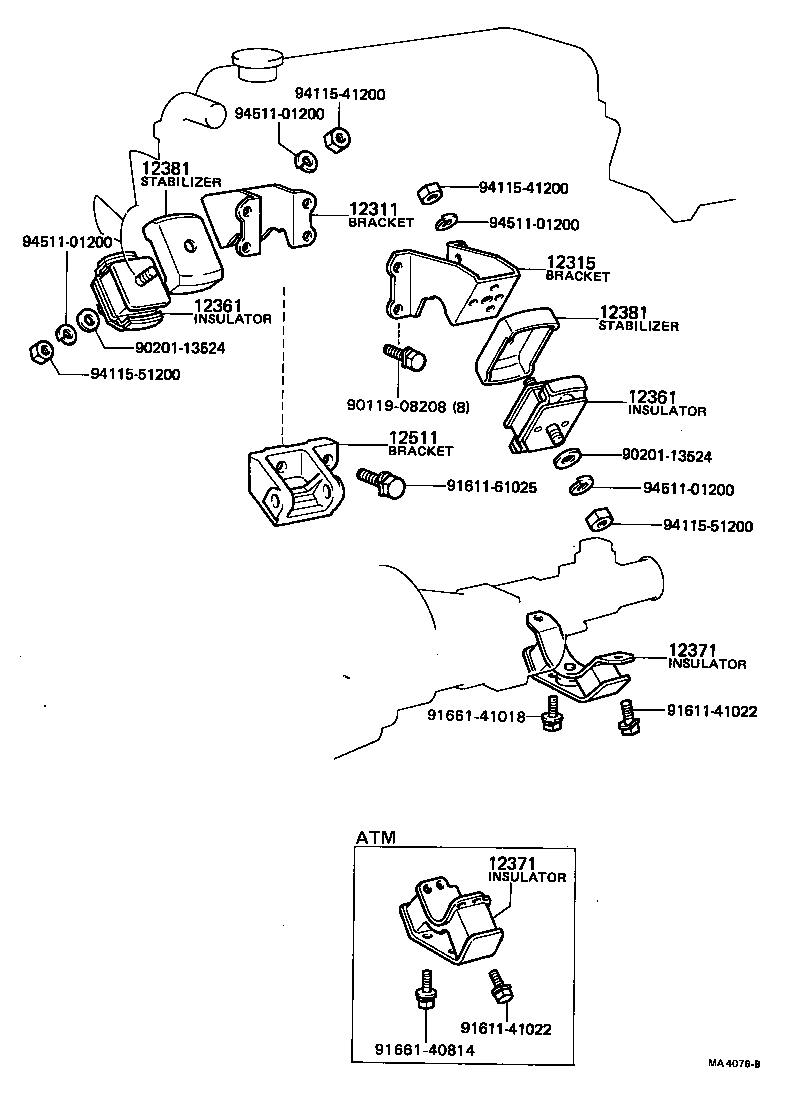

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-25060 |
13TU..TE70 |
1 | ||
| 12311-25061 |
13TU..TE70 |
1 | ||
| 12311-26060 |
13TU..TE70 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12312-25050 |
13TU..TE70 |
1 | ||
| 12312-25060 |
13TU..TE70 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-18020 |
13TU..TE70 TOYOGOMU |
2 | ||
| 12361-18010 |
13TU..TE70 MARUYASU,TOKAIGOMU |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-18020 |
13TU..TE70 TOYOGOMU |
2 | ||
| 12361-18010 |
13TU..TE70 MARUYASU,TOKAIGOMU |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-33010 |
13TU,2TGEU..TE7#..MTM |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-33010 |
13TU,2TGEU..TE7#..MTM |
1 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-18010 |
13TU..TE70 LH,MARUYASU,TOKAIGOMU |
1 | ||
| 12381-18020 |
13TU..TE70 LH,TOKOGOMU |
1 | ||
| 12381-18030 |
13TU..TE70 RH,MARUYASU,TOKAIGOMU |
1 | ||
| 12381-18040 |
13TU..TE70 RH,TOYOGOMU |
1 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-18010 |
13TU..TE70 LH,MARUYASU,TOKAIGOMU |
1 | ||
| 12381-18020 |
13TU..TE70 LH,TOKOGOMU |
1 | ||
| 12381-18030 |
13TU..TE70 RH,MARUYASU,TOKAIGOMU |
1 | ||
| 12381-18040 |
13TU..TE70 RH,TOYOGOMU |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-25010 |
13TU,2TGEU..TE7# |
1 | ||
| Common parts | ||||
| 90119-08208 | ||||
| 90201-13524 | ||||
| 91611-41022 | ||||
| 91611-61025 | ||||
| 91661-40814 | ||||
| 91661-41018 | ||||
| 94115-41200 | ||||
| 94115-51200 | ||||
| 94511-01200 | ||||
