KE70-FSMNS (1979)
Toyota Sprinter
(7903- )4KU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
13TU,3AU,4KU,2TGEU..AE70,KE70,TE7# 12V 1.0KW |
1 | ||
| 28011-22020 |
4KU..KE70 12V 0.6KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-13010 |
4KU..KE70 12V 1.0KW,12V 1.0KW,REDUCTION TYPE |
1 | ||
| 28100-24031 |
4KU..KE70 12V 0.6KW,12V 0.6KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-24010 |
4KU..KE70 12V 0.6KW |
1 | ||
| 28110-13010 |
4KU..KE70 12V 1.0KW |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 28111-51011 |
4KU..KE70 12V 0.6KW |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-41011 |
4KU..KE70 12V 0.6KW |
1 | ||
| 28114 - PIN, STARTER DRIVE LEVER SET | ||||
| 28114-25010 |
4KU..KE70 12V 0.6KW |
1 | ||
| 28117 - RUBBER(FOR STARTER YOKE) | ||||
| 28117-41013 |
4KU..KE70 12V 0.6KW |
1 | ||
| 28118 - PLATE(FOR STARTER YOKE) | ||||
| 28118-41013 |
4KU..KE70 12V 0.6KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26070 |
13TU,3AU,4KU..AE70,KE70,TE70 12V 1.0KW |
1 | ||
| 28120-24030 |
4KU..KE70 12V 0.6KW |
1 | ||
| 28121 - COIL, STARTER FIELD | ||||
| 28121-22011 |
4KU..KE70 12V 0.6KW |
1 | ||
| 28123 - CORE, STARTER POLE | ||||
| 28123-10011 |
4KU..KE70 12V 0.6KW |
4 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-21011 |
4KU..KE70 12V 0.6KW |
1 | ||
| 28131 - BUSH, COMMUTATOR END FRAME | ||||
| 28131-20010 |
4KU..KE70 STD,12V 0.6KW |
1 | ||
| 90099-10039 |
4KU..KE70 U/S 0.3,12V 0.6KW |
1 | ||
| 90099-10040 |
4KU..KE70 U/S 0.5,12V 0.6KW |
1 | ||
| 28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING) | ||||
| 28166-41011 |
4KU..KE70 12V 0.6KW |
1 | ||
| 28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING) | ||||
| 28166-41011 |
4KU..KE70 12V 0.6KW |
1 | ||
| 28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING) | ||||
| 28166-41011 |
4KU..KE70 12V 0.6KW |
1 | ||
| 28133 - COVER, BEARING(FOR END FRAME) | ||||
| 28132-41011 |
4KU..KE70 12V 0.6KW |
1 | ||
| 28136 - PLATE, STARTER LOCK | ||||
| 28136-41011 |
4KU..KE70 12V 0.6KW |
1 | ||
| 28138 - RUBBER(FOR STARTER BEARING COVER) | ||||
| 28138-41011 |
4KU..KE70 12V 0.6KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
13TU,3AU,4KU..AE70,KE70,TE70 12V 1.0KW |
1 | ||
| 28140-22011 |
4KU..KE70 12V 0.6KW |
1 | ||
| 28142 - BRUSH, STARTER | ||||
| 28142-10011 |
4KU..KE70 12V 0.6KW |
2 | ||
| 28142 - BRUSH, STARTER | ||||
| 28142-10011 |
4KU..KE70 12V 0.6KW |
2 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-40010 |
4KU..KE70 12V 0.6KW |
4 | ||
| 90099-17112 |
13TU,3AU,1C,4KU,2TGEU..AE70,CE70,KE70,TE7# 12V 1.0KW,1.4KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-13010 |
4KU..KE70 12V 1.0KW |
1 | ||
| 28150-24060 |
4KU..KE70 12V 0.6KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26070 |
13TU,3AU,4KU..AE70,KE70,TE70 12V 1.0KW |
1 | ||
| 28160-22011 |
4KU..KE70 12V 0.6KW |
1 | ||
| 28162 - SPRING, STARTER BRAKE | ||||
| 28162-41011 |
4KU..KE70 12V 0.6KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-40011 |
4KU..KE70 12V 0.6KW |
1 | ||
| 28163A - RING, SNAP(FOR STARTER PINION STOP NUT) | ||||
| 90099-07047 |
4KU..KE70 12V 0.6KW |
1 | ||
| 28199 - COVER, STARTER | ||||
| 28199-26070 |
4KU,2TGEU..KE70,TE71 12V 1.0KW |
1 | ||
| 28199-26070 |
4KU..KE70 12V 1.0KW |
1 | ||
| 28199-13010 |
4KU..KE70 12V 1.0KW |
1 | ||
| 28199-24030 |
4KU..KE70 12V 0.6KW |
1 | ||
| Common parts | ||||
| 90093-00518 | ||||
| 90094-00502 | ||||
| 90099-00102 | ||||
| 90099-00111 | ||||
| 90099-00879 | ||||
| 90099-01090 | ||||
| 90099-02169 | ||||
| 90099-04269 | ||||
| 90099-04272 | ||||
| 90099-05129 | ||||
| 90179-08146 | ||||
| 91611-41035 | ||||
| 94110-40800 | ||||
| 94115-40500 | ||||
| 94511-00500 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||

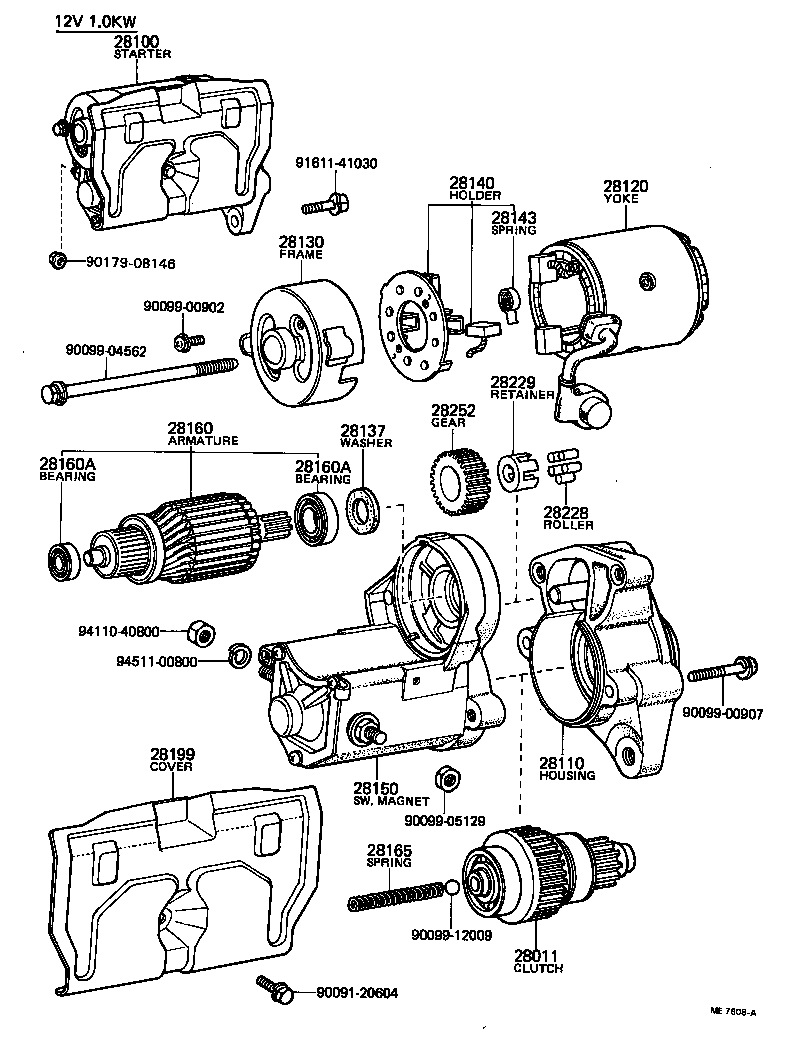

(7903- )4KU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
13TU,3AU,4KU,2TGEU..AE70,KE70,TE7# 12V 1.0KW |
1 | ||
| 28011-22020 |
4KU..KE70 12V 0.6KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-13010 |
4KU..KE70 12V 1.0KW,12V 1.0KW,REDUCTION TYPE |
1 | ||
| 28100-24031 |
4KU..KE70 12V 0.6KW,12V 0.6KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-24010 |
4KU..KE70 12V 0.6KW |
1 | ||
| 28110-13010 |
4KU..KE70 12V 1.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26070 |
13TU,3AU,4KU..AE70,KE70,TE70 12V 1.0KW |
1 | ||
| 28120-24030 |
4KU..KE70 12V 0.6KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-21011 |
4KU..KE70 12V 0.6KW |
1 | ||
| 28137 - WASHER, FELT, STARTER | ||||
| 90099-02323 |
13TU,3AU,4KU..AE70,KE70,TE70 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
13TU,3AU,4KU..AE70,KE70,TE70 12V 1.0KW |
1 | ||
| 28140-22011 |
4KU..KE70 12V 0.6KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-40010 |
4KU..KE70 12V 0.6KW |
4 | ||
| 90099-17112 |
13TU,3AU,1C,4KU,2TGEU..AE70,CE70,KE70,TE7# 12V 1.0KW,1.4KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-13010 |
4KU..KE70 12V 1.0KW |
1 | ||
| 28150-24060 |
4KU..KE70 12V 0.6KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26070 |
13TU,3AU,4KU..AE70,KE70,TE70 12V 1.0KW |
1 | ||
| 28160-22011 |
4KU..KE70 12V 0.6KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10113 |
13TU,3AU,4KU..AE70,KE70,TE70 12V 1.0KW,DRIVE HOUSING END |
1 | ||
| 28253-45020 |
13TU,3AU,1C,4KU,2TGEU..AE70,CE70,KE70,TE7# 12V 1.0KW,1.4KW END FRAME END |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10113 |
13TU,3AU,4KU..AE70,KE70,TE70 12V 1.0KW,DRIVE HOUSING END |
1 | ||
| 28253-45020 |
13TU,3AU,1C,4KU,2TGEU..AE70,CE70,KE70,TE7# 12V 1.0KW,1.4KW END FRAME END |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
13TU,3AU,1C,4KU,2TGEU..AE70,CE70,KE70,TE7# 12V 1.0KW,1.4KW,2.0KW |
1 | ||
| 28199 - COVER, STARTER | ||||
| 28199-26070 |
4KU,2TGEU..KE70,TE71 12V 1.0KW |
1 | ||
| 28199-26070 |
4KU..KE70 12V 1.0KW |
1 | ||
| 28199-13010 |
4KU..KE70 12V 1.0KW |
1 | ||
| 28199-24030 |
4KU..KE70 12V 0.6KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
13TU,3AU,1C,4KU,2TGEU..AE70,CE70,KE70,TE7# 12V 1.0KW,1.4KW,2.0KW |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
13TU,3AU,1C,4KU,2TGEU..AE70,CE70,KE70,TE7# 12V 1.0KW,1.4KW,2.0KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
13TU,3AU,4KU,2TGEU..AE70,KE70,TE7# 12V 1.0KW |
1 | ||
| Common parts | ||||
| 90091-20604 | ||||
| 90099-00902 | ||||
| 90099-00907 | ||||
| 90099-04562 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90179-08146 | ||||
| 91611-41030 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
