KE70-FSMES (1981)

Toyota Sprinter

Production Aug 1981 - Apr 1983
Engine 4KU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )HT

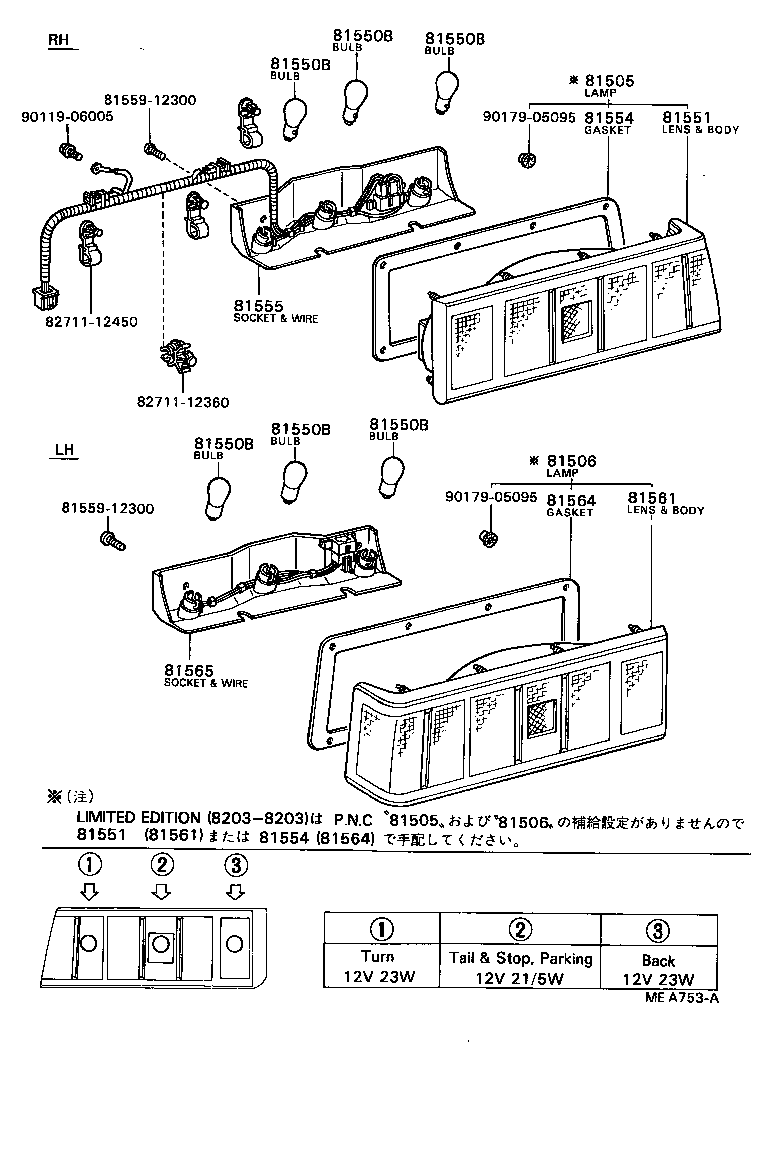

Click highlighted areas on diagram

diagram 81505 81506 81550B 81550B 81550B 81550B 81550B 81550B 81551 81554 81555 8155912300 8155912300 81561 81564 81565 8271112360 8271112450 9011906005 9017905095 9017905095
Part # Description Qty Price
81505 - LAMP SUB-ASSY, REAR COMBINATION, RH
81505-19585

AE70,KE70,TE71..HT

EXCL/LIMITED EDITION

 1
81506 - LAMP SUB-ASSY, REAR COMBINATION, LH
81506-19445

AE70,KE70,TE71..HT

EXCL/LIMITED EDITION

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AE70,CE70,KE70,TE7#

12V 21/5W,12V 21/5W

 2
99132-11230

AE70,CE70,KE70,TE7#

12V 23W,12V 23W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AE70,CE70,KE70,TE7#

12V 21/5W,12V 21/5W

 2
99132-11230

AE70,CE70,KE70,TE7#

12V 23W,12V 23W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AE70,CE70,KE70,TE7#

12V 21/5W,12V 21/5W

 2
99132-11230

AE70,CE70,KE70,TE7#

12V 23W,12V 23W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AE70,CE70,KE70,TE7#

12V 21/5W,12V 21/5W

 2
99132-11230

AE70,CE70,KE70,TE7#

12V 23W,12V 23W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AE70,CE70,KE70,TE7#

12V 21/5W,12V 21/5W

 2
99132-11230

AE70,CE70,KE70,TE7#

12V 23W,12V 23W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AE70,CE70,KE70,TE7#

12V 21/5W,12V 21/5W

 2
99132-11230

AE70,CE70,KE70,TE7#

12V 23W,12V 23W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-1A110

AE70,KE70,TE71..HT

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-12530

AE70,KE70,TE7#..HT

 1
81554-1A110

AE70,KE70,TE71..HT

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-12550

AE70,KE70,TE7#..HT

 1
81555-1A110

AE70,KE70,TE71..HT

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-1A110

AE70,KE70,TE71..HT

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81554-12530

AE70,KE70,TE7#..HT

 1
81554-1A110

AE70,KE70,TE71..HT

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-1A110

AE70,KE70,TE71..HT

 1
81565-12550

AE70,KE70,TE7#..HT

 1
Common parts
81559-12300
82711-12360
82711-12450
90119-06005
90179-05095
