KE70-FSKES (1981)

Toyota Sprinter

Production Aug 1981 - Apr 1983
Engine 4KU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )4KU

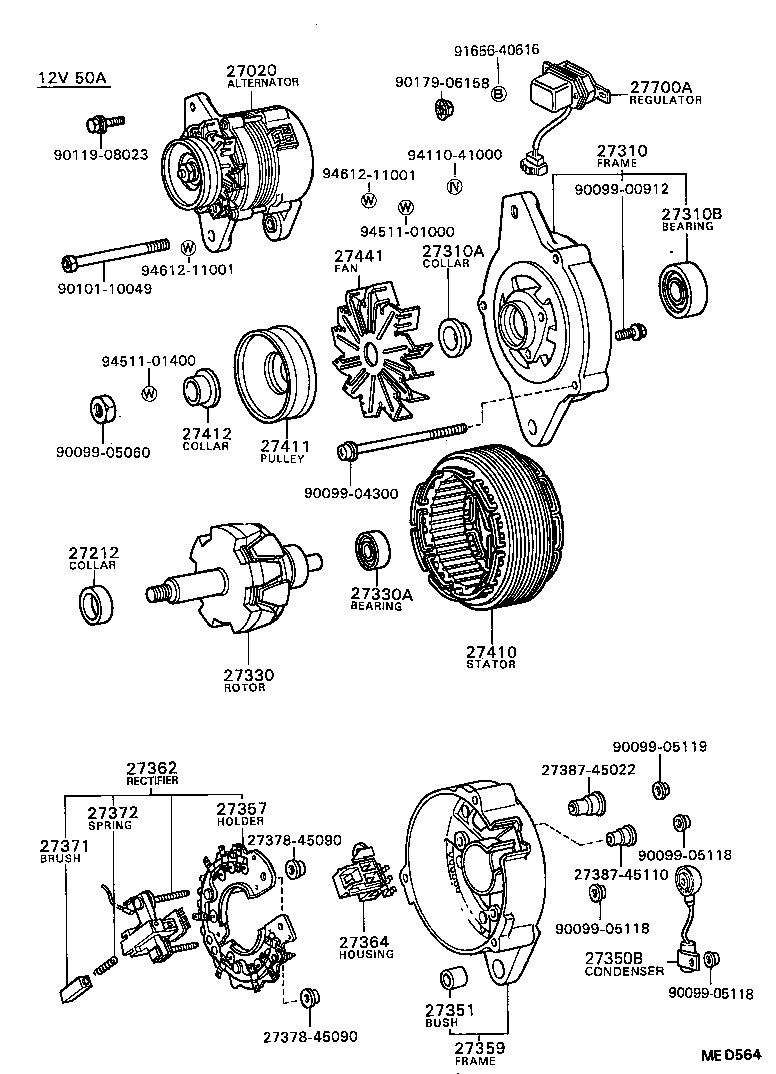

Click highlighted areas on diagram

diagram 27020 27212 27310 27310A 27310B 27330 27330A 27350B 27351 27357 27359 27362 27364 27371 27372 2737845090 2737845090 2738745022 2738745110 27410 27411 27412 27441 27700A 9009900912 9009904300 9009905060 9009905118 9009905118 9009905118 9009905119 9010110049 9011908023 9017906158 9165640616 9411041000 9451101000 9451101400 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-13110

4KU..KE70

12V 50A,12V 50A

 1
27020-24100

4KU..KE70

12V 50A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-45070

3AU,4KU,2TGEU..AE70,KE70,TE71

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-24071

4KU..KE70

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

13TU,3AU,4KU,2TGEU..AE70,KE70,TE7#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10114

3AU,4KU..AE70,KE70

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-45070

4KU..KE70

 1
27330-45070

13TU,3AU,4KU..AE70,KE70,TE70

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10111

3AU,4KU..AE70,KE70

 1
27350B - CONDENSER, ALTERNATOR
90099-52065

3AU,4KU..AE70,KE70

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

13TU,3AU,4KU,2TGEU..AE70,KE70,TE7#

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-13110

4KU..KE70

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-24071

4KU..KE70

 1
27359-13110

4KU..KE70

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-13110

4KU..KE70

 1
27364 - HOUSING, CONNECTOR MALE
27364-13110

4KU..KE70

 1
27371 - BRUSH, ALTERNATOR
27371-44070

13TU,4KU,2TGEU..KE70,TE7#

 2
27372 - SPRING, ALTERNATOR BRUSH
90099-17114

13TU,4KU,2TGEU..KE70,TE7#

 2
27410 - STATOR ASSY, ALTERNATOR
27410-41080

4KU,2TGEU..KE70,TE71

 1
27410-34050

3AU,4KU..AE70,KE70

 1
27411 - PULLEY, ALTERNATOR
27411-26111

3AU,4KU,2TGEU..AE70,KE70,TE71

 1
27411-31042

4KU..KE70

 1
27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27412-44030

3AU,4KU..AE70,KE70

 1
27412-44030

3AU,4KU,2TGEU..AE70,KE70,TE71

 1
27441 - FAN, ALTERNATOR
27441-34030

13TU,3AU,4KU..AE70,KE70,TE70

 1
27700A - REGULATOR ASSY, GENERATOR
27700-15011

3AU,1C,4KU..AE70,CE70,KE70

 1
27700-15010

13TU,3AU,4KU..AE70,KE70,TE70

 1
Common parts
27378-45090
27387-45022
27387-45110
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10049
90119-08023
90179-06158
91656-40616
94110-41000
94511-01000
94511-01400
94612-11001
