KE70-FSKDS (1979)
Toyota Sprinter
Production
Mar 1979
-
Aug 1981
Engine
4KU
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7903-8108)KE70 ; (8108- )KE70..MTM

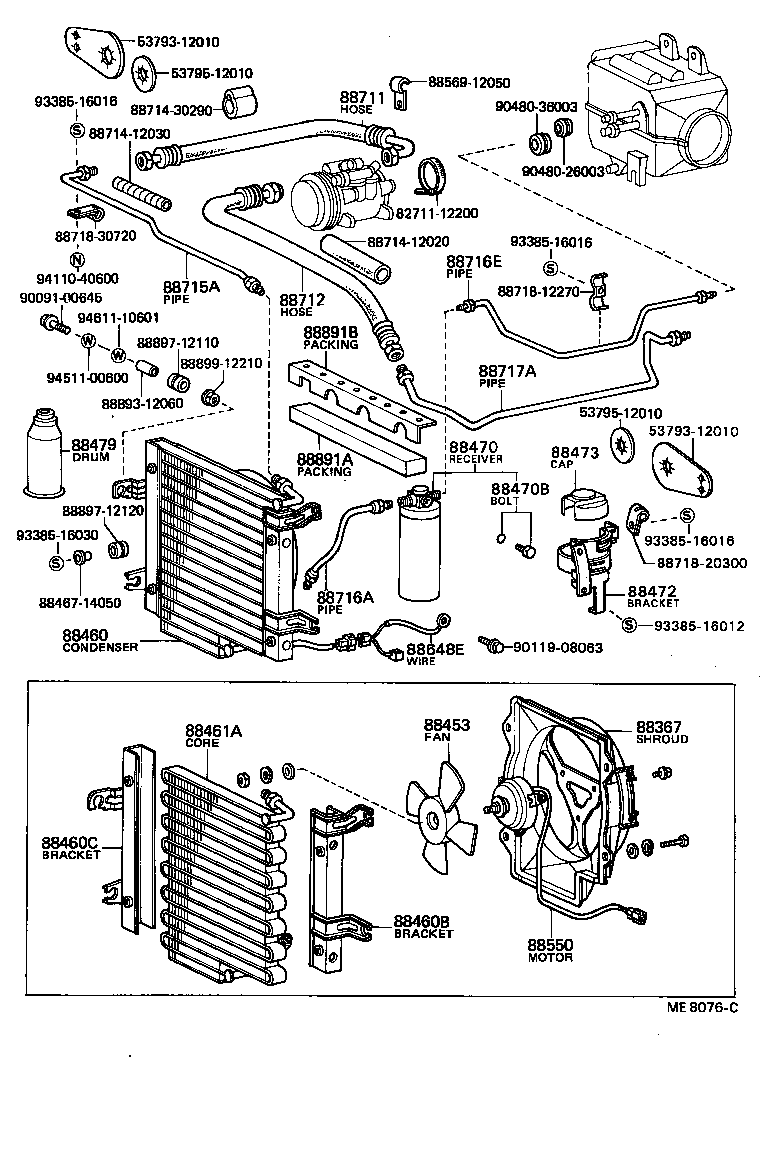

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88367 - SHROUD, COOLER BLOWER FAN | ||||
| 88454-12040 |
KE70 |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-16010 |
KE70 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-12110 |
KE70 |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-12010 |
KE70 |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-12020 |
KE70 |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-12010 |
KE70 |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-12060 |
KE70 |
1 | ||
| 88470-12061 |
KE70 |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 90099-04579 |
AE70,CE70,KE70,TE7# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-12180 |
KE70 |
1 | ||
| 88473 - CAP, COOLER RECEIVER TANK | ||||
| 88894-12111 |
KE70 |
1 | ||
| 88894-12110 |
KE70 |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
AE70,CE70,KE70,TE7# 400G |
2 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-10020 |
KE70 |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-12140 |
KE70 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-12140 |
KE70 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-12290 |
KE70 |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-12120 |
KE70 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-12430 |
KE70 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-12440 |
KE70 |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-12110 |
KE70 |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 53291-12030 |
KE70 |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 53381-12100 |
AE70,KE70,TE71 |
1 | ||
| 53381-12110 |
AE70,KE70,TE71 |
1 | ||
| Common parts | ||||
| 53793-12010 | ||||
| 53795-12010 | ||||
| 82711-12200 | ||||
| 88467-14050 | ||||
| 88569-12050 | ||||
| 88714-12020 | ||||
| 88714-12030 | ||||
| 88714-30290 | ||||
| 88718-12270 | ||||
| 88718-20300 | ||||
| 88718-30720 | ||||
| 88893-12060 | ||||
| 88897-12110 | ||||
| 88897-12120 | ||||
| 88899-12210 | ||||
| 90091-00645 | ||||
| 90119-08063 | ||||
| 90480-26003 | ||||
| 90480-36003 | ||||
| 93385-16012 | ||||
| 93385-16016 | ||||
| 93385-16030 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
| 94611-10601 | ||||
