KE70-FLMES (1981)

Toyota Sprinter

Production Aug 1981 - Apr 1983
Engine 4KU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

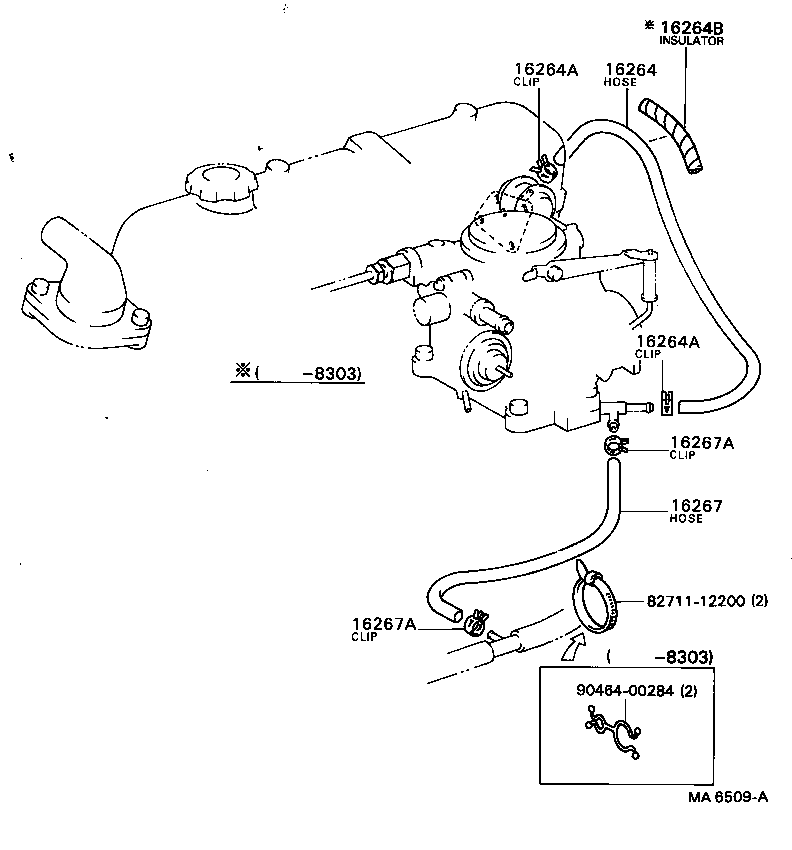

ILLUST NO. 2 OF 2(8301- )4KU

Click highlighted areas on diagram

diagram 16264 16264A 16264A 16264B 16267 16267A 16267A 8271112200 9046400284
Part # Description Qty Price
16264 - HOSE, WATER BY-PASS, NO.2
99553-00460

4KU..KE70

 1
90447-12041

4KU..KE70

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-11009

4KU..KE70

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-11009

4KU..KE70

 2
16264B - INSULATOR(FOR WATER BY-PASS HOSE)
88714-10010

4KU..KE70

 1
16267 - HOSE, WATER BY-PASS, NO.3
99553-00350

4KU..KE70

 1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-11009

4KU..KE70

 2
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-11009

4KU..KE70

 2
Common parts
82711-12200
90464-00284
