KE70-FLKNS (1979)
Toyota Sprinter
ILLUST NO. 1 OF 3(7903-8108)
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 3(7903-8108)HT,SED ; (8108- )CE70,TE71..4D ; (8108- )AE70,KE70..SE..4D ; (8108
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-1A33001 |
AE70,KE70..LB..XL FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1A33006 |
AE70,KE70..LB..XL FB,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1A33004 |
AE70,KE70..LB..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1A32204 |
AE70,KE70..LB..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1A32206 |
AE70,KE70..LB..XL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1A32203 |
AE70,KE70..LB..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71075-1A32306 |
AE70,KE70..LB..XL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1A32303 |
AE70,KE70..LB..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71075-1A32304 |
AE70,KE70..LB..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-1A33001 |
AE70,KE70..LB..XL FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1A33006 |
AE70,KE70..LB..XL FB,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1A33004 |
AE70,KE70..LB..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1A32204 |
AE70,KE70..LB..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1A32206 |
AE70,KE70..LB..XL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1A32203 |
AE70,KE70..LB..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71075-1A32306 |
AE70,KE70..LB..XL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1A32303 |
AE70,KE70..LB..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71075-1A32304 |
AE70,KE70..LB..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-1A19004 |
AE70,KE70..LB..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1A19001 |
AE70,KE70..LB..XL FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1A19006 |
AE70,KE70..LB..XL FB,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1A18203 |
AE70,KE70..LB..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71460-1A18204 |
AE70,KE70..LB..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1A18206 |
AE70,KE70..LB..XL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1A18304 |
AE70,KE70..LB..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1A18303 |
AE70,KE70..LB..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71460-1A18306 |
AE70,KE70..LB..XL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-1A19004 |
AE70,KE70..LB..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1A19001 |
AE70,KE70..LB..XL FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1A19006 |
AE70,KE70..LB..XL FB,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1A18203 |
AE70,KE70..LB..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71460-1A18204 |
AE70,KE70..LB..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1A18206 |
AE70,KE70..LB..XL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1A18304 |
AE70,KE70..LB..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1A18303 |
AE70,KE70..LB..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71460-1A18306 |
AE70,KE70..LB..XL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71460T - PAD SUB-ASSY, REAR SEAT CUSHION, NO.1 | ||||
| 71611-12330 |
AE70,KE70,TE7#..LB |
1 | ||
| 71611-12331 |
AE70,KE70,TE71..LB |
1 | ||
| 71460T - PAD SUB-ASSY, REAR SEAT CUSHION, NO.1 | ||||
| 71611-12330 |
AE70,KE70,TE7#..LB |
1 | ||
| 71611-12331 |
AE70,KE70,TE71..LB |
1 | ||
| 71460V - PAD, REAR SEAT CUSHION SILENCER, NO.3 | ||||
| 71621-12240 |
AE70,KE70,TE7#..HT,LB,SED |
2 | ||
| 71621-12240 |
AE70,KE70,TE71..HT,LB |
2 | ||
| 71460V - PAD, REAR SEAT CUSHION SILENCER, NO.3 | ||||
| 71621-12240 |
AE70,KE70,TE7#..HT,LB,SED |
2 | ||
| 71621-12240 |
AE70,KE70,TE71..HT,LB |
2 | ||
| 71460V - PAD, REAR SEAT CUSHION SILENCER, NO.3 | ||||
| 71621-12240 |
AE70,KE70,TE7#..HT,LB,SED |
2 | ||
| 71621-12240 |
AE70,KE70,TE71..HT,LB |
2 | ||
| 71460W - PAD, REAR SEAT CUSHION SILENCER, NO.4 | ||||
| 71622-12070 |
AE70,KE70,TE7#..HT,LB |
2 | ||
| 71460W - PAD, REAR SEAT CUSHION SILENCER, NO.4 | ||||
| 71622-12070 |
AE70,KE70,TE7#..HT,LB |
2 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-12190 |
AE70,KE70,TE7#..HT,LB |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-12190 |
AE70,KE70,TE7#..HT,LB |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE70,CE70,KE70,TE7# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE70,CE70,KE70,TE7# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE70,CE70,KE70,TE7# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-22010 |
AE70,KE70,TE7# |
2 | ||
| 72693-12010 |
AE70,CE70,KE70,TE71 |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-22010 |
AE70,KE70,TE7# |
2 | ||
| 72693-12010 |
AE70,CE70,KE70,TE71 |
2 | ||
| Common parts | ||||
| 90119-06172 | ||||

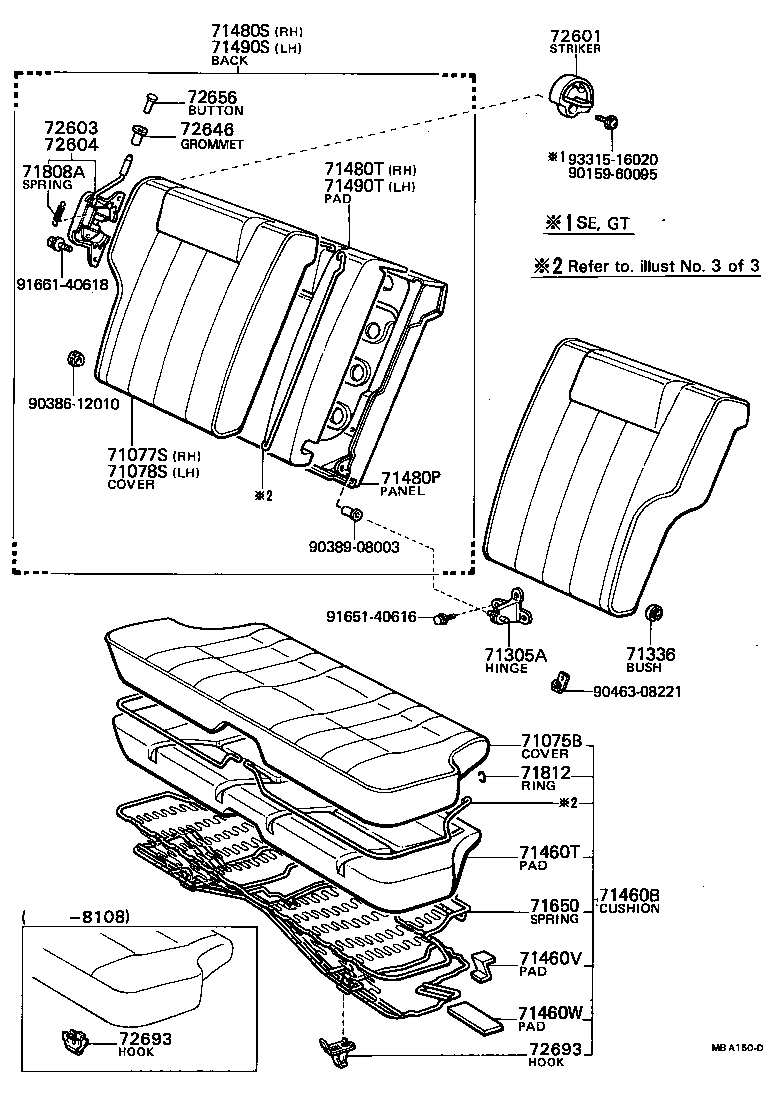

ILLUST NO. 2 OF 3(7903- )LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-1A33001 |
AE70,KE70..LB..XL FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1A33006 |
AE70,KE70..LB..XL FB,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1A33004 |
AE70,KE70..LB..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1A32204 |
AE70,KE70..LB..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1A32206 |
AE70,KE70..LB..XL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1A32203 |
AE70,KE70..LB..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71075-1A32306 |
AE70,KE70..LB..XL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1A32303 |
AE70,KE70..LB..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71075-1A32304 |
AE70,KE70..LB..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-1A67001 |
AE70,KE70..LB..XL FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71077-1A67006 |
AE70,KE70..LB..XL FB,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1A67004 |
AE70,KE70..LB..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1A66104 |
AE70,KE70..LB..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1A66103 |
AE70,KE70..LB..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71077-1A66106 |
AE70,KE70..LB..XL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1A66206 |
AE70,KE70..LB..XL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1A66204 |
AE70,KE70..LB..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1A66203 |
AE70,KE70..LB..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-1233004 |
AE70,KE70..LB..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1233001 |
AE70,KE70..LB..XL FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71078-1233006 |
AE70,KE70..LB..XL FB,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71078-1232104 |
AE70,KE70..LB..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1232106 |
AE70,KE70..LB..XL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71078-1232103 |
AE70,KE70..LB..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71078-1232203 |
AE70,KE70..LB..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71078-1232204 |
AE70,KE70..LB..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1232206 |
AE70,KE70..LB..XL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-12020 |
AE70,KE70,TE7#..CP,LB |
1 | ||
| 71336 - BUSH OR SPACER, REAR SEAT BACK HINGE | ||||
| 71332-12010 |
AE70,KE70,TE7#..CP,LB |
2 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-1A19004 |
AE70,KE70..LB..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1A19001 |
AE70,KE70..LB..XL FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1A19006 |
AE70,KE70..LB..XL FB,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1A18203 |
AE70,KE70..LB..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71460-1A18204 |
AE70,KE70..LB..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1A18206 |
AE70,KE70..LB..XL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1A18304 |
AE70,KE70..LB..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1A18303 |
AE70,KE70..LB..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71460-1A18306 |
AE70,KE70..LB..XL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71460T - PAD SUB-ASSY, REAR SEAT CUSHION, NO.1 | ||||
| 71611-12330 |
AE70,KE70,TE7#..LB |
1 | ||
| 71611-12331 |
AE70,KE70,TE71..LB |
1 | ||
| 71460V - PAD, REAR SEAT CUSHION SILENCER, NO.3 | ||||
| 71621-12240 |
AE70,KE70,TE7#..HT,LB,SED |
2 | ||
| 71621-12240 |
AE70,KE70,TE71..HT,LB |
2 | ||
| 71460W - PAD, REAR SEAT CUSHION SILENCER, NO.4 | ||||
| 71622-12070 |
AE70,KE70,TE7#..HT,LB |
2 | ||
| 71480P - PANEL SUB-ASSY, REAR SEAT BACK | ||||
| 71202-12040 |
AE70,KE70,TE71..(CP,LB)..(GT,SE,SR,SX,TRR,XL) RH,SEPARATE SEAT |
1 | ||
| 71202-12040 |
AE70,KE70,TE7#..CP,LB RH,SEPARATE SEAT |
1 | ||
| 71203-12020 |
AE70,KE70,TE71..(CP,LB)..(GT,SE,SR,SX,TRR,XL) LH,SEPARATE |
1 | ||
| 71203-12020 |
AE70,KE70,TE7#..CP,LB LH,SEPARATE |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-1A71001 |
AE70,KE70..LB..XL FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71480-1A71004 |
AE70,KE70..LB..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1A71006 |
AE70,KE70..LB..XL FB,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1A70104 |
AE70,KE70..LB..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1A70106 |
AE70,KE70..LB..XL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1A70103 |
AE70,KE70..LB..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71480-1A70203 |
AE70,KE70..LB..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71480-1A70204 |
AE70,KE70..LB..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1A70206 |
AE70,KE70..LB..XL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71480T - PAD, REAR SEAT BACK, RH (FOR SEPARATE SEAT) | ||||
| 71651-12310 |
AE70,KE70,TE71..(CP,LB)..(GT,SE,SR,SX,TRR,XL) |
1 | ||
| 71651-12310 |
AE70,KE70,TE7#..CP,LB |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-1234001 |
AE70,KE70..LB..XL FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71490-1233103 |
AE70,KE70..LB..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71490-1234006 |
AE70,KE70..LB..XL FB,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71490-1234004 |
AE70,KE70..LB..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71490-1233104 |
AE70,KE70..LB..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71490-1233106 |
AE70,KE70..LB..XL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71490-1233203 |
AE70,KE70..LB..XL FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71490-1233206 |
AE70,KE70..LB..XL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71490-1233204 |
AE70,KE70..LB..XL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71490T - PAD, REAR SEAT BACK, LH (FOR SEPARATE SEAT) | ||||
| 71652-12180 |
AE70,KE70,TE71..(CP,LB)..(GT,SE,SR,SX,TRR,XL) |
1 | ||
| 71652-12180 |
AE70,KE70,TE7#..CP,LB |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-12190 |
AE70,KE70,TE7#..HT,LB |
1 | ||
| 71808A - SPRING, REAR SEAT BACK STOPPER | ||||
| 90506-08003 |
AE70,KE70,TE71..(CP,LB)..(GT,SE,SR,SX,TRR,XL) |
2 | ||
| 90506-08003 |
AE70,KE70,TE7#..CP,LB |
2 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE70,CE70,KE70,TE7# |
1 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72602-12010 |
AE70,KE70,TE7#..(CP,LB)..(DX,SR,ST,TRR,XL) LH,SEPARATE SEAT |
1 | ||
| 72601-12030 |
AE70,KE70,TE71..(CP,LB)..(SR,SX,TRR,XL) RH,SEPARATE SEAT |
1 | ||
| 72601-12030 |
AE70,KE70,TE7#..(CP,LB)..(DX,SR,ST,TRR,XL) RH,SEPARATE SEAT |
1 | ||
| 72602-12010 |
AE70,KE70,TE71..(SR,SX,TRR,XL)..2D LH,SEPARATE SEAT |
1 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-12040 |
AE70,KE70,TE7#..CP,LB SEPARATE SEAT |
1 | ||
| 72630-12040 |
AE70,KE70,TE71..(CP,LB)..(GT,SE,SR,SX,TRR,XL) SEPARATE SEAT |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-12040 |
AE70,KE70,TE7#..CP,LB SEPARATE SEAT |
1 | ||
| 72640-12040 |
AE70,KE70,TE71..(CP,LB)..(GT,SE,SR,SX,TRR,XL) SEPARATE SEAT |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72655-2002016 |
AE70,KE70,TE71..(CP,LB)..(GT,SE,SR,SX,TRR,XL) DARK BROWN,BROWN,TRIM4# |
2 | ||
| 72655-2002004 |
AE70,KE70,TE7#..CP,LB BLUE,BLUE,TRIM8# |
2 | ||
| 72655-2002001 |
AE70,KE70,TE7#..CP,LB BLACK,BLACK,TRIM2# |
2 | ||
| 72655-2002001 |
AE70,KE70,TE71..(CP,LB)..(GT,SE,SR,SX,TRR,XL) BLACK,BLACK,TRIM2# |
2 | ||
| 72655-2002004 |
AE70,KE70,TE71..(CP,LB)..(GT,SE,SR,SX,TRR,XL) BLUE,BLUE,TRIM8# |
2 | ||
| 72655-2002016 |
AE70,KE70,TE7#..CP,LB DARK BROWN,BROWN,TRIM4# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-2001001 |
AE70,KE70,TE71..(CP,LB)..(GT,SE,SR,SX,TRR,XL) BLACK,BLACK,TRIM2# |
2 | ||
| 72656-2001004 |
AE70,KE70,TE71..(CP,LB)..(GT,SE,SR,SX,TRR,XL) BLUE,BLUE,TRIM8# |
2 | ||
| 72656-2001016 |
AE70,KE70,TE7#..CP,LB DARK BROWN,BROWN,TRIM4# |
2 | ||
| 72656-2001004 |
AE70,KE70,TE7#..CP,LB BLUE,BLUE,TRIM8# |
2 | ||
| 72656-2001016 |
AE70,KE70,TE71..(CP,LB)..(GT,SE,SR,SX,TRR,XL) DARK BROWN,BROWN,TRIM4# |
2 | ||
| 72656-2001001 |
AE70,KE70,TE7#..CP,LB BLACK,BLACK,TRIM2# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-22010 |
AE70,KE70,TE7# |
2 | ||
| 72693-12010 |
AE70,CE70,KE70,TE71 |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-22010 |
AE70,KE70,TE7# |
2 | ||
| 72693-12010 |
AE70,CE70,KE70,TE71 |
2 | ||
| Common parts | ||||
| 90159-60095 | ||||
| 90386-12010 | ||||
| 90389-08003 | ||||
| 90463-08221 | ||||
| 91651-40616 | ||||
| 91661-40618 | ||||
| 93315-16020 | ||||
ILLUST NO. 3 OF 3(7903-8108)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90580-16001 | ||||
| 90580-16003 | ||||
| 90580-16010 | ||||
| 90580-16015 | ||||
| 90580-16019 | ||||
| 90580-16020 | ||||
| 90580-16021 | ||||
| 90580-16056 | ||||
| 90580-16057 | ||||
| 90580-20001 | ||||
| 90580-20006 | ||||
| 90580-20007 | ||||
| 90580-20010 | ||||
| 90580-20011 | ||||
| 90580-20016 | ||||
| 90580-20041 | ||||
| 90580-20048 | ||||
| 90580-20095 | ||||
| 90580-20099 | ||||
| 90580-20106 | ||||
| 90580-20107 | ||||
| 90580-20108 | ||||
| 90580-20122 | ||||
| 90580-25004 | ||||
| 90580-25034 | ||||
| 90580-25100 | ||||
| 90580-26008 | ||||
| 90580-32011 | ||||
| 90580-32013 | ||||
| 90680-16056 | ||||
ILLUST NO. 3 OF 3(8108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90580-16001 | ||||
| 90580-16003 | ||||
| 90580-16010 | ||||
| 90580-16014 | ||||
| 90580-16020 | ||||
| 90580-16021 | ||||
| 90580-16023 | ||||
| 90580-16030 | ||||
| 90580-20006 | ||||
| 90580-25004 | ||||
| 90580-25015 | ||||
| 90580-26008 | ||||
ILLUST NO. 3 OF 3(7903- )2D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90580-16001 | ||||
| 90580-16004 | ||||
| 90580-16005 | ||||
| 90580-16010 | ||||
| 90580-16020 | ||||
| 90580-16027 | ||||
| 90580-20007 | ||||
| 90580-20021 | ||||
| 90580-20095 | ||||
| 90580-20096 | ||||
| 90580-20107 | ||||
| 90580-20116 | ||||
| 90580-20122 | ||||
| 90580-20132 | ||||
| 90580-25004 | ||||
| 90580-25006 | ||||
| 90580-25015 | ||||
| 90580-25020 | ||||
| 90580-25029 | ||||
| 90580-25031 | ||||
| 90580-25032 | ||||
| 90580-25034 | ||||
| 90580-25100 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
