KE70-FEKDS (1979)

Toyota Sprinter

Production Mar 1979 - Apr 1983
Engine 4KU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )KE70..MTM ; (8202- )CE70

Click highlighted areas on diagram

diagram 8401 88031 88031 88645A 88645D 88645D 88650A 88691 88691 9017906115 9046400074 9046400082 9046400087 9046400184 9046400184 9046400184 9046400184 9165640616
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-12110

KE70..MTM

HEATER IDLE UP

 1
88031-12110

KE70

 1
88031-12081

KE70

 1
88031 - ACTUATOR SET, IDLE-UP
88031-12110

KE70..MTM

HEATER IDLE UP

 1
88031-12110

KE70

 1
88031-12081

KE70

 1
88645A - UNION (FOR IDLE UP DEVICE)
90404-51093

KE70

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10060

KE70..MTM

*H,L=600,ﾏｰｸ=#0

 1
95411-10060

KE70

*H,L=400,ﾏｰｸ=#0

 1
95411-10060

KE70

*H,L=420,ﾏｰｸ=#0

 1
95411-19995

KE70

*H,L=650,ﾏｰｸ=#*

 1
95411-19930

KE70

*H,L=300,ﾏｰｸ=#*

 1
95411-19960

KE70

*H,L=540,ﾏｰｸ=#*

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10060

KE70..MTM

*H,L=600,ﾏｰｸ=#0

 1
95411-10060

KE70

*H,L=400,ﾏｰｸ=#0

 1
95411-10060

KE70

*H,L=420,ﾏｰｸ=#0

 1
95411-19995

KE70

*H,L=650,ﾏｰｸ=#*

 1
95411-19930

KE70

*H,L=300,ﾏｰｸ=#*

 1
95411-19960

KE70

*H,L=540,ﾏｰｸ=#*

 1
88650A - AMPLIFIER ASSY(FOR HEATER IDLE-UP)
88650-12090

KE70..MTM

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-12150

KE70

 1
88691-12040

KE70

NO.2

 1
88690-12151

KE70

NO.1

 1
88690-12210

KE70..MTM

HEATER IDLE UP

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-12150

KE70

 1
88691-12040

KE70

NO.2

 1
88690-12151

KE70

NO.1

 1
88690-12210

KE70..MTM

HEATER IDLE UP

 1
Common parts
90179-06115
90464-00074
90464-00082
90464-00087
90464-00184
91656-40616
Linked diagrams
8401

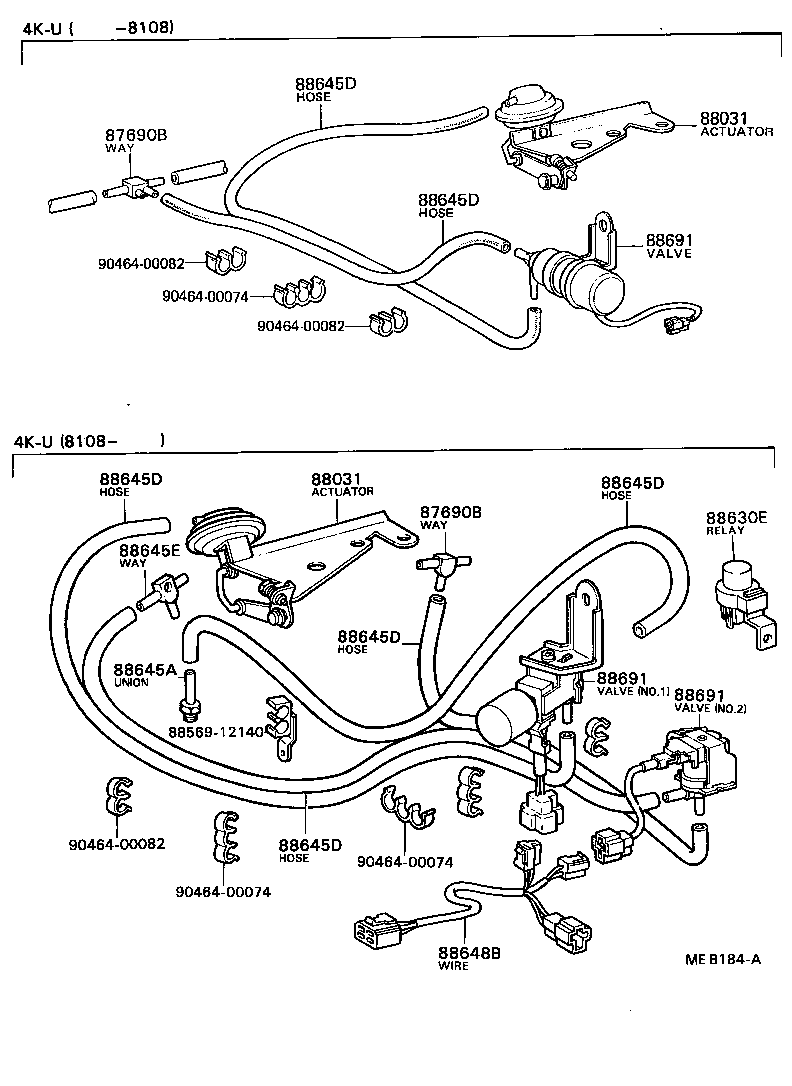

(7903- )KE70

Click highlighted areas on diagram

diagram 87690B 87690B 88031 88031 8856912140 88630E 88645A 88645D 88645D 88645D 88645D 88645D 88645D 88645E 88648B 88691 88691 88691 9046400074 9046400074 9046400074 9046400082 9046400082 9046400082
Part # Description Qty Price
87690B - WAY, 3
90413-04002

KE70

 1
90413-04005

AE70,KE70,TE71

 1
87690B - WAY, 3
90413-04002

KE70

 1
90413-04005

AE70,KE70,TE71

 1
88031 - ACTUATOR SET, IDLE-UP
88031-12110

KE70..MTM

HEATER IDLE UP

 1
88031-12110

KE70

 1
88031-12081

KE70

 1
88031 - ACTUATOR SET, IDLE-UP
88031-12110

KE70..MTM

HEATER IDLE UP

 1
88031-12110

KE70

 1
88031-12081

KE70

 1
88630E - RELAY ASSY, COOLER
88630-10020

KE70

 1
88645A - UNION (FOR IDLE UP DEVICE)
90404-51093

KE70

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10060

KE70..MTM

*H,L=600,ﾏｰｸ=#0

 1
95411-10060

KE70

*H,L=400,ﾏｰｸ=#0

 1
95411-10060

KE70

*H,L=420,ﾏｰｸ=#0

 1
95411-19995

KE70

*H,L=650,ﾏｰｸ=#*

 1
95411-19930

KE70

*H,L=300,ﾏｰｸ=#*

 1
95411-19960

KE70

*H,L=540,ﾏｰｸ=#*

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10060

KE70..MTM

*H,L=600,ﾏｰｸ=#0

 1
95411-10060

KE70

*H,L=400,ﾏｰｸ=#0

 1
95411-10060

KE70

*H,L=420,ﾏｰｸ=#0

 1
95411-19995

KE70

*H,L=650,ﾏｰｸ=#*

 1
95411-19930

KE70

*H,L=300,ﾏｰｸ=#*

 1
95411-19960

KE70

*H,L=540,ﾏｰｸ=#*

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10060

KE70..MTM

*H,L=600,ﾏｰｸ=#0

 1
95411-10060

KE70

*H,L=400,ﾏｰｸ=#0

 1
95411-10060

KE70

*H,L=420,ﾏｰｸ=#0

 1
95411-19995

KE70

*H,L=650,ﾏｰｸ=#*

 1
95411-19930

KE70

*H,L=300,ﾏｰｸ=#*

 1
95411-19960

KE70

*H,L=540,ﾏｰｸ=#*

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10060

KE70..MTM

*H,L=600,ﾏｰｸ=#0

 1
95411-10060

KE70

*H,L=400,ﾏｰｸ=#0

 1
95411-10060

KE70

*H,L=420,ﾏｰｸ=#0

 1
95411-19995

KE70

*H,L=650,ﾏｰｸ=#*

 1
95411-19930

KE70

*H,L=300,ﾏｰｸ=#*

 1
95411-19960

KE70

*H,L=540,ﾏｰｸ=#*

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10060

KE70..MTM

*H,L=600,ﾏｰｸ=#0

 1
95411-10060

KE70

*H,L=400,ﾏｰｸ=#0

 1
95411-10060

KE70

*H,L=420,ﾏｰｸ=#0

 1
95411-19995

KE70

*H,L=650,ﾏｰｸ=#*

 1
95411-19930

KE70

*H,L=300,ﾏｰｸ=#*

 1
95411-19960

KE70

*H,L=540,ﾏｰｸ=#*

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10060

KE70..MTM

*H,L=600,ﾏｰｸ=#0

 1
95411-10060

KE70

*H,L=400,ﾏｰｸ=#0

 1
95411-10060

KE70

*H,L=420,ﾏｰｸ=#0

 1
95411-19995

KE70

*H,L=650,ﾏｰｸ=#*

 1
95411-19930

KE70

*H,L=300,ﾏｰｸ=#*

 1
95411-19960

KE70

*H,L=540,ﾏｰｸ=#*

 1
88645E - JOINT, NO.2 (FOR IDLE UP DEVICE)
90413-04012

KE70

 1
88648B - WIRING, COOLER, NO.1
88605-12261

KE70

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-12150

KE70

 1
88691-12040

KE70

NO.2

 1
88690-12151

KE70

NO.1

 1
88690-12210

KE70..MTM

HEATER IDLE UP

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-12150

KE70

 1
88691-12040

KE70

NO.2

 1
88690-12151

KE70

NO.1

 1
88690-12210

KE70..MTM

HEATER IDLE UP

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-12150

KE70

 1
88691-12040

KE70

NO.2

 1
88690-12151

KE70

NO.1

 1
88690-12210

KE70..MTM

HEATER IDLE UP

 1
Common parts
88569-12140
90464-00074
90464-00082
