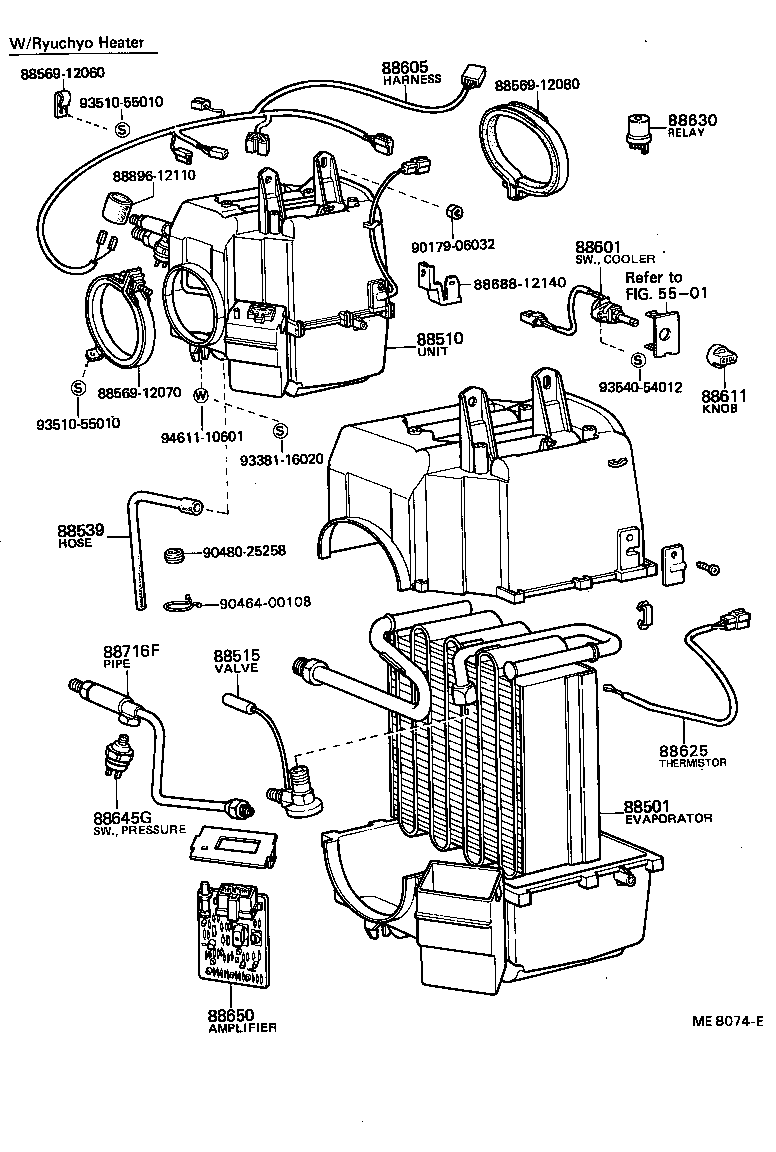

KE70-FEKBS (1979)
Toyota Sprinter
(7903- )KE70..DX,SPD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-12250 |
KE70..DX,SPD RYUCHYO HEATER |
1 | ||
| 88501-12240 |
KE70..DX,SPD RYUCHYO HEATER OKINAWA SPEC |
1 | ||
| 88501-12230 |
AE70,KE70,TE7# AIR MIX HEATER,OKINAWA SPEC |
1 | ||
| 88501-12231 |
AE70,CE70,KE70,TE71 AIR MIX HEATER |
1 | ||
| 88501-12240 |
KE70..DX,SPD RYUCHYO HEATER |
1 | ||
| 88501-12150 |
AE70,KE70,TE7# AIR MIX HEATER |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-12160 |
KE70,TE71 AIR MIX HEATER |
1 | ||
| 88510-12260 |
KE70..DX,SPD RYUCHYO HEATER OKINAWA SPEC |
1 | ||
| 88510-12271 |
AE70,KE70 AIR MIX HEATER |
1 | ||
| 88510-12250 |
KE70,TE71 AIR MIX HEATER,OKINAWA SPEC |
1 | ||
| 88510-12170 |
KE70..DX,SPD RYUCHYO HEATER |
1 | ||
| 88510-12320 |
KE70..DX,SPD RYUCHYO HEATER |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-20040 |
AE70,CE70,KE70,TE7# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-12040 |
AE70,CE70,KE70,TE7# |
1 | ||
| 88601 - SWITCH SUB-ASSY, COOLER CONTROL | ||||
| 84660-12010 |
AE70,CE70,KE70,TE7# |
1 | ||
| 88610-12020 |
KE70..DX,SPD RYUCHYO HEATER |
1 | ||
| 88610-12021 |
KE70..DX,SPD RYUCHYO HEATER |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-12320 |
KE70..DX,SPD RYUCHYO HEATER |
1 | ||
| 88605-12340 |
KE70 COLD SPEC |
1 | ||
| 88605-12200 |
KE70,TE71 |
1 | ||
| 88605-12210 |
KE70..DX,SPD RYUCHYO HEATER |
1 | ||
| 88605-12290 |
KE70..SE,SR,XL |
1 | ||
| 88611 - KNOB, COOLER CONTROL SWITCH | ||||
| 88611-12030 |
KE70..DX,SPD RYUCHYO HEATER |
1 | ||
| 88611-12031 |
KE70..DX,SPD RYUCHYO HEATER |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-12070 |
AE70,CE70,KE70,TE71 W/RYUCHO OR AIR MIX HEATER |
1 | ||
| 88625-12050 |
AE70,KE70,TE7# |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-02001 |
KE70 ENGINE ROOM |
1 | ||
| 90987-02004 |
CE70,KE70..4F,4FC,5F ENGINE ROOM |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-30250 |
AE70,KE70,TE7# |
1 | ||
| 88645-12010 |
AE70,KE70,TE71 |
1 | ||
| 88645-22010 |
AE70,KE70,TE71 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-14070 |
KE70,TE71 |
1 | ||
| 88650-16020 |
AE70,KE70 |
1 | ||
| 88650-20100 |
KE70,TE71 |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-12530 |
AE70,CE70,KE70,TE71 AIR MIX HEATER |
1 | ||
| 88716-12470 |
KE70..DX,SPD RYUCHYO HEATER |
1 | ||
| 88716-12470 |
AE70,KE70,TE7# |
1 | ||
| Common parts | ||||
| 88569-12060 | ||||
| 88569-12070 | ||||
| 88569-12080 | ||||
| 88688-12140 | ||||
| 88896-12110 | ||||
| 90179-06032 | ||||
| 90464-00108 | ||||
| 90480-25258 | ||||
| 93381-16020 | ||||
| 93510-55010 | ||||
| 93540-54012 | ||||
| 94611-10601 | ||||
| Linked diagrams | ||||
| 5501 | ||||
(7903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-12250 |
KE70..DX,SPD RYUCHYO HEATER |
1 | ||
| 88501-12240 |
KE70..DX,SPD RYUCHYO HEATER OKINAWA SPEC |
1 | ||
| 88501-12230 |
AE70,KE70,TE7# AIR MIX HEATER,OKINAWA SPEC |
1 | ||
| 88501-12231 |
AE70,CE70,KE70,TE71 AIR MIX HEATER |
1 | ||
| 88501-12240 |
KE70..DX,SPD RYUCHYO HEATER |
1 | ||
| 88501-12150 |
AE70,KE70,TE7# AIR MIX HEATER |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-12160 |
KE70,TE71 AIR MIX HEATER |
1 | ||
| 88510-12260 |
KE70..DX,SPD RYUCHYO HEATER OKINAWA SPEC |
1 | ||
| 88510-12271 |
AE70,KE70 AIR MIX HEATER |
1 | ||
| 88510-12250 |
KE70,TE71 AIR MIX HEATER,OKINAWA SPEC |
1 | ||
| 88510-12170 |
KE70..DX,SPD RYUCHYO HEATER |
1 | ||
| 88510-12320 |
KE70..DX,SPD RYUCHYO HEATER |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-20040 |
AE70,CE70,KE70,TE7# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-12040 |
AE70,CE70,KE70,TE7# |
1 | ||
| 88601 - SWITCH SUB-ASSY, COOLER CONTROL | ||||
| 84660-12010 |
AE70,CE70,KE70,TE7# |
1 | ||
| 88610-12020 |
KE70..DX,SPD RYUCHYO HEATER |
1 | ||
| 88610-12021 |
KE70..DX,SPD RYUCHYO HEATER |
1 | ||
| 88601K - BULB(FOR COOLER SWITCH) | ||||
| 88607-14020 |
AE70,CE70,KE70,TE7# 14V 1.4W,12V 1.4W |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-12320 |
KE70..DX,SPD RYUCHYO HEATER |
1 | ||
| 88605-12340 |
KE70 COLD SPEC |
1 | ||
| 88605-12200 |
KE70,TE71 |
1 | ||
| 88605-12210 |
KE70..DX,SPD RYUCHYO HEATER |
1 | ||
| 88605-12290 |
KE70..SE,SR,XL |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-12070 |
AE70,CE70,KE70,TE71 W/RYUCHO OR AIR MIX HEATER |
1 | ||
| 88625-12050 |
AE70,KE70,TE7# |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-02001 |
KE70 ENGINE ROOM |
1 | ||
| 90987-02004 |
CE70,KE70..4F,4FC,5F ENGINE ROOM |
1 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 88630-60020 |
KE70 COLD SPEC |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-30250 |
AE70,KE70,TE7# |
1 | ||
| 88645-12010 |
AE70,KE70,TE71 |
1 | ||
| 88645-22010 |
AE70,KE70,TE71 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-14070 |
KE70,TE71 |
1 | ||
| 88650-16020 |
AE70,KE70 |
1 | ||
| 88650-20100 |
KE70,TE71 |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-12530 |
AE70,CE70,KE70,TE71 AIR MIX HEATER |
1 | ||
| 88716-12470 |
KE70..DX,SPD RYUCHYO HEATER |
1 | ||
| 88716-12470 |
AE70,KE70,TE7# |
1 | ||
| Common parts | ||||
| 88569-12060 | ||||
| 88569-12070 | ||||
| 88569-12100 | ||||
| 88688-12140 | ||||
| 88896-12110 | ||||
| 90099-01099 | ||||
| 90179-06032 | ||||
| 90464-00108 | ||||
| 90480-25258 | ||||
| 93315-14012 | ||||
| 93381-16020 | ||||
| 93385-16012 | ||||
| 93510-55010 | ||||
| 93590-16025 | ||||
| 94611-10601 | ||||
| Linked diagrams | ||||
| 5501 | ||||
