KE70-FEKBS (1979)
Toyota Sprinter
ILLUST NO. 2 OF 2(7903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-19485 |
AE70,KE70..2FC,4F,5F |
1 | ||
| 83710-19485 |
AE70,KE70 |
1 | ||
| 83710-19486 |
AE70,KE70..2FC,4F,5F |
1 | ||
| 83710-19486 |
AE70,KE70..MTM |
1 | ||
| Common parts | ||||
| 83791-12010 | ||||
| 83791-12020 | ||||
| 83791-12030 | ||||
| 90461-08393 | ||||
| 90461-08460 | ||||
| 91611-40614 | ||||
| Linked diagrams | ||||
| 3304 | ||||
| 3305 | ||||

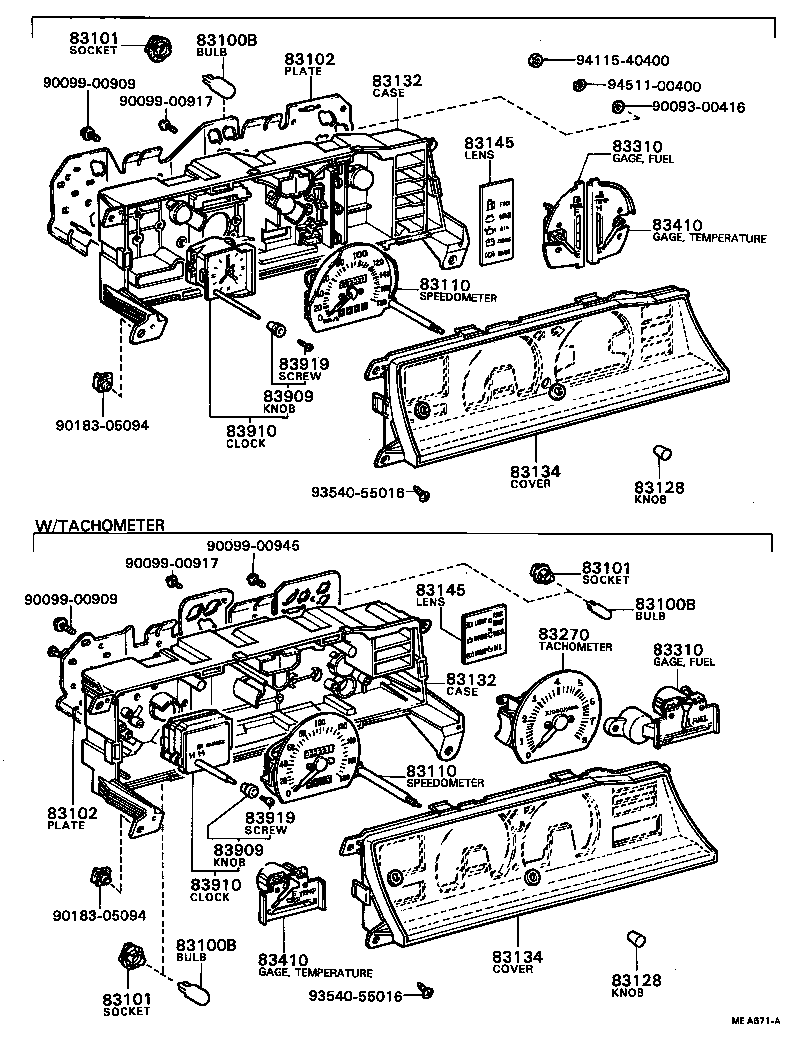

ILLUST NO. 1 OF 2(7903-8108)4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AE70,CE70,KE70,TE7# 12V 3.4W,12V 3.4W |
14 | ||
| 90981-11018 |
AE70,CE70,KE70,TE71..GT,SE,SR,SX,TRR,TRS 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AE70,CE70,KE70,TE7# 12V 3.4W,12V 3.4W |
14 | ||
| 90981-11018 |
AE70,CE70,KE70,TE71..GT,SE,SR,SX,TRR,TRS 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AE70,CE70,KE70,TE7# 12V 3.4W,12V 3.4W |
14 | ||
| 90981-11018 |
AE70,CE70,KE70,TE71..GT,SE,SR,SX,TRR,TRS 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE70,CE70,KE70,TE71..GT,SE,SR,SX,TRR,TRS 12V 1.4W |
1 | ||
| 83101-14030 |
AE70,CE70,KE70,TE7# 12V 3.4W |
14 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE70,CE70,KE70,TE71..GT,SE,SR,SX,TRR,TRS 12V 1.4W |
1 | ||
| 83101-14030 |
AE70,CE70,KE70,TE7# 12V 3.4W |
14 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE70,CE70,KE70,TE71..GT,SE,SR,SX,TRR,TRS 12V 1.4W |
1 | ||
| 83101-14030 |
AE70,CE70,KE70,TE7# 12V 3.4W |
14 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-12550 |
AE70,KE70..(DX,SPD)..4D |
1 | ||
| 83247-1A150 |
AE70,KE70,TE71..(GT,SE,SX)..4D |
1 | ||
| 83247-12490 |
AE70,KE70,TE70..(DX,SPD,XL)..4D W/CLOCK |
1 | ||
| 83247-12810 |
AE70,KE70..(DX,SPD)..4D |
1 | ||
| 83247-12770 |
AE70,KE70..(DX,SPD,XL)..4D W/ANALOGUE CLOCK |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-12550 |
AE70,KE70..(DX,SPD)..4D |
1 | ||
| 83247-1A150 |
AE70,KE70,TE71..(GT,SE,SX)..4D |
1 | ||
| 83247-12490 |
AE70,KE70,TE70..(DX,SPD,XL)..4D W/CLOCK |
1 | ||
| 83247-12810 |
AE70,KE70..(DX,SPD)..4D |
1 | ||
| 83247-12770 |
AE70,KE70..(DX,SPD,XL)..4D W/ANALOGUE CLOCK |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-12560 |
KE70..SPD |
1 | ||
| 83110-12570 |
AE70,KE70,TE70..(DX,SPD,XL)..4D |
1 | ||
| 83110-12571 |
AE70,CE70,KE70..(DX,SPD,XL)..4D |
1 | ||
| 83110-12551 |
AE70,CE70,KE70,TE71..(GT,SE,SX)..4D |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-12560 |
KE70..SPD |
1 | ||
| 83110-12570 |
AE70,KE70,TE70..(DX,SPD,XL)..4D |
1 | ||
| 83110-12571 |
AE70,CE70,KE70..(DX,SPD,XL)..4D |
1 | ||
| 83110-12551 |
AE70,CE70,KE70,TE71..(GT,SE,SX)..4D |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-12670 |
AE70,KE70,TE7#..4D |
1 | ||
| 83128-12650 |
AE70,CE70,KE70,TE71..4D |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-12670 |
AE70,KE70,TE7#..4D |
1 | ||
| 83128-12650 |
AE70,CE70,KE70,TE71..4D |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-12250 |
AE70,CE70,KE70,TE71..(GT,SE,SX)..4D |
1 | ||
| 83132-12030 |
AE70,KE70,TE70..(DX,SPD,XL)..4D |
1 | ||
| 83132-12190 |
AE70,CE70,KE70..(DX,SPD,XL)..4D |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-12250 |
AE70,CE70,KE70,TE71..(GT,SE,SX)..4D |
1 | ||
| 83132-12030 |
AE70,KE70,TE70..(DX,SPD,XL)..4D |
1 | ||
| 83132-12190 |
AE70,CE70,KE70..(DX,SPD,XL)..4D |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83133-12350 |
AE70,CE70,KE70..(DX,SPD,XL)..4D W/ANALOGUE CLOCK |
1 | ||
| 83133-12060 |
KE70..SPD |
1 | ||
| 83133-12070 |
AE70,KE70..(DX,SPD)..4D W/CLOCK |
1 | ||
| 83133-12470 |
AE70,CE70,KE70,TE71..(GT,SE,SX)..4D |
1 | ||
| 83133-12330 |
AE70,CE70,KE70..(DX,SPD)..4D |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83133-12350 |
AE70,CE70,KE70..(DX,SPD,XL)..4D W/ANALOGUE CLOCK |
1 | ||
| 83133-12060 |
KE70..SPD |
1 | ||
| 83133-12070 |
AE70,KE70..(DX,SPD)..4D W/CLOCK |
1 | ||
| 83133-12470 |
AE70,CE70,KE70,TE71..(GT,SE,SX)..4D |
1 | ||
| 83133-12330 |
AE70,CE70,KE70..(DX,SPD)..4D |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-12170 |
AE70,KE70..(DX,SPD)..4D |
1 | ||
| 83145-12060 |
AE70,KE70..(DX,SPD)..4D |
1 | ||
| 83145-12430 |
AE70,KE70,TE71..(GT,SE,SX)..4D |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-12570 |
AE70,KE70..(SE,SX)..4D |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-12230 |
AE70,KE70,TE70..(DX,SPD,XL)..4D |
1 | ||
| 83243-12250 |
AE70,KE70..(DX,SPD,XL)..4D |
1 | ||
| 83243-12120 |
AE70,KE70,TE70..(DX,SPD,XL)..4D |
1 | ||
| 83243-12370 |
AE70,CE70,KE70,TE71..(GT,SE,SX)..4D |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-12230 |
AE70,KE70,TE70..(DX,SPD,XL)..4D |
1 | ||
| 83243-12250 |
AE70,KE70..(DX,SPD,XL)..4D |
1 | ||
| 83243-12120 |
AE70,KE70,TE70..(DX,SPD,XL)..4D |
1 | ||
| 83243-12370 |
AE70,CE70,KE70,TE71..(GT,SE,SX)..4D |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-12190 |
AE70,KE70..(DX,SPD,XL)..4D |
1 | ||
| 83244-12310 |
AE70,KE70,TE70..(DX,SPD,XL)..4D |
1 | ||
| 83244-12250 |
AE70,KE70,TE70..(DX,SPD,XL)..4D |
1 | ||
| 83244-12450 |
AE70,CE70,KE70,TE71..(GT,SE,SX)..4D |
1 | ||
| 83244-12330 |
AE70,KE70..(DX,SPD,XL)..4D |
1 | ||
| 83244-12670 |
AE70,KE70..(DX,SPD,XL)..4D |
1 | ||
| 83244-12690 |
AE70,CE70,KE70,TE71..(GT,SE,SX)..4D |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-12230 |
AE70,CE70,KE70,TE71..(GT,SE,SX)..4D |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12220 |
AE70,KE70,TE70..(DX,SPD,XL)..4D |
1 | ||
| 83910-12221 |
AE70,CE70,KE70..(DX,SPD,XL)..4D |
1 | ||
| 83910-12211 |
AE70,CE70,KE70,TE71..(GT,SE,SX)..4D DIGITAL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12220 |
AE70,KE70,TE70..(DX,SPD,XL)..4D |
1 | ||
| 83910-12221 |
AE70,CE70,KE70..(DX,SPD,XL)..4D |
1 | ||
| 83910-12211 |
AE70,CE70,KE70,TE71..(GT,SE,SX)..4D DIGITAL |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
AE70,CE70,KE70,TE71..GT,SE,SR,SX,TRR,TRS DIGITAL CLOCK,BLACK |
1 | ||
| Common parts | ||||
| 90093-00318 | ||||
| 90093-00416 | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90183-05094 | ||||
| 93540-15016 | ||||
| 94115-40300 | ||||
| 94115-40400 | ||||
| 94511-00300 | ||||
| 94511-00400 | ||||

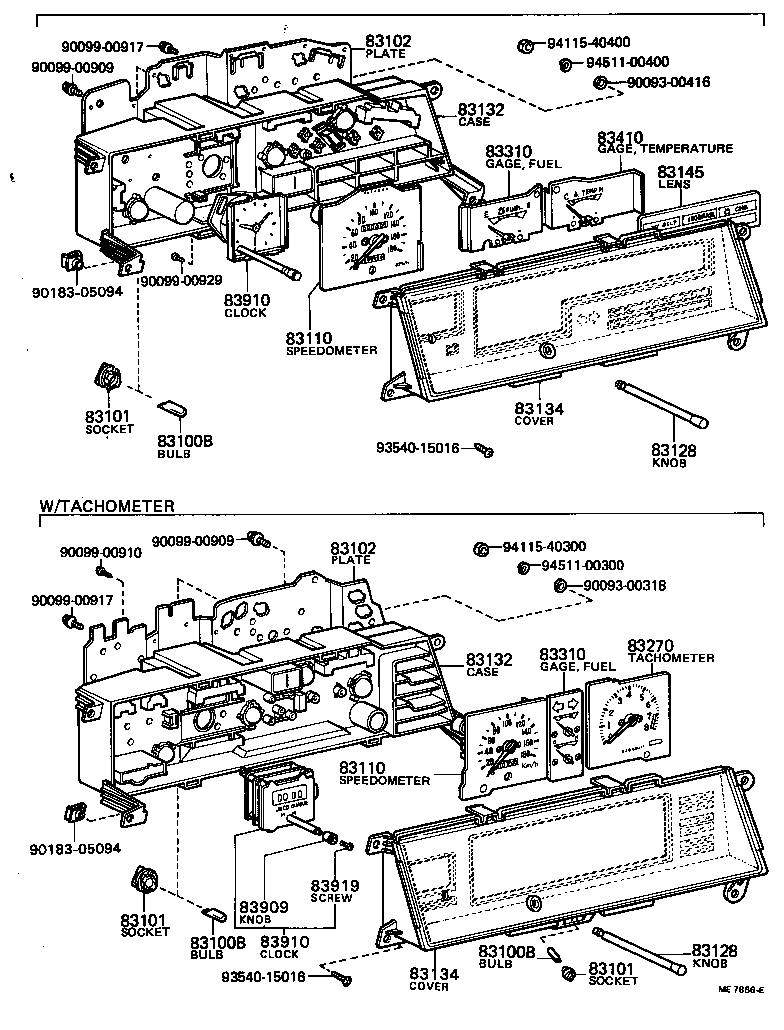

ILLUST NO. 1 OF 2(8108- )4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AE70,CE70,KE70,TE7# 12V 3.4W,12V 3.4W |
14 | ||
| 90981-11018 |
AE70,CE70,KE70,TE71..GT,SE,SR,SX,TRR,TRS 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AE70,CE70,KE70,TE7# 12V 3.4W,12V 3.4W |
14 | ||
| 90981-11018 |
AE70,CE70,KE70,TE71..GT,SE,SR,SX,TRR,TRS 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
AE70,CE70,KE70,TE7# 12V 3.4W,12V 3.4W |
14 | ||
| 90981-11018 |
AE70,CE70,KE70,TE71..GT,SE,SR,SX,TRR,TRS 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE70,CE70,KE70,TE71..GT,SE,SR,SX,TRR,TRS 12V 1.4W |
1 | ||
| 83101-14030 |
AE70,CE70,KE70,TE7# 12V 3.4W |
14 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE70,CE70,KE70,TE71..GT,SE,SR,SX,TRR,TRS 12V 1.4W |
1 | ||
| 83101-14030 |
AE70,CE70,KE70,TE7# 12V 3.4W |
14 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE70,CE70,KE70,TE71..GT,SE,SR,SX,TRR,TRS 12V 1.4W |
1 | ||
| 83101-14030 |
AE70,CE70,KE70,TE7# 12V 3.4W |
14 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-12550 |
AE70,KE70..(DX,SPD)..4D |
1 | ||
| 83247-1A150 |
AE70,KE70,TE71..(GT,SE,SX)..4D |
1 | ||
| 83247-12490 |
AE70,KE70,TE70..(DX,SPD,XL)..4D W/CLOCK |
1 | ||
| 83247-12810 |
AE70,KE70..(DX,SPD)..4D |
1 | ||
| 83247-12770 |
AE70,KE70..(DX,SPD,XL)..4D W/ANALOGUE CLOCK |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-12550 |
AE70,KE70..(DX,SPD)..4D |
1 | ||
| 83247-1A150 |
AE70,KE70,TE71..(GT,SE,SX)..4D |
1 | ||
| 83247-12490 |
AE70,KE70,TE70..(DX,SPD,XL)..4D W/CLOCK |
1 | ||
| 83247-12810 |
AE70,KE70..(DX,SPD)..4D |
1 | ||
| 83247-12770 |
AE70,KE70..(DX,SPD,XL)..4D W/ANALOGUE CLOCK |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-12560 |
KE70..SPD |
1 | ||
| 83110-12570 |
AE70,KE70,TE70..(DX,SPD,XL)..4D |
1 | ||
| 83110-12571 |
AE70,CE70,KE70..(DX,SPD,XL)..4D |
1 | ||
| 83110-12551 |
AE70,CE70,KE70,TE71..(GT,SE,SX)..4D |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-12560 |
KE70..SPD |
1 | ||
| 83110-12570 |
AE70,KE70,TE70..(DX,SPD,XL)..4D |
1 | ||
| 83110-12571 |
AE70,CE70,KE70..(DX,SPD,XL)..4D |
1 | ||
| 83110-12551 |
AE70,CE70,KE70,TE71..(GT,SE,SX)..4D |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-12670 |
AE70,KE70,TE7#..4D |
1 | ||
| 83128-12650 |
AE70,CE70,KE70,TE71..4D |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-12670 |
AE70,KE70,TE7#..4D |
1 | ||
| 83128-12650 |
AE70,CE70,KE70,TE71..4D |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-12250 |
AE70,CE70,KE70,TE71..(GT,SE,SX)..4D |
1 | ||
| 83132-12030 |
AE70,KE70,TE70..(DX,SPD,XL)..4D |
1 | ||
| 83132-12190 |
AE70,CE70,KE70..(DX,SPD,XL)..4D |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-12250 |
AE70,CE70,KE70,TE71..(GT,SE,SX)..4D |
1 | ||
| 83132-12030 |
AE70,KE70,TE70..(DX,SPD,XL)..4D |
1 | ||
| 83132-12190 |
AE70,CE70,KE70..(DX,SPD,XL)..4D |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83133-12350 |
AE70,CE70,KE70..(DX,SPD,XL)..4D W/ANALOGUE CLOCK |
1 | ||
| 83133-12060 |
KE70..SPD |
1 | ||
| 83133-12070 |
AE70,KE70..(DX,SPD)..4D W/CLOCK |
1 | ||
| 83133-12470 |
AE70,CE70,KE70,TE71..(GT,SE,SX)..4D |
1 | ||
| 83133-12330 |
AE70,CE70,KE70..(DX,SPD)..4D |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83133-12350 |
AE70,CE70,KE70..(DX,SPD,XL)..4D W/ANALOGUE CLOCK |
1 | ||
| 83133-12060 |
KE70..SPD |
1 | ||
| 83133-12070 |
AE70,KE70..(DX,SPD)..4D W/CLOCK |
1 | ||
| 83133-12470 |
AE70,CE70,KE70,TE71..(GT,SE,SX)..4D |
1 | ||
| 83133-12330 |
AE70,CE70,KE70..(DX,SPD)..4D |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-12170 |
AE70,KE70..(DX,SPD)..4D |
1 | ||
| 83145-12060 |
AE70,KE70..(DX,SPD)..4D |
1 | ||
| 83145-12430 |
AE70,KE70,TE71..(GT,SE,SX)..4D |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-12170 |
AE70,KE70..(DX,SPD)..4D |
1 | ||
| 83145-12060 |
AE70,KE70..(DX,SPD)..4D |
1 | ||
| 83145-12430 |
AE70,KE70,TE71..(GT,SE,SX)..4D |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-12570 |
AE70,KE70..(SE,SX)..4D |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-12230 |
AE70,KE70,TE70..(DX,SPD,XL)..4D |
1 | ||
| 83243-12250 |
AE70,KE70..(DX,SPD,XL)..4D |
1 | ||
| 83243-12120 |
AE70,KE70,TE70..(DX,SPD,XL)..4D |
1 | ||
| 83243-12370 |
AE70,CE70,KE70,TE71..(GT,SE,SX)..4D |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-12230 |
AE70,KE70,TE70..(DX,SPD,XL)..4D |
1 | ||
| 83243-12250 |
AE70,KE70..(DX,SPD,XL)..4D |
1 | ||
| 83243-12120 |
AE70,KE70,TE70..(DX,SPD,XL)..4D |
1 | ||
| 83243-12370 |
AE70,CE70,KE70,TE71..(GT,SE,SX)..4D |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-12190 |
AE70,KE70..(DX,SPD,XL)..4D |
1 | ||
| 83244-12310 |
AE70,KE70,TE70..(DX,SPD,XL)..4D |
1 | ||
| 83244-12250 |
AE70,KE70,TE70..(DX,SPD,XL)..4D |
1 | ||
| 83244-12450 |
AE70,CE70,KE70,TE71..(GT,SE,SX)..4D |
1 | ||
| 83244-12330 |
AE70,KE70..(DX,SPD,XL)..4D |
1 | ||
| 83244-12670 |
AE70,KE70..(DX,SPD,XL)..4D |
1 | ||
| 83244-12690 |
AE70,CE70,KE70,TE71..(GT,SE,SX)..4D |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-12190 |
AE70,KE70..(DX,SPD,XL)..4D |
1 | ||
| 83244-12310 |
AE70,KE70,TE70..(DX,SPD,XL)..4D |
1 | ||
| 83244-12250 |
AE70,KE70,TE70..(DX,SPD,XL)..4D |
1 | ||
| 83244-12450 |
AE70,CE70,KE70,TE71..(GT,SE,SX)..4D |
1 | ||
| 83244-12330 |
AE70,KE70..(DX,SPD,XL)..4D |
1 | ||
| 83244-12670 |
AE70,KE70..(DX,SPD,XL)..4D |
1 | ||
| 83244-12690 |
AE70,CE70,KE70,TE71..(GT,SE,SX)..4D |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-12230 |
AE70,CE70,KE70,TE71..(GT,SE,SX)..4D |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-12230 |
AE70,CE70,KE70,TE71..(GT,SE,SX)..4D |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12220 |
AE70,KE70,TE70..(DX,SPD,XL)..4D |
1 | ||
| 83910-12221 |
AE70,CE70,KE70..(DX,SPD,XL)..4D |
1 | ||
| 83910-12211 |
AE70,CE70,KE70,TE71..(GT,SE,SX)..4D DIGITAL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12220 |
AE70,KE70,TE70..(DX,SPD,XL)..4D |
1 | ||
| 83910-12221 |
AE70,CE70,KE70..(DX,SPD,XL)..4D |
1 | ||
| 83910-12211 |
AE70,CE70,KE70,TE71..(GT,SE,SX)..4D DIGITAL |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
AE70,CE70,KE70,TE71..GT,SE,SR,SX,TRR,TRS DIGITAL CLOCK,BLACK |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
AE70,CE70,KE70,TE71..GT,SE,SR,SX,TRR,TRS DIGITAL CLOCK,BLACK |
1 | ||
| Common parts | ||||
| 90093-00416 | ||||
| 90099-00909 | ||||
| 90099-00917 | ||||
| 90099-00945 | ||||
| 90183-05094 | ||||
| 93540-55016 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
