KE70-FEKBS (1979)
Toyota Sprinter

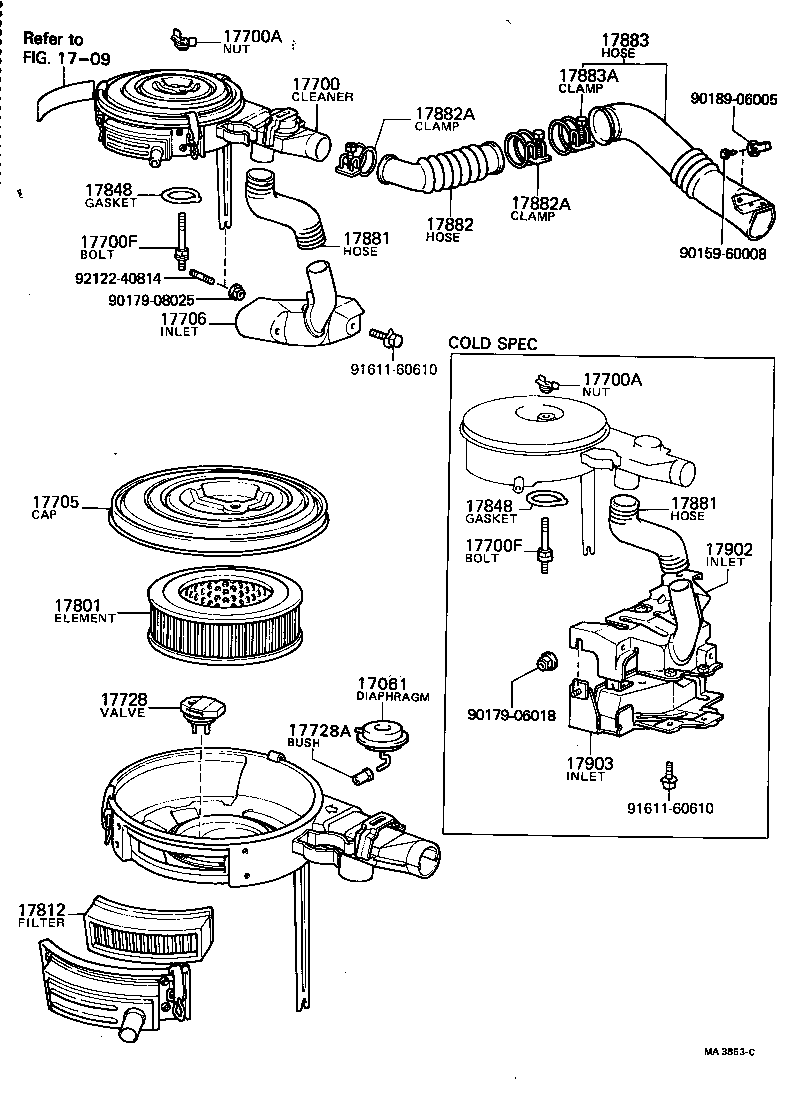

(7903-8108)4KU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-13010 |
4KU..KE70 |
1 | ||
| 17061-13020 |
4KU..KE70 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-13070 |
4KU..KE70..MTM |
1 | ||
| 17700-13071 |
4KU..KE70..MTM |
1 | ||
| 17700-13210 |
4KU..KE70 |
1 | ||
| 17700-13072 |
4KU..KE70..MTM |
1 | ||
| 17700-13211 |
4KU..KE70 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
4KU..KE70 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
4KU..KE70 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06106 |
4KU..KE70 L=87,S=13&30 |
1 | ||
| 90116-06142 |
4KU..KE70 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06106 |
4KU..KE70 L=87,S=13&30 |
1 | ||
| 90116-06142 |
4KU..KE70 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-13060 |
4KU..KE70 |
1 | ||
| 17705-13030 |
4KU..KE70 |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17895-13010 |
4KU..KE70 |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-24011 |
4KU..KE70 |
1 | ||
| 17728A - BUSH | ||||
| 90386-03001 |
4KU..KE70 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-13010 |
4KU..KE70 |
1 | ||
| 17812 - FILTER, AIR CLEANER, NO.2 | ||||
| 17812-31010 |
4KU..KE70 |
1 | ||
| 17812-13010 |
4KU..KE70 |
1 | ||
| 17812-31010 |
4KU..KE70 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-24010 |
4KU..KE70 |
1 | ||
| 17848-13010 |
4KU..KE70 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-24010 |
4KU..KE70 |
1 | ||
| 17848-13010 |
4KU..KE70 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-26020 |
4KU..KE70 |
1 | ||
| 17881-13050 |
4KU..KE70 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-26020 |
4KU..KE70 |
1 | ||
| 17881-13050 |
4KU..KE70 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17881-13030 |
4KU..KE70 |
1 | ||
| 17881-12030 |
4KU..KE70 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-47036 |
4KU..KE70 AIR CLEANER SIDE |
1 | ||
| 90460-01022 |
4KU..KE70 AIR CLEANER SIDE |
1 | ||
| 96111-10560 |
4KU..KE70 BODY SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-47036 |
4KU..KE70 AIR CLEANER SIDE |
1 | ||
| 90460-01022 |
4KU..KE70 AIR CLEANER SIDE |
1 | ||
| 96111-10560 |
4KU..KE70 BODY SIDE |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17882-13030 |
4KU..KE70 |
1 | ||
| 17882-12010 |
4KU..KE70 |
1 | ||
| 17882-13031 |
4KU..KE70 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-60001 |
4KU..KE70 HOSE X APRON |
1 | ||
| 17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1 | ||||
| 17167-13020 |
4KU..KE70 COLD SPEC |
1 | ||
| 17167-13010 |
4KU..KE70 COLD SPEC |
1 | ||
| 17903 - INLET SUB-ASSY, HOT AIR INTAKE, NO.2 | ||||
| 17168-13020 |
4KU..KE70 COLD SPEC |
1 | ||
| 17168-13010 |
4KU..KE70 COLD SPEC |
1 | ||
| Common parts | ||||
| 90159-60008 | ||||
| 90179-06018 | ||||
| 90179-08025 | ||||
| 90189-06005 | ||||
| 91611-60610 | ||||
| 92122-40814 | ||||
| Linked diagrams | ||||
| 1709 | ||||

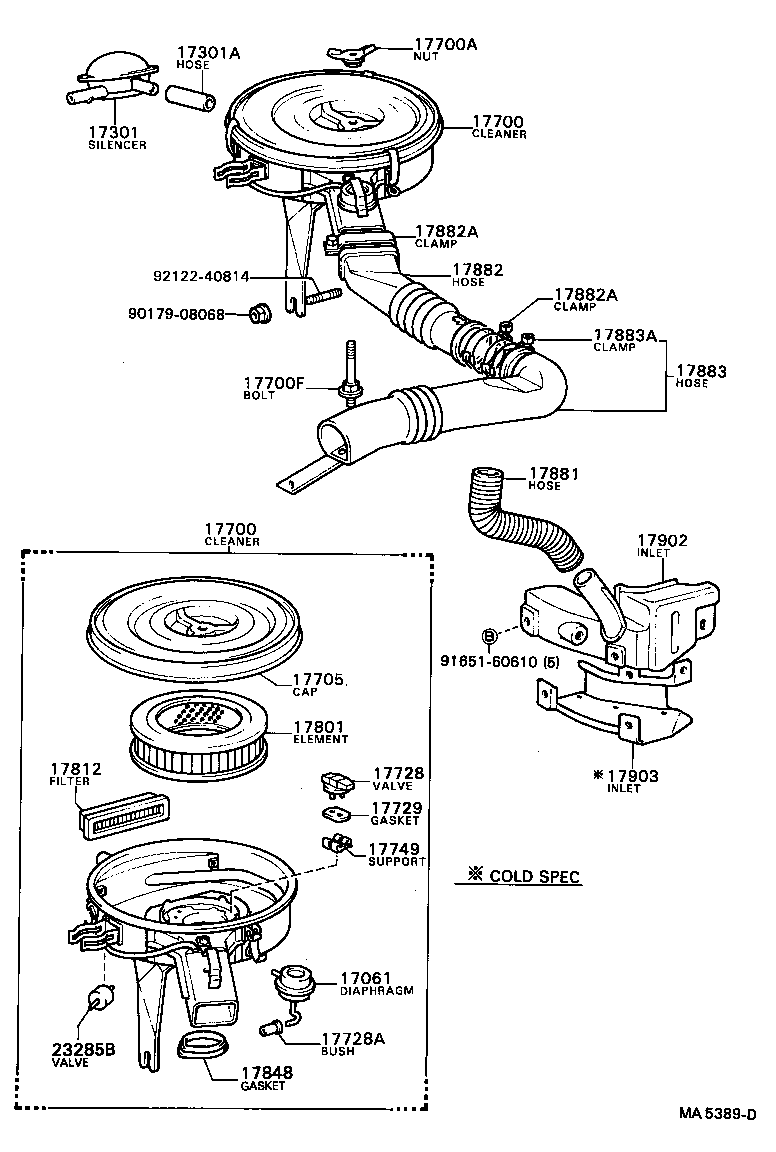

(8108- )4KU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-13010 |
4KU..KE70 |
1 | ||
| 17061-13020 |
4KU..KE70 |
1 | ||
| 17301 - SILENCER SUB-ASSY, AIR SUCTION | ||||
| 17301-13020 |
4KU..KE70 |
1 | ||
| 17301A - HOSE(FOR AIR CLEANER TO SILENCER) | ||||
| 90445-31014 |
4KU..KE70 |
1 | ||
| 90910-05154 |
4KU..KE70 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-13071 |
4KU..KE70..MTM |
1 | ||
| 17700-13070 |
4KU..KE70..MTM |
1 | ||
| 17700-13210 |
4KU..KE70 |
1 | ||
| 17700-13072 |
4KU..KE70..MTM |
1 | ||
| 17700-13211 |
4KU..KE70 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-13071 |
4KU..KE70..MTM |
1 | ||
| 17700-13070 |
4KU..KE70..MTM |
1 | ||
| 17700-13210 |
4KU..KE70 |
1 | ||
| 17700-13072 |
4KU..KE70..MTM |
1 | ||
| 17700-13211 |
4KU..KE70 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
4KU..KE70 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06106 |
4KU..KE70 L=87,S=13&30 |
1 | ||
| 90116-06142 |
4KU..KE70 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-13060 |
4KU..KE70 |
1 | ||
| 17705-13030 |
4KU..KE70 |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-24011 |
4KU..KE70 |
1 | ||
| 17728A - BUSH | ||||
| 90386-03001 |
4KU..KE70 |
1 | ||
| 17729 - GASKET, THERMOSTAT VALVE | ||||
| 17729-34010 |
4KU..KE70 |
1 | ||
| 17749 - SUPPORT, THERMOSTAT VALVE | ||||
| 17749-34010 |
4KU..KE70 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-13010 |
4KU..KE70 |
1 | ||
| 17812 - FILTER, AIR CLEANER, NO.2 | ||||
| 17812-31010 |
4KU..KE70 |
1 | ||
| 17812-13010 |
4KU..KE70 |
1 | ||
| 17812-31010 |
4KU..KE70 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-24010 |
4KU..KE70 |
1 | ||
| 17848-13010 |
4KU..KE70 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-26020 |
4KU..KE70 |
1 | ||
| 17881-13050 |
4KU..KE70 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17881-13030 |
4KU..KE70 |
1 | ||
| 17881-12030 |
4KU..KE70 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-47036 |
4KU..KE70 AIR CLEANER SIDE |
1 | ||
| 90460-01022 |
4KU..KE70 AIR CLEANER SIDE |
1 | ||
| 96111-10560 |
4KU..KE70 BODY SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-47036 |
4KU..KE70 AIR CLEANER SIDE |
1 | ||
| 90460-01022 |
4KU..KE70 AIR CLEANER SIDE |
1 | ||
| 96111-10560 |
4KU..KE70 BODY SIDE |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17882-13030 |
4KU..KE70 |
1 | ||
| 17882-12010 |
4KU..KE70 |
1 | ||
| 17882-13031 |
4KU..KE70 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-60001 |
4KU..KE70 HOSE X APRON |
1 | ||
| 17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1 | ||||
| 17167-13020 |
4KU..KE70 COLD SPEC |
1 | ||
| 17167-13010 |
4KU..KE70 COLD SPEC |
1 | ||
| 17903 - INLET SUB-ASSY, HOT AIR INTAKE, NO.2 | ||||
| 17168-13020 |
4KU..KE70 COLD SPEC |
1 | ||
| 17168-13010 |
4KU..KE70 COLD SPEC |
1 | ||
| 23285B - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
4KU..KE70 |
1 | ||
| Common parts | ||||
| 90179-08068 | ||||
| 91651-60610 | ||||
| 92122-40814 | ||||
