KE70-FCHXS (1981)

Toyota Sprinter

Production Aug 1981 - Apr 1983
Engine 4KU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )4KU

Click highlighted areas on diagram

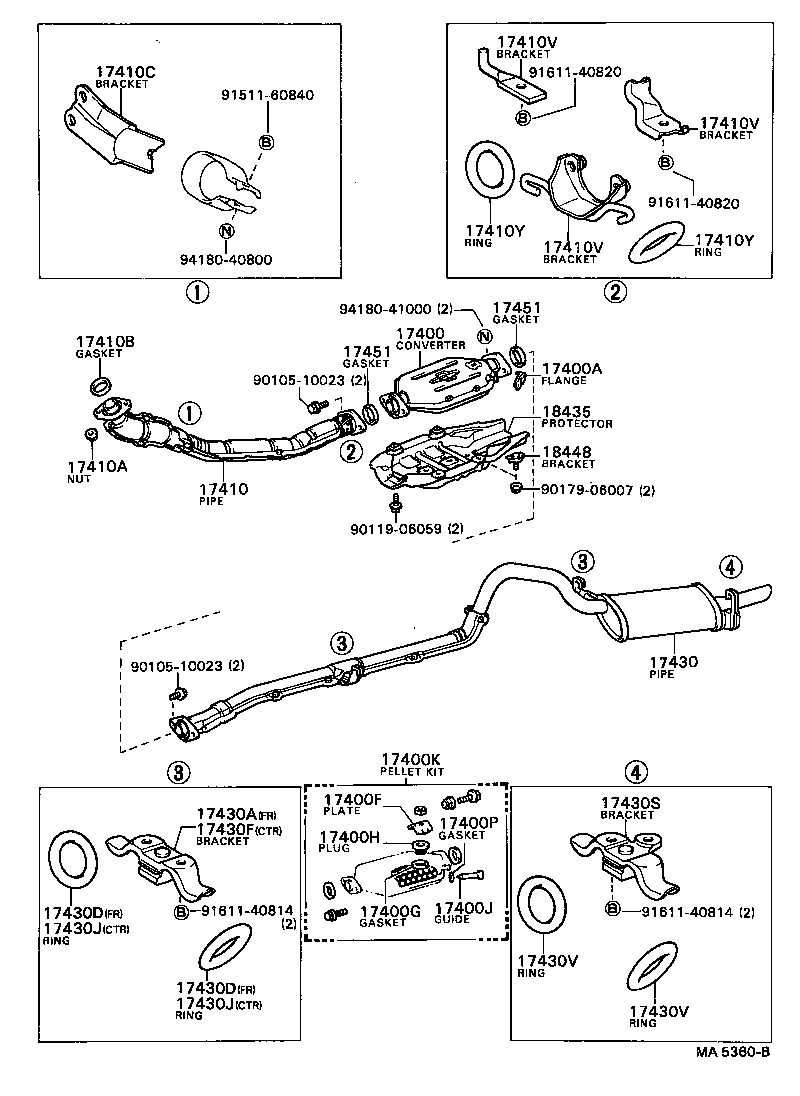

diagram 17400 17400A 17400F 17400G 17400H 17400J 17400K 17400P 17410 17410A 17410B 17410C 17410V 17410V 17410V 17410Y 17410Y 17430 17430A 17430D 17430D 17430F 17430J 17430J 17430S 17430V 17430V 17451 17451 18435 18448 9010510023 9010510023 9011906059 9017906007 9151160840 9161140814 9161140814 9161140820 9161140820 9418040800 9418041000
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
17400-13020

4KU..KE70

 1
17400-13030

3AU,4KU..AE70,KE70

 1
17400-13050

3AU,4KU..AE70,KE70

 1
17400-13060

4KU..KE70

 1
17400A - FLANGE, THERMOSENSER INLET
18491-34010

13TU,3AU,4KU,2TGEU..AE70,KE70,TE7#

 1
17400F - PLATE, CATALYZER INLET PLUG LOCK
18493-38011

13TU,3AU,4KU,2TGEU..AE70,KE70,TE7#

 1
17400G - GASKET, CATALYZER INLET
18494-38010

13TU,3AU,4KU,2TGEU..AE70,KE70,TE7#

 1
17400H - PLUG, W/HEAD STRAIGHT SCREW(FOR CATALYZER INLET)
90341-24093

13TU,3AU,4KU,2TGEU..AE70,KE70,TE7#

 1
17400J - GUIDE, CATALYTIC CONVERTER SENSOR
18492-45010

13TU,3AU,4KU,2TGEU..AE70,KE70,TE7#

 1
17400K - PELLET KIT
04181-44011

13TU,3AU,4KU..AE70,KE70,TE70

 1
04181-41030

3AU,4KU,2TGEU..AE70,KE70,TE71

 1
17400P - GASKET(FOR CATALYTIC CONVERTER SENSOR GUIDE)
90430-08252

13TU,3AU,4KU,2TGEU..AE70,KE70,TE7#

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-13050

4KU..KE70

 1
17410-13120

4KU..KE70

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10010

13TU,3AU,1C,4KU,2TGEU..AE70,CE70,KE70,TE7#

 3
17410B - GASKET, EXHAUST PIPE
90917-06006

4KU..KE70

 2
90917-06004

3AU,1C,4KU..AE70,CE70,KE70

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-13050

4KU..KE70

 1
17571-13090

4KU..KE70

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17588-13020

13TU,3AU,4KU,2TGEU..AE70,KE70,TE7#

UPR,LH

 1
17587-13020

13TU,3AU,4KU,2TGEU..AE70,KE70,TE7#

UPR,RH

 1
17505-13030

3AU,4KU,2TGEU..AE70,KE70,TE71

LWR

 1
17505-13020

13TU,4KU,2TGEU..KE70,TE7#

LWR

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17588-13020

13TU,3AU,4KU,2TGEU..AE70,KE70,TE7#

UPR,LH

 1
17587-13020

13TU,3AU,4KU,2TGEU..AE70,KE70,TE7#

UPR,RH

 1
17505-13030

3AU,4KU,2TGEU..AE70,KE70,TE71

LWR

 1
17505-13020

13TU,4KU,2TGEU..KE70,TE7#

LWR

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17588-13020

13TU,3AU,4KU,2TGEU..AE70,KE70,TE7#

UPR,LH

 1
17587-13020

13TU,3AU,4KU,2TGEU..AE70,KE70,TE7#

UPR,RH

 1
17505-13030

3AU,4KU,2TGEU..AE70,KE70,TE71

LWR

 1
17505-13020

13TU,4KU,2TGEU..KE70,TE7#

LWR

 1
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
90301-36001

13TU,3AU,4KU,2TGEU..AE70,KE70,TE7#

LH

 1
90301-34207

13TU,3AU,4KU,2TGEU..AE70,KE70,TE7#

RH

 1
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
90301-36001

13TU,3AU,4KU,2TGEU..AE70,KE70,TE7#

LH

 1
90301-34207

13TU,3AU,4KU,2TGEU..AE70,KE70,TE7#

RH

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-13040

3AU,4KU..AE70,KE70

 1
17430-13160

4KU..KE70

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17506-13020

13TU,3AU,1C,4KU,2TGEU..AE70,CE70,KE70,TE7#

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-36001

13TU,3AU,1C,4KU,2TGEU..AE70,CE70,KE70,TE7#

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-36001

13TU,3AU,1C,4KU,2TGEU..AE70,CE70,KE70,TE7#

 2
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17506-13020

13TU,3AU,1C,4KU,2TGEU..AE70,CE70,KE70,TE7#

 1
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

13TU,3AU,1C,4KU,2TGEU..AE70,CE70,KE70,TE7#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

13TU,3AU,1C,4KU,2TGEU..AE70,CE70,KE70,TE7#

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17508-13010

13TU,3AU,1C,4KU,2TGEU..AE70,CE70,KE70,TE7#

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

13TU,3AU,1C,4KU,2TGEU..AE70,CE70,KE70,TE7#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

13TU,3AU,1C,4KU,2TGEU..AE70,CE70,KE70,TE7#

 2
17451 - GASKET, EXHAUST PIPE
90917-06018

13TU,3AU,4KU,2TGEU..AE70,KE70,TE7#

FR PIPE X CCO

 1
90917-06004

13TU,3AU,4KU,2TGEU..AE70,KE70,TE7#

CCO X TAIL PIPE

 1
17451 - GASKET, EXHAUST PIPE
90917-06018

13TU,3AU,4KU,2TGEU..AE70,KE70,TE7#

FR PIPE X CCO

 1
90917-06004

13TU,3AU,4KU,2TGEU..AE70,KE70,TE7#

CCO X TAIL PIPE

 1
18435 - PROTECTOR, CATALYTIC CONVERTER
18407-25011

4KU..KE70

 1
18407-25011

3AU,4KU..AE70,KE70

 1
18448 - BRACKET, CONVERTER PROTECTOR, CENTER
18448-26020

13TU,3AU,4KU,2TGEU..AE70,KE70,TE7#

 2
