EE98V-BXMNS (1988)

Toyota Sprinter

Production Aug 1988 - Aug 1991
Engine 3E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )CE96,EE96,98

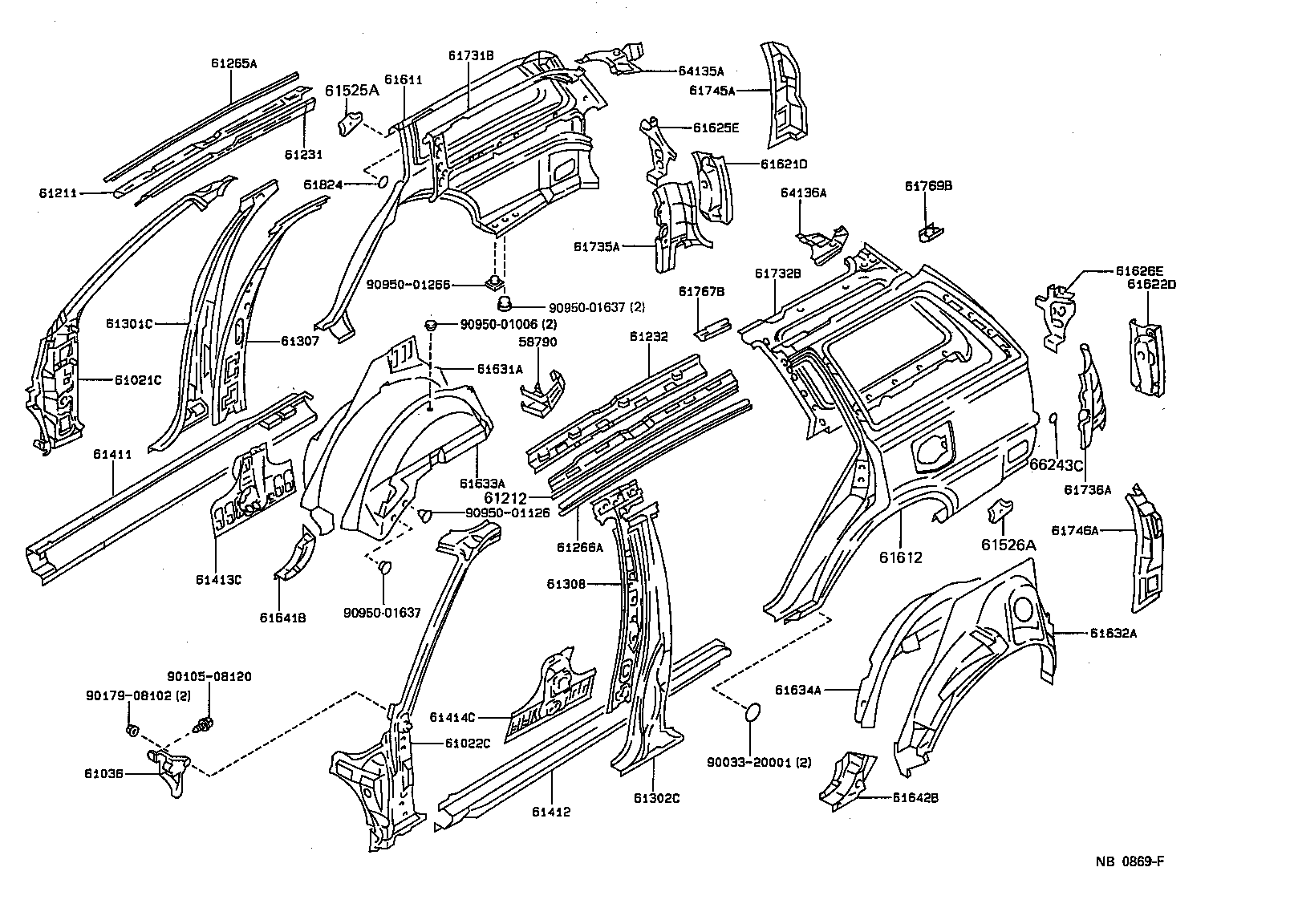

Click highlighted areas on diagram

diagram 58790 61021C 61022C 61036 61211 61212 61231 61232 61265A 61266A 61301C 61302C 61307 61308 61411 61412 61413C 61414C 61525A 61526A 61611 61612 61621D 61622D 61625E 61626E 61631A 61632A 61633A 61634A 61641B 61642B 61731B 61732B 61735A 61736A 61745A 61746A 61767B 61769B 61824 64135A 64136A 66243C 9003320001 9010508120 9017908102 9095001006 9095001126 9095001266 9095001637 9095001637
Part # Description Qty Price
58790 - CARRIER ASSY, JACK
58790-13010

CE96,EE96,98

 1
61021C - PILLAR SUB-ASSY, FRONT BODY, RH
61021-13010

CE96,EE96,98

 1
61022C - PILLAR SUB-ASSY, FRONT BODY, LH
61022-13010

CE96,EE96,98

 1
61036 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH
61036-12040

AE95..5F..AV2;AE9#,CE9#,EE9#..AV1,DX,G,GT,L,LX,MX,RVS,SE,STD,XI,XL,XS

 1
61036-12040

AE9#,CE9#,EE9#

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-13040

CE96,EE96,98

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-13040

CE96,EE96,98

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-13060

CE96,EE96,98

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-13040

CE96,EE96,98

 1
61265A - CHANNEL, ROOF DRIP SIDE, CENTER RH
61265-13020

CE96,EE96,98

 1
61266A - CHANNEL, ROOF DRIP SIDE, CENTER LH
61266-13020

CE96,EE96,98

 1
61301C - PILLAR SUB-ASSY, CENTER BODY, OUTER RH
61301-12190

AE9#,CE9#,EE9#

 1
61301-12190

AE91..XI;AE91..CBR;AE92,95,CE9#,EE9#

 1
61302C - PILLAR SUB-ASSY, CENTER BODY, OUTER LH
61302-12250

AE91..XI;AE91..CBR;AE92,95,CE9#,EE9#

 1
61302-12250

AE9#,CE9#,EE9#

 1
61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH
61307-13030

CE96,EE96,98

 1
61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH
61308-13040

CE96,EE96,98

 1
61411 - PANEL, ROCKER, OUTER RH
61411-12370

AE9#,CE9#,EE9#

 1
61412 - PANEL, ROCKER, OUTER LH
61412-12360

AE9#,CE9#,EE9#

 1
61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH
61413-12040

AE9#,CE9#,EE9#

 1
61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH
61414-12060

AE9#,CE9#,EE9#

 1
61525A - RETAINER, SEPARATOR BAR BRACKET, RH
61525-13011

CE96,EE96,98

 1
61526A - RETAINER, SEPARATOR BAR BRACKET, LH
61526-13011

CE96,EE96,98

 1
61611 - PANEL, QUARTER, RH
61601-13908

CE96,EE96,98

 1
61601-13905

CE96,EE96,98

 1
61612 - PANEL, QUARTER, LH
61602-13904

CE96,EE96,98..XL

ｱﾘ(ﾌﾕ-ｴﾙﾘﾂﾄﾞ ｵ-ﾌﾟﾅ)

 1
61602-13912

CE96,EE96,98..XL

 1
61602-13903

CE96,EE96,98

 1
61621D - TROUGH, BACK DOOR OPENING, RH
61621-13010

CE96,EE96,98

 1
61622D - TROUGH, BACK DOOR OPENING, LH
61622-13010

CE96,EE96,98

 1
61625E - EXTENSION, QUARTER PANEL, INNER REAR RH
61625-13050

CE96,EE96,98

 1
61626E - EXTENSION, QUARTER PANEL, INNER REAR LH
61626-13050

CE96,EE96,98

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61631-13040

CE96,EE96,98

 1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61632-13030

CE96,EE96,98

 1
61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH
61607-13030

CE96,EE96,98

 1
61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH
61608-13030

CE96,EE96,98

 1
61641B - GUSSET, QUARTER WHEEL HOUSE, RH
61641-12040

AE9#,CE9#,EE9#

 1
61642B - GUSSET, QUARTER WHEEL HOUSE, LH
61642-12040

AE9#,CE9#,EE9#

 1
61731B - PANEL, ROOF SIDE, INNER RH
61731-13240

CE96,EE96,98

 1
61732B - PANEL, ROOF SIDE, INNER LH
61732-13240

CE96,EE96,98

 1
61735A - PANEL, ROOF SIDE, INNER REAR RH
61735-13040

CE96,EE96,98

 1
61736A - PANEL, ROOF SIDE, INNER REAR LH
61736-13040

CE96,EE96,98

 1
61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH
61745-13060

CE96,EE96,98

 1
61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH
61746-13060

CE96,EE96,98

 1
64135A - REINFORCEMENT, BACK CORNER, OUTER RH
64135-13010

CE96,EE96,98

 1
64136A - REINFORCEMENT, BACK CORNER, OUTER LH
64136-13010

CE96,EE96,98

 1
66243C - PROTECTOR, REAR BODY, NO.1
53393-12020

CE96,EE96,98

 2
Common parts
90033-20001
90105-08120
90179-08102
90950-01006
90950-01126
90950-01266
90950-01637
