EE96V-BXKRS (1988)

Toyota Sprinter

Production Aug 1988 - Aug 1989
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )CE96,EE96,98

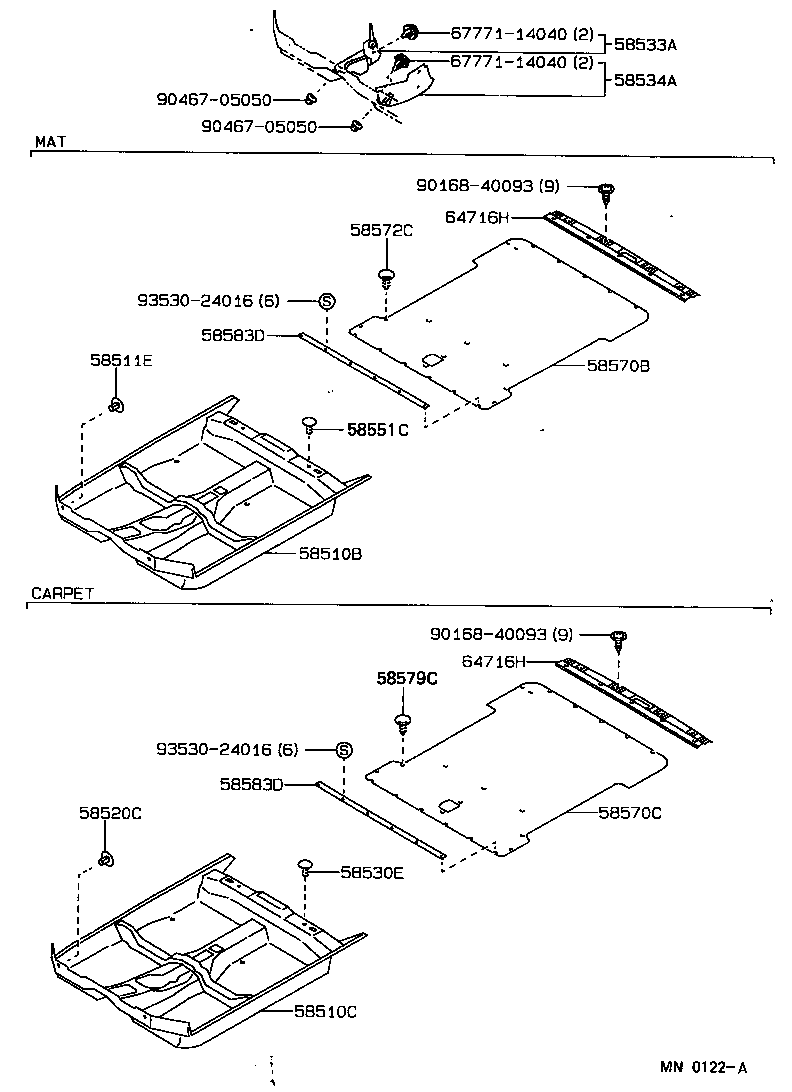

Click highlighted areas on diagram

diagram 58510B 58510C 58511E 58520C 58530E 58533A 58534A 58551C 58570B 58570C 58572C 58579C 58583D 58583D 64716H 64716H 6777114040 6777114040 9016840093 9016840093 9046705050 9046705050 9353024016 9353024016
Part # Description Qty Price
58511E - CLIP(FOR FRONT FLOOR MAT)
90467-0906803

CE96,EE96..STD

SHADOW GRAY,TRIM1#

 2
58533A - COVER, FLOOR CARPET, CENTER RH
58533-12020

AE91,92,CE90,96,EE9#

 1
58534A - MAT, TRANSMISSION COVER
58534-12010

AE9#,CE9#,EE9#

 1
58551C - CLIP(FOR FLOOR MAT, REAR)
90467-0604903

CE96,EE96..STD

GRAY,TRIM1#

 3
Common parts
67771-14040
90168-40093
90467-05050
93530-24016
