EE96V-BXKNS (1988)
Toyota Sprinter
Production
Aug 1988
-
Aug 1991
Engine
2E
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8908- )2E..EE96

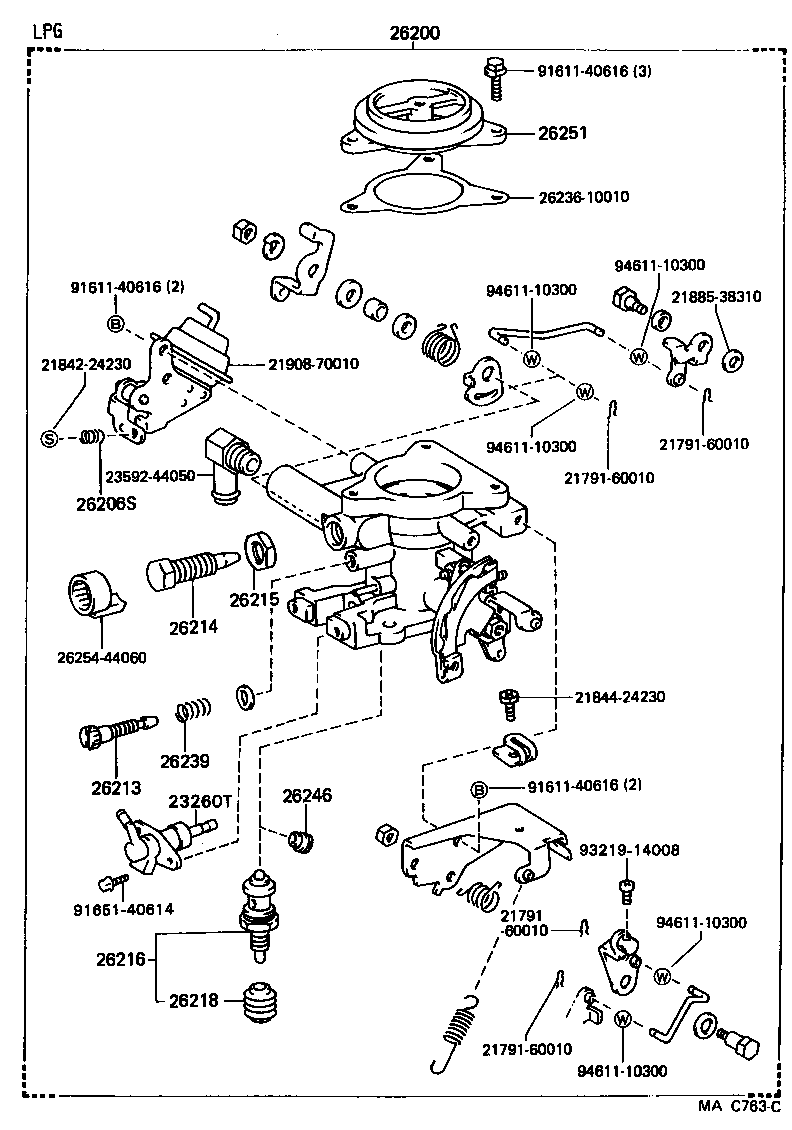

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23260T - INJECTOR ASSY, LPG | ||||
| 23260-11020 |
2E..EE96..4F LPG ﾊﾞﾝ |
1 | ||
| 26200 - CARBURETOR ASSY, LPG | ||||
| 26200-10011 |
2E..EE96..4F LPG ﾊﾞﾝ |
1 | ||
| 26206S - SPRING, IDLE ADJUST SCREW(FOR LPG) | ||||
| 21723-21030 |
2E..EE96..4F LPG ﾊﾞﾝ |
1 | ||
| 26213 - SCREW, ADJUST | ||||
| 26214-44060 |
2E..EE96..4F LPG ﾊﾞﾝ |
1 | ||
| 26214 - SCREW, POWER ADJUST | ||||
| 26214-72010 |
2E..EE96..4F LPG ﾊﾞﾝ |
1 | ||
| 26215 - NUT, POWER ADJUST | ||||
| 26215-41010 |
2E..EE96..4F LPG ﾊﾞﾝ |
1 | ||
| 26216 - VALVE, POWER | ||||
| 26216-10010 |
2E..EE96..4F LPG ﾊﾞﾝ |
1 | ||
| 26218 - BOOT(FOR POWER VALVE) | ||||
| 26218-44061 |
2E..EE96..4F LPG ﾊﾞﾝ |
1 | ||
| 26239 - SPRING | ||||
| 26239-44060 |
2E..EE96..4F LPG ﾊﾞﾝ |
1 | ||
| 26246 - JET | ||||
| 26246-41030 |
2E..EE96..4F LPG ﾊﾞﾝ |
1 | ||
| 26251 - HORN, AIR | ||||
| 26251-10010 |
2E..EE96..4F LPG ﾊﾞﾝ |
1 | ||
| Common parts | ||||
| 21791-60010 | ||||
| 21842-24230 | ||||
| 21844-24230 | ||||
| 21885-38310 | ||||
| 21908-70010 | ||||
| 23592-44050 | ||||
| 26236-10010 | ||||
| 26254-44060 | ||||
| 91611-40616 | ||||
| 91651-40614 | ||||
| 93219-14008 | ||||
| 94611-10300 | ||||
