Toyota Sprinter EE90 VACUUM PIPING

EE90-BEKNS (1987)

Toyota Sprinter

Production May 1987 - Jun 1991

Engine 2E

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8705- )2E,3E

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008

(8905- )2E..EE90

Click highlighted areas on diagram

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-11071	2E..EE90	05/1987 - 10/1987	1
17303-11310	2E..EE90..LX,MX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)	05/1987 - 05/1989	1
17303-11450	2E..EE90..4F NO.2	05/1989 - 06/1991	1
17303-11390	2E..EE90 NO.1	05/1989 - 06/1991	1
17303-11072	2E..EE90	10/1987 - 05/1989	1
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-11071	2E..EE90	05/1987 - 10/1987	1
17303-11310	2E..EE90..LX,MX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)	05/1987 - 05/1989	1
17303-11450	2E..EE90..4F NO.2	05/1989 - 06/1991	1
17303-11390	2E..EE90 NO.1	05/1989 - 06/1991	1
17303-11072	2E..EE90	10/1987 - 05/1989	1
17650 - VALVE ASSY, VACUUM SWITCHING
25860-11130	2E..EE90 NO.3	05/1989 - 06/1991	1
25860-11110	2E..EE90 NO.4	05/1989 - 06/1991	1
90910-12045	2E..EE90..4F NO.5	05/1989 - 06/1991	1
90910-12009	2E,3E..EE90,98 NO.2	05/1987 - 08/1989	1
90910-12047	2E..EE90 NO.1	05/1989 - 06/1991	1
90910-12008	2E,3E..EE90,98 NO.1	05/1987 - 05/1989	1
17650 - VALVE ASSY, VACUUM SWITCHING
25860-11130	2E..EE90 NO.3	05/1989 - 06/1991	1
25860-11110	2E..EE90 NO.4	05/1989 - 06/1991	1
90910-12045	2E..EE90..4F NO.5	05/1989 - 06/1991	1
90910-12009	2E,3E..EE90,98 NO.2	05/1987 - 08/1989	1
90910-12047	2E..EE90 NO.1	05/1989 - 06/1991	1
90910-12008	2E,3E..EE90,98 NO.1	05/1987 - 05/1989	1
17650 - VALVE ASSY, VACUUM SWITCHING
25860-11130	2E..EE90 NO.3	05/1989 - 06/1991	1
25860-11110	2E..EE90 NO.4	05/1989 - 06/1991	1
90910-12045	2E..EE90..4F NO.5	05/1989 - 06/1991	1
90910-12009	2E,3E..EE90,98 NO.2	05/1987 - 08/1989	1
90910-12047	2E..EE90 NO.1	05/1989 - 06/1991	1
90910-12008	2E,3E..EE90,98 NO.1	05/1987 - 05/1989	1
17650 - VALVE ASSY, VACUUM SWITCHING
25860-11130	2E..EE90 NO.3	05/1989 - 06/1991	1
25860-11110	2E..EE90 NO.4	05/1989 - 06/1991	1
90910-12045	2E..EE90..4F NO.5	05/1989 - 06/1991	1
90910-12009	2E,3E..EE90,98 NO.2	05/1987 - 08/1989	1
90910-12047	2E..EE90 NO.1	05/1989 - 06/1991	1
90910-12008	2E,3E..EE90,98 NO.1	05/1987 - 05/1989	1
17650 - VALVE ASSY, VACUUM SWITCHING
25860-11130	2E..EE90 NO.3	05/1989 - 06/1991	1
25860-11110	2E..EE90 NO.4	05/1989 - 06/1991	1
90910-12045	2E..EE90..4F NO.5	05/1989 - 06/1991	1
90910-12009	2E,3E..EE90,98 NO.2	05/1987 - 08/1989	1
90910-12047	2E..EE90 NO.1	05/1989 - 06/1991	1
90910-12008	2E,3E..EE90,98 NO.1	05/1987 - 05/1989	1
17650 - VALVE ASSY, VACUUM SWITCHING
25860-11130	2E..EE90 NO.3	05/1989 - 06/1991	1
25860-11110	2E..EE90 NO.4	05/1989 - 06/1991	1
90910-12045	2E..EE90..4F NO.5	05/1989 - 06/1991	1
90910-12009	2E,3E..EE90,98 NO.2	05/1987 - 08/1989	1
90910-12047	2E..EE90 NO.1	05/1989 - 06/1991	1
90910-12008	2E,3E..EE90,98 NO.1	05/1987 - 05/1989	1
21999 - BRACKET, VACUUM SWITCHING VALVE
21999-11050	2E..EE90..4F NO.2	05/1989 - 06/1991	1
21999-11040	2E..EE90 NO.1	08/1989 - 06/1991	1
21999-11040	2E..EE90..4F NO.1	05/1989 - 08/1989	1
21999 - BRACKET, VACUUM SWITCHING VALVE
21999-11050	2E..EE90..4F NO.2	05/1989 - 06/1991	1
21999-11040	2E..EE90 NO.1	08/1989 - 06/1991	1
21999-11040	2E..EE90..4F NO.1	05/1989 - 08/1989	1
21999 - BRACKET, VACUUM SWITCHING VALVE
21999-11050	2E..EE90..4F NO.2	05/1989 - 06/1991	1
21999-11040	2E..EE90 NO.1	08/1989 - 06/1991	1
21999-11040	2E..EE90..4F NO.1	05/1989 - 08/1989	1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25820-11040	2E..EE90	05/1989 - 08/1989	1
23265 - FILTER, GAS, NO.1
90917-11024	2E..EE90	05/1987 - 05/1989	1
90917-11027	2E..EE90..4F NO.1,AISIN	05/1989 - 08/1989	1
90917-11021	2E..EE90 NO.2	05/1989 - 06/1991	1
23265 - FILTER, GAS, NO.1
90917-11024	2E..EE90	05/1987 - 05/1989	1
90917-11027	2E..EE90..4F NO.1,AISIN	05/1989 - 08/1989	1
90917-11021	2E..EE90 NO.2	05/1989 - 06/1991	1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01099	2E..EE90	05/1987 - 05/1989	1
90925-01091	2E..EE90	05/1989 - 06/1991	1
23288 - JET, NO.1
90925-04029	2E..EE90	05/1989 - 06/1991	1
23288 - JET, NO.1
90925-04029	2E..EE90	05/1989 - 06/1991	1
25810 - VALVE ASSY, BIMETAL
90925-05071	2E..EE90	05/1989 - 06/1991	1
Common parts
90413-04005
90447-04075
90464-00074
90464-00394
90999-92002
91611-60812
91631-40620
91651-40816

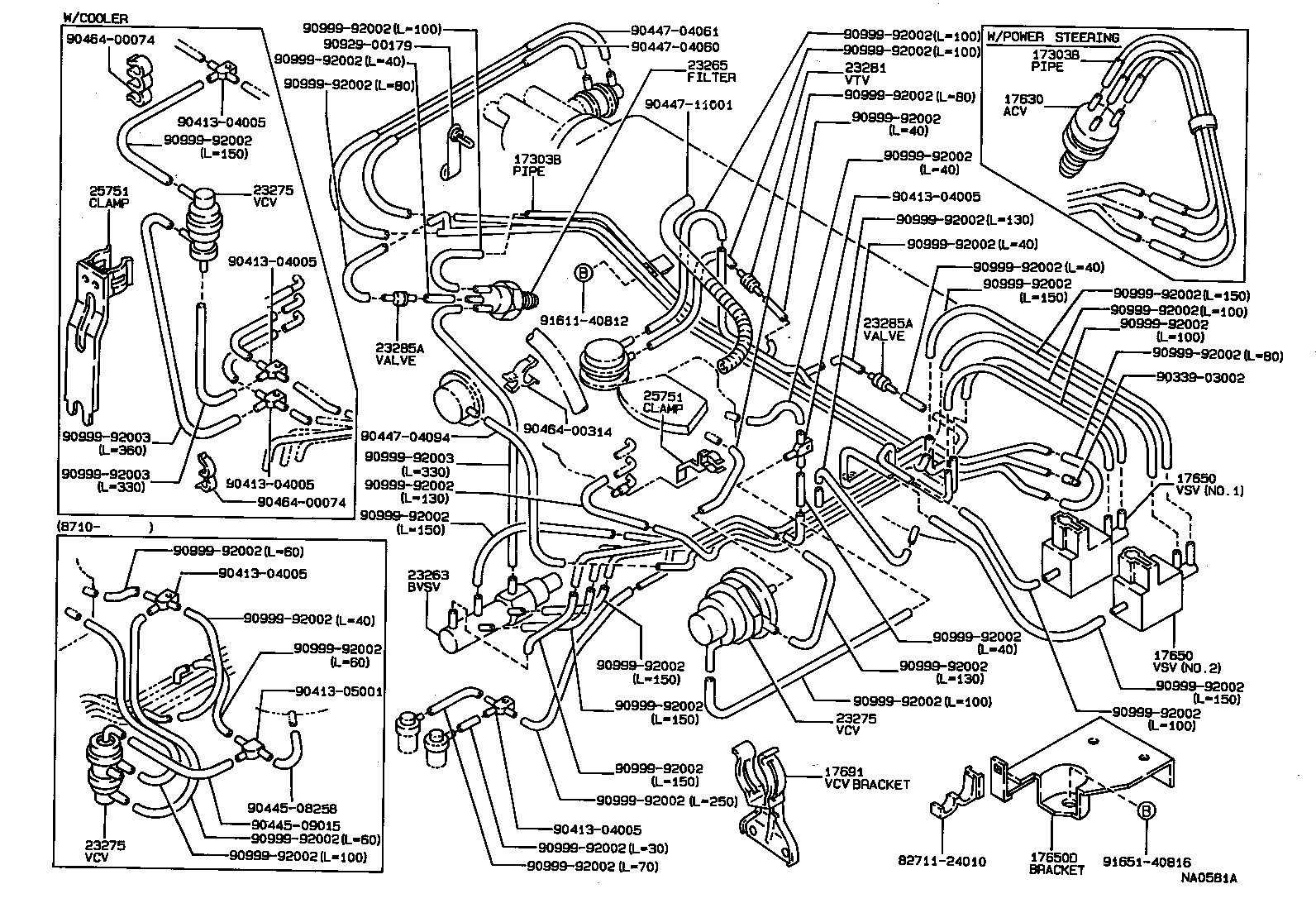

(8705-8905)2E..EE90

Click highlighted areas on diagram

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-11071	2E..EE90	05/1987 - 10/1987	1
17303-11310	2E..EE90..LX,MX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)	05/1987 - 05/1989	1
17303-11450	2E..EE90..4F NO.2	05/1989 - 06/1991	1
17303-11390	2E..EE90 NO.1	05/1989 - 06/1991	1
17303-11072	2E..EE90	10/1987 - 05/1989	1
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-11071	2E..EE90	05/1987 - 10/1987	1
17303-11310	2E..EE90..LX,MX ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)	05/1987 - 05/1989	1
17303-11450	2E..EE90..4F NO.2	05/1989 - 06/1991	1
17303-11390	2E..EE90 NO.1	05/1989 - 06/1991	1
17303-11072	2E..EE90	10/1987 - 05/1989	1
17630 - VALVE ASSY, AIR CONTROL
17630-28020	2E,3E..EE96,98;2E..EE90..LX,MX	05/1987 - 05/1989	1
17650 - VALVE ASSY, VACUUM SWITCHING
25860-11130	2E..EE90 NO.3	05/1989 - 06/1991	1
25860-11110	2E..EE90 NO.4	05/1989 - 06/1991	1
90910-12045	2E..EE90..4F NO.5	05/1989 - 06/1991	1
90910-12009	2E,3E..EE90,98 NO.2	05/1987 - 08/1989	1
90910-12047	2E..EE90 NO.1	05/1989 - 06/1991	1
90910-12008	2E,3E..EE90,98 NO.1	05/1987 - 05/1989	1
17650 - VALVE ASSY, VACUUM SWITCHING
25860-11130	2E..EE90 NO.3	05/1989 - 06/1991	1
25860-11110	2E..EE90 NO.4	05/1989 - 06/1991	1
90910-12045	2E..EE90..4F NO.5	05/1989 - 06/1991	1
90910-12009	2E,3E..EE90,98 NO.2	05/1987 - 08/1989	1
90910-12047	2E..EE90 NO.1	05/1989 - 06/1991	1
90910-12008	2E,3E..EE90,98 NO.1	05/1987 - 05/1989	1
17650D - BRACKET, VACUUM SWITCHING VALVE
21999-11011	2E,3E..EE90,98	05/1987 - 05/1989	1
17691 - BRACKET, VACUUM CONTROL VALVE, NO.1
17691-11010	2E..EE90	10/1987 - 05/1989	1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
90925-02081	2E..EE90	05/1987 - 05/1989	1
23265 - FILTER, GAS, NO.1
90917-11024	2E..EE90	05/1987 - 05/1989	1
90917-11027	2E..EE90..4F NO.1,AISIN	05/1989 - 08/1989	1
90917-11021	2E..EE90 NO.2	05/1989 - 06/1991	1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03171	2E..EE90	10/1987 - 05/1989	1
90925-03164	2E,3E..EE9#..MTM ｱﾘ(ｴｱｺﾝ)	05/1987 - 05/1989	1
90925-03156	2E..EE90	05/1987 - 10/1987	1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03171	2E..EE90	10/1987 - 05/1989	1
90925-03164	2E,3E..EE9#..MTM ｱﾘ(ｴｱｺﾝ)	05/1987 - 05/1989	1
90925-03156	2E..EE90	05/1987 - 10/1987	1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03171	2E..EE90	10/1987 - 05/1989	1
90925-03164	2E,3E..EE9#..MTM ｱﾘ(ｴｱｺﾝ)	05/1987 - 05/1989	1
90925-03156	2E..EE90	05/1987 - 10/1987	1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01099	2E..EE90	05/1987 - 05/1989	1
90925-01091	2E..EE90	05/1989 - 06/1991	1
23285A - VALVE, CHECK, NO.1
90917-10049	2E,3E..EE9# NO.1	05/1988 - 05/1989	2
90917-10049	2E..EE90	05/1987 - 05/1988	2
23285A - VALVE, CHECK, NO.1
90917-10049	2E,3E..EE9# NO.1	05/1988 - 05/1989	2
90917-10049	2E..EE90	05/1987 - 05/1988	2
25751 - CLAMP, VACUUM CONTROL VALVE, NO.1
25751-11040	2E..EE90	05/1987 - 10/1987	1
25751-11020	2E..EE90 ｱﾘ(ｴｱｺﾝ)	05/1987 - 10/1987	1
25751-11020	2E,3E..EE9#	10/1987 - 05/1989	1
25751 - CLAMP, VACUUM CONTROL VALVE, NO.1
25751-11040	2E..EE90	05/1987 - 10/1987	1
25751-11020	2E..EE90 ｱﾘ(ｴｱｺﾝ)	05/1987 - 10/1987	1
25751-11020	2E,3E..EE9#	10/1987 - 05/1989	1
Common parts
82711-24010
90339-03002
90413-04005
90413-05001
90445-08258
90445-09015
90447-04060
90447-04061
90447-04094
90447-11001
90464-00074
90464-00314
90929-00179
90999-92002
90999-92003
91611-40812
91651-40816

EE90-BEKNS (1987)

(8705- )2E,3E

(8905- )2E..EE90

(8705-8905)2E..EE90
