EE90-BEKDS (1987)
Toyota Sprinter

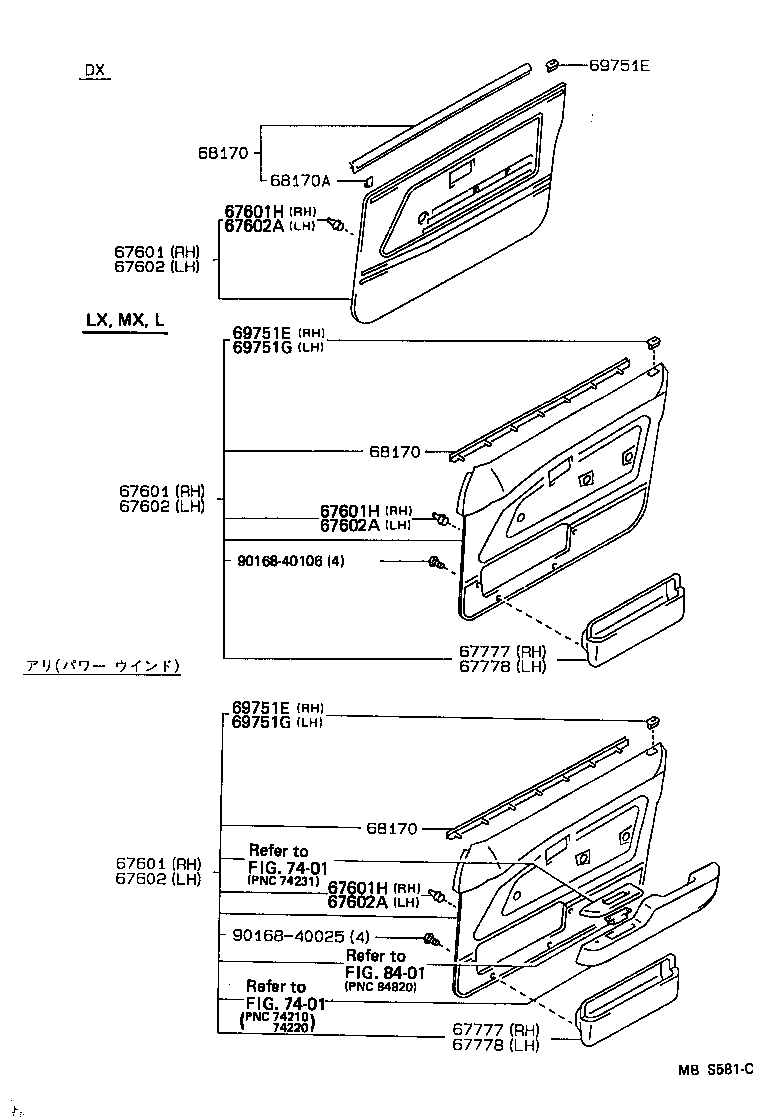

ILLUST NO. 2 OF 2(8905- )AE91,95,CE90,95,EE90..DX,L,LX,MX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1A58005 |
AE91,95,CE90,EE90..AV1,L,LX DARK BEIGE,TRIM4# |
1 | ||
| 67650-1A58003 |
AE91,95,CE90,EE90..AV1,L,LX SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A16003 |
AE91,EE90..LX ﾘｾ,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A24004 |
AE91,95,CE90,95,EE90..LX DARK BLUE,TRIM8# |
1 | ||
| 67650-1A24003 |
AE91,95,CE90,95,EE90..LX SHADOW GRAY,TRIM1# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1A58005 |
AE91,95,CE90,EE90..AV1,L,LX DARK BEIGE,TRIM4# |
1 | ||
| 67650-1A58003 |
AE91,95,CE90,EE90..AV1,L,LX SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A16003 |
AE91,EE90..LX ﾘｾ,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A24004 |
AE91,95,CE90,95,EE90..LX DARK BLUE,TRIM8# |
1 | ||
| 67650-1A24003 |
AE91,95,CE90,95,EE90..LX SHADOW GRAY,TRIM1# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1A58005 |
AE91,95,CE90,EE90..AV1,L,LX DARK BEIGE,TRIM4# |
1 | ||
| 67650-1A58003 |
AE91,95,CE90,EE90..AV1,L,LX SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A16003 |
AE91,EE90..LX ﾘｾ,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A24004 |
AE91,95,CE90,95,EE90..LX DARK BLUE,TRIM8# |
1 | ||
| 67650-1A24003 |
AE91,95,CE90,95,EE90..LX SHADOW GRAY,TRIM1# |
1 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS |
10 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS |
10 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS |
10 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1E53003 |
AE91,95,CE90,EE90..AV1,L,LX SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E53005 |
AE91,95,CE90,EE90..AV1,L,LX DARK BEIGE,TRIM4# |
1 | ||
| 67620-1H26003 |
AE91,EE90..LX ﾘｾ,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E46003 |
AE91,95,CE90,95,EE90..LX SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E46004 |
AE91,95,CE90,95,EE90..LX DARK BLUE,TRIM8# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1E53003 |
AE91,95,CE90,EE90..AV1,L,LX SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E53005 |
AE91,95,CE90,EE90..AV1,L,LX DARK BEIGE,TRIM4# |
1 | ||
| 67620-1H26003 |
AE91,EE90..LX ﾘｾ,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E46003 |
AE91,95,CE90,95,EE90..LX SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E46004 |
AE91,95,CE90,95,EE90..LX DARK BLUE,TRIM8# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1E53003 |
AE91,95,CE90,EE90..AV1,L,LX SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E53005 |
AE91,95,CE90,EE90..AV1,L,LX DARK BEIGE,TRIM4# |
1 | ||
| 67620-1H26003 |
AE91,EE90..LX ﾘｾ,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E46003 |
AE91,95,CE90,95,EE90..LX SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E46004 |
AE91,95,CE90,95,EE90..LX DARK BLUE,TRIM8# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS |
10 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS |
10 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS |
10 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-1207005 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4# |
1 | ||
| 67777-1207003 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1# |
1 | ||
| 67777-1207004 |
AE91,95,CE90,EE90..L,LX,MX DARK BLUE,TRIM8# |
1 | ||
| 67777-1207004 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS DARK BLUE,TRIM8# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-1207005 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4# |
1 | ||
| 67777-1207003 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1# |
1 | ||
| 67777-1207004 |
AE91,95,CE90,EE90..L,LX,MX DARK BLUE,TRIM8# |
1 | ||
| 67777-1207004 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS DARK BLUE,TRIM8# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-12130 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS 左側 |
1 | ||
| 68171-12200 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS 右側 |
1 | ||
| 68171-12200 |
AE91,95,CE90,EE90..L,LX,MX 右側 |
1 | ||
| 68172-12130 |
AE91,95,CE90,EE90..L,LX,MX 左側 |
1 | ||
| 68172-12130 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS 左側 |
1 | ||
| 68171-12200 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS 右側 |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-12130 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS 左側 |
1 | ||
| 68171-12200 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS 右側 |
1 | ||
| 68171-12200 |
AE91,95,CE90,EE90..L,LX,MX 右側 |
1 | ||
| 68172-12130 |
AE91,95,CE90,EE90..L,LX,MX 左側 |
1 | ||
| 68172-12130 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS 左側 |
1 | ||
| 68171-12200 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS 右側 |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-12130 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS 左側 |
1 | ||
| 68171-12200 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS 右側 |
1 | ||
| 68171-12200 |
AE91,95,CE90,EE90..L,LX,MX 右側 |
1 | ||
| 68172-12130 |
AE91,95,CE90,EE90..L,LX,MX 左側 |
1 | ||
| 68172-12130 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS 左側 |
1 | ||
| 68171-12200 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS 右側 |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006025 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006003 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203005 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203003 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203004 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS DARK BLUE,TRIM8# |
1 | ||
| 69751-1203004 |
AE91,95,CE90,EE90..L,LX,MX DARK BLUE,TRIM8# |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006025 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006003 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203005 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203003 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203004 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS DARK BLUE,TRIM8# |
1 | ||
| 69751-1203004 |
AE91,95,CE90,EE90..L,LX,MX DARK BLUE,TRIM8# |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006025 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006003 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203005 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203003 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203004 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS DARK BLUE,TRIM8# |
1 | ||
| 69751-1203004 |
AE91,95,CE90,EE90..L,LX,MX DARK BLUE,TRIM8# |
1 | ||
| 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006003 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006025 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203004 |
AE91,95,CE90,EE90..L,LX,MX DARK BLUE,TRIM8# |
1 | ||
| 69751-1203003 |
AE91,95,CE90,EE90..L,LX,MX SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203004 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS DARK BLUE,TRIM8# |
1 | ||
| 69751-1203003 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1# |
1 | ||
| 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006003 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006025 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203004 |
AE91,95,CE90,EE90..L,LX,MX DARK BLUE,TRIM8# |
1 | ||
| 69751-1203003 |
AE91,95,CE90,EE90..L,LX,MX SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203004 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS DARK BLUE,TRIM8# |
1 | ||
| 69751-1203003 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90168-40025 | ||||
| 90168-40106 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8401 | ||||

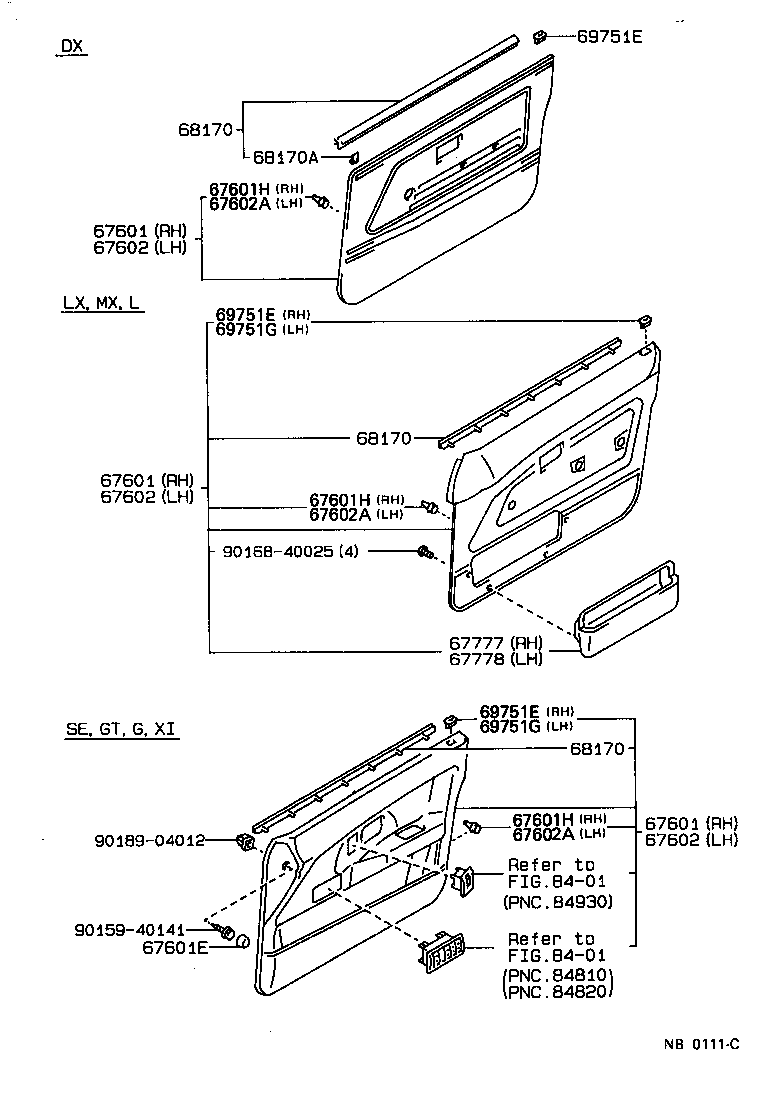

ILLUST NO. 2 OF 2(8705-8905)4D,5D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1A58005 |
AE91,95,CE90,EE90..AV1,L,LX DARK BEIGE,TRIM4# |
1 | ||
| 67650-1A58003 |
AE91,95,CE90,EE90..AV1,L,LX SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A16003 |
AE91,EE90..LX ﾘｾ,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A24004 |
AE91,95,CE90,95,EE90..LX DARK BLUE,TRIM8# |
1 | ||
| 67650-1A24003 |
AE91,95,CE90,95,EE90..LX SHADOW GRAY,TRIM1# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1A58005 |
AE91,95,CE90,EE90..AV1,L,LX DARK BEIGE,TRIM4# |
1 | ||
| 67650-1A58003 |
AE91,95,CE90,EE90..AV1,L,LX SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A16003 |
AE91,EE90..LX ﾘｾ,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A24004 |
AE91,95,CE90,95,EE90..LX DARK BLUE,TRIM8# |
1 | ||
| 67650-1A24003 |
AE91,95,CE90,95,EE90..LX SHADOW GRAY,TRIM1# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1A58005 |
AE91,95,CE90,EE90..AV1,L,LX DARK BEIGE,TRIM4# |
1 | ||
| 67650-1A58003 |
AE91,95,CE90,EE90..AV1,L,LX SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A16003 |
AE91,EE90..LX ﾘｾ,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1A24004 |
AE91,95,CE90,95,EE90..LX DARK BLUE,TRIM8# |
1 | ||
| 67650-1A24003 |
AE91,95,CE90,95,EE90..LX SHADOW GRAY,TRIM1# |
1 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS |
10 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS |
10 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS |
10 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1E53003 |
AE91,95,CE90,EE90..AV1,L,LX SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E53005 |
AE91,95,CE90,EE90..AV1,L,LX DARK BEIGE,TRIM4# |
1 | ||
| 67620-1H26003 |
AE91,EE90..LX ﾘｾ,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E46003 |
AE91,95,CE90,95,EE90..LX SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E46004 |
AE91,95,CE90,95,EE90..LX DARK BLUE,TRIM8# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1E53003 |
AE91,95,CE90,EE90..AV1,L,LX SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E53005 |
AE91,95,CE90,EE90..AV1,L,LX DARK BEIGE,TRIM4# |
1 | ||
| 67620-1H26003 |
AE91,EE90..LX ﾘｾ,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E46003 |
AE91,95,CE90,95,EE90..LX SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E46004 |
AE91,95,CE90,95,EE90..LX DARK BLUE,TRIM8# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1E53003 |
AE91,95,CE90,EE90..AV1,L,LX SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E53005 |
AE91,95,CE90,EE90..AV1,L,LX DARK BEIGE,TRIM4# |
1 | ||
| 67620-1H26003 |
AE91,EE90..LX ﾘｾ,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E46003 |
AE91,95,CE90,95,EE90..LX SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1E46004 |
AE91,95,CE90,95,EE90..LX DARK BLUE,TRIM8# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS |
10 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS |
10 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS |
10 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-1207005 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4# |
1 | ||
| 67777-1207003 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1# |
1 | ||
| 67777-1207004 |
AE91,95,CE90,EE90..L,LX,MX DARK BLUE,TRIM8# |
1 | ||
| 67777-1207004 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS DARK BLUE,TRIM8# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-12130 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS 左側 |
1 | ||
| 68171-12200 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS 右側 |
1 | ||
| 68171-12200 |
AE91,95,CE90,EE90..L,LX,MX 右側 |
1 | ||
| 68172-12130 |
AE91,95,CE90,EE90..L,LX,MX 左側 |
1 | ||
| 68172-12130 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS 左側 |
1 | ||
| 68171-12200 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS 右側 |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-12130 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS 左側 |
1 | ||
| 68171-12200 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS 右側 |
1 | ||
| 68171-12200 |
AE91,95,CE90,EE90..L,LX,MX 右側 |
1 | ||
| 68172-12130 |
AE91,95,CE90,EE90..L,LX,MX 左側 |
1 | ||
| 68172-12130 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS 左側 |
1 | ||
| 68171-12200 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS 右側 |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-12130 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS 左側 |
1 | ||
| 68171-12200 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS 右側 |
1 | ||
| 68171-12200 |
AE91,95,CE90,EE90..L,LX,MX 右側 |
1 | ||
| 68172-12130 |
AE91,95,CE90,EE90..L,LX,MX 左側 |
1 | ||
| 68172-12130 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS 左側 |
1 | ||
| 68171-12200 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS 右側 |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006025 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006003 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203005 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203003 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203004 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS DARK BLUE,TRIM8# |
1 | ||
| 69751-1203004 |
AE91,95,CE90,EE90..L,LX,MX DARK BLUE,TRIM8# |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006025 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006003 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203005 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203003 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203004 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS DARK BLUE,TRIM8# |
1 | ||
| 69751-1203004 |
AE91,95,CE90,EE90..L,LX,MX DARK BLUE,TRIM8# |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006025 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4# |
1 | ||
| 69751-2006003 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203005 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203003 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203004 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS DARK BLUE,TRIM8# |
1 | ||
| 69751-1203004 |
AE91,95,CE90,EE90..L,LX,MX DARK BLUE,TRIM8# |
1 | ||
| 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006003 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006025 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203004 |
AE91,95,CE90,EE90..L,LX,MX DARK BLUE,TRIM8# |
1 | ||
| 69751-1203003 |
AE91,95,CE90,EE90..L,LX,MX SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203004 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS DARK BLUE,TRIM8# |
1 | ||
| 69751-1203003 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1# |
1 | ||
| 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006003 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1# |
1 | ||
| 69751-2006025 |
AE91,95,CE90,EE90..AV1,L,LX,MX,RVS DARK BEIGE,TRIM4# |
1 | ||
| 69751-1203004 |
AE91,95,CE90,EE90..L,LX,MX DARK BLUE,TRIM8# |
1 | ||
| 69751-1203003 |
AE91,95,CE90,EE90..L,LX,MX SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1203004 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS DARK BLUE,TRIM8# |
1 | ||
| 69751-1203003 |
AE91,95,CE90,95,EE90..AV1,L,LX,MX,RVS SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90159-40141 | ||||
| 90168-40025 | ||||
| 90189-04012 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(8705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-1A240 |
AE9#,CE90,EE90 |
1 | ||
| 67001-1A241 |
AE9#,CE90,95,EE90 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09035 |
AE9#,CE9#,EE9# |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-1A220 |
AE9#,CE90,EE90 |
1 | ||
| 67002-1A221 |
AE9#,CE90,95,EE90 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-12460 |
AE9#,CE90,95,EE90 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-12450 |
AE9#,CE90,95,EE90 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-12290 |
AE9#,CE9#,EE9# |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-12310 |
AE9#,CE9#,EE9# |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-12090 |
AE9#,CE90,EE90 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-12090 |
AE9#,CE90,EE90 |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-12170 |
AE95,CE90;AE91,92,EE90..DX,G,GT,L,MX,SE,XI |
1 | ||
| 67491-12170 |
AE9#,CE90,95,EE90 |
1 | ||
| 67491-12170 |
AE91,EE90..LX ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-12170 |
AE91,EE90..LX ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 67492-12170 |
AE95,CE90;AE91,92,EE90..DX,G,GT,L,MX,SE,XI |
1 | ||
| 67492-12170 |
AE9#,CE90,95,EE90 |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-12130 |
AE91,EE90..LX ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 67495-12130 |
AE91..4F..MX;AE91..DX,G,L,LX,SE,XS;AE92,95,CE90,95,EE90..AV1,AV2,DX,GT,LX,MX,RVS |
1 | ||
| 67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-12130 |
AE91,EE90..LX ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 67496-12130 |
AE91..4F..MX;AE91..DX,G,L,LX,SE,XS;AE92,95,CE90,95,EE90..AV1,AV2,DX,GT,LX,MX,RVS |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-12030 |
AE95,CE90;AE91,92,CE96,EE9#..DX,G,GT,L,MX,SE,STD,XI,XL |
2 | ||
| 67499-32010 |
CE90;AE9#,EE90..DX,G,GT,L,MX,SE,XI |
2 | ||
| 67499-12030 |
AE91,EE90..LX ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
2 | ||
| 67499-32010 |
AE91,EE90..LX ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-12360 |
AE91..XI;AE91..CBR;AE92,95,CE9#,EE9# |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67831-12360 |
AE91..XI;AE91..CBR;AE92,95,CE9#,EE9# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-12671 |
AE9#,CE90,95,EE90 |
1 | ||
| 67861-12670 |
AE9#,CE90,EE90 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-12590 |
AE9#,CE90,EE90 |
1 | ||
| 67862-12591 |
AE9#,CE90,95,EE90 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-12050 |
AE9#,CE9#,EE9# |
16 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-12050 |
AE9#,CE9#,EE9# ﾅﾁｭﾗﾙ |
16 | ||
| 67868-12080 |
AE9#,CE90,EE90..4D,5D ﾚｯﾄﾞ |
16 | ||
| 67868-12050 |
AE9#,CE9#,EE9# |
16 | ||
| 67868-12050 |
AE9#,CE9#,EE9# ﾅﾁｭﾗﾙ |
16 | ||
| 67868-12050 |
AE9#,CE9#,EE9# |
16 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-12020 |
AE9#,CE90,EE90..4D,5D |
4 | ||
| 67869-12020 |
AE9#,CE9#,EE9# |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-12570 |
AE9#,CE90,EE90..AV1,AV2,G,GT,L,LX,MX,RVS,SE,XI *TT,厚さ=3.5 |
1 | ||
| 68101-12570 |
AE92..4D;AE91,95,CE90,95,EE90..AV1,AV2,L,LX,MX,RVS,SE *TT,厚さ=3.5 |
1 | ||
| 68101-12580 |
AE95..AV2,RVS,SE;AE91,92,CE90,EE90..G,GT,L,MX,SE,XI *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-12570 |
AE9#,CE90,EE90..AV1,AV2,G,GT,L,LX,MX,RVS,SE,XI *TT,厚さ=3.5 |
1 | ||
| 68102-12570 |
AE92..4D;AE91,95,CE90,95,EE90..AV1,AV2,L,LX,MX,RVS,SE *TT,厚さ=3.5 |
1 | ||
| 68102-12580 |
AE95..AV2,RVS,SE;AE91,92,CE90,EE90..G,GT,L,MX,SE,XI *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-12351 |
AE9#,CE90,95,EE90 |
1 | ||
| 68141-12350 |
AE9#,CE90,EE90 |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-12070 |
AE9#,CE90,EE90 |
1 | ||
| 68151-12071 |
AE9#,CE90,95,EE90 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-12050 |
AE9#,CE9#,EE9# |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-22020 |
AE9#,CE9#,EE9# |
2 | ||
| Common parts | ||||
| 90119-06351 | ||||
| 90119-06361 | ||||
| 90333-25001 | ||||
| 90333-35002 | ||||
| 91655-40616 | ||||
| 93510-15014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
