EE90-BEKBS (1987)

Toyota Sprinter

Production May 1987 - Jun 1991
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )AE91,95,CE90,95,EE90..DX,LX,MX

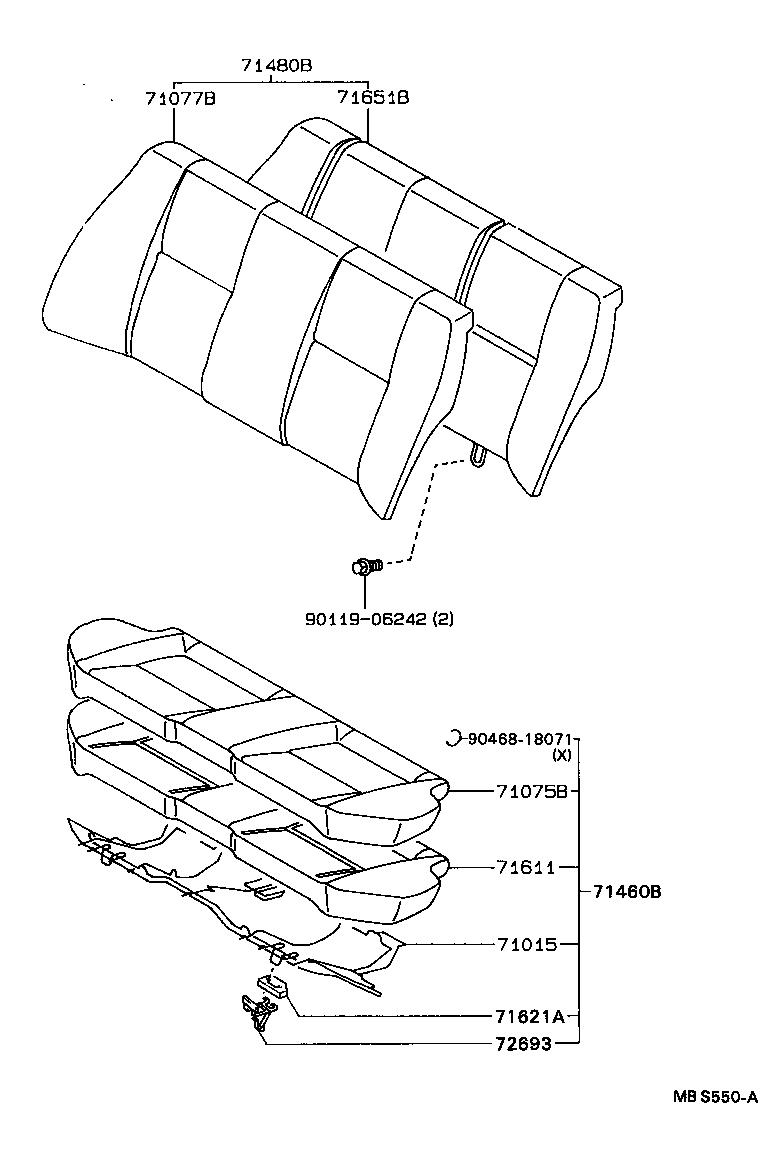

Click highlighted areas on diagram

diagram 71015 71075B 71077B 71460B 71480B 71611 71621A 71651B 72693 9011906242 9046818071
Part # Description Qty Price
71015 - FRAME SUB-ASSY, REAR SEAT CUSHION
71015-12260

AE91,92,CE90,EE90..4D

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-1E04003

AE91,CE90,EE90..DX

SHADOW GRAY,TRIM1#

 1
71075-1E03003

EE90..DX

ｶｽﾀﾑ DX,SHADOW GRAY,TRIM1#

 1
71075-1E04103

AE91,CE90,EE90..DX

SHADOW GRAY,TRIM1#

 1
71075-1E04104

AE91,CE90,EE90..DX

DARK BLUE,TRIM8#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-1H60003

AE91,CE90,EE90..DX

SHADOW GRAY,TRIM1#

 1
71077-1H59003

EE90..DX

ｶｽﾀﾑ DX,SHADOW GRAY,TRIM1#

 1
71077-1H60104

AE91,CE90,EE90..DX

DARK BLUE,TRIM8#

 1
71077-1H60103

AE91,CE90,EE90..DX

SHADOW GRAY,TRIM1#

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-1E20003

AE91,CE90,EE90..DX

***,SHADOW GRAY,TRIM1#

 1
71460-1E19003

EE90..DX

***,ｶｽﾀﾑ DX,SHADOW GRAY,TRIM1#

 1
71460-1E20104

AE91,CE90,EE90..DX

***,DARK BLUE,TRIM8#

 1
71460-1E20103

AE91,CE90,EE90..DX

***,SHADOW GRAY,TRIM1#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-1H85003

AE91,CE90,EE90..DX

***,SHADOW GRAY,TRIM1#

 1
71480-1H84003

EE90..DX

***,ｶｽﾀﾑ DX,SHADOW GRAY,TRIM1#

 1
71480-1H85103

AE91,CE90,EE90..DX

***,SHADOW GRAY,TRIM1#

 1
71480-1H85104

AE91,CE90,EE90..DX

***,DARK BLUE,TRIM8#

 1
71611 - PAD, REAR SEAT CUSHION
71611-12550

AE91,CE90,EE90..DX,LX,MX

 1
71621A - PAD, REAR SEAT CUSHION SILENCER, A
71621-12270

AE91,92,CE90,EE90..4D

 2
71621-12270

AE91,92,CE90,EE90

 2
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71507-12040

AE91,CE90,EE90..DX,LX,MX

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-12020

AE92..4D;AE91,CE90,EE90..DX,G,LX,MX,SE,XI

 2
72693-12050

AE91,92,CE90,EE90

 2
72693-12020

AE92..4D;AE91,CE90,EE90

 2
Common parts
90119-06242
90468-18071
