EE90-BEKBS (1987)

Toyota Sprinter

Production May 1987 - Jun 1991
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

Click highlighted areas on diagram

4D

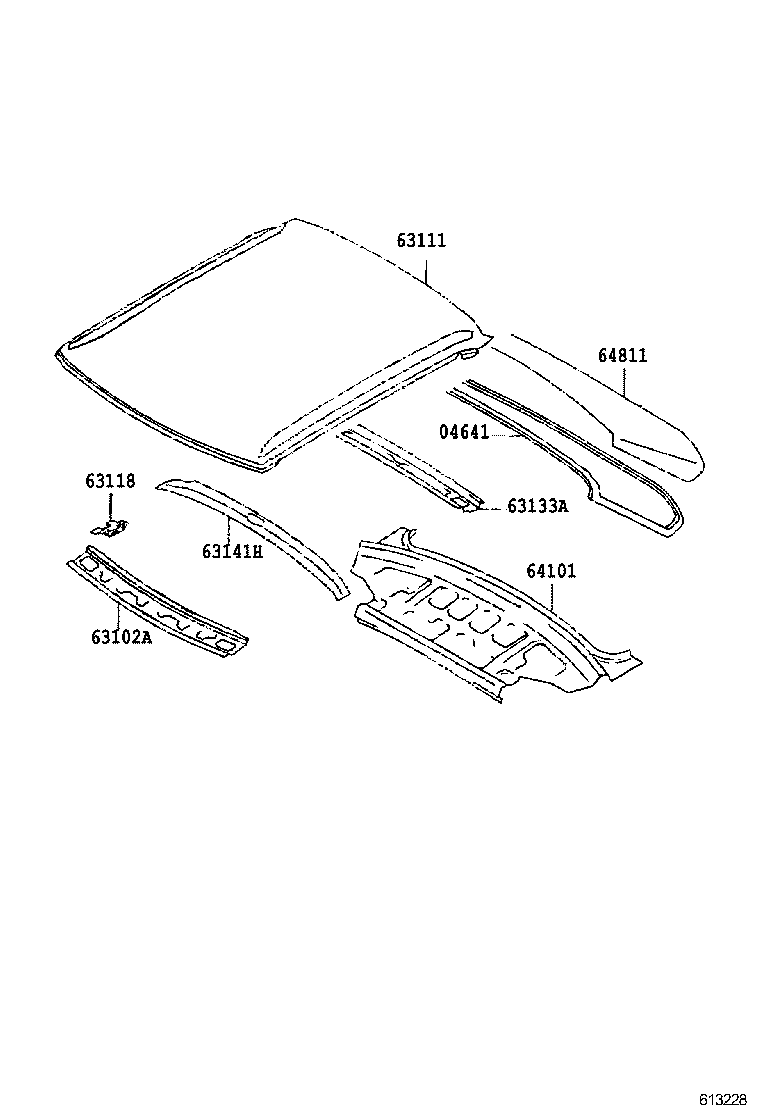

diagram 04641 63102A 63111 63118 63133A 63141H 64101 64811
Part # Description Qty Price
04641 - DAM KIT, BACK WINDOW GLASS
04562-12010

AE9#,CE9#,EE9#..4D,V,WG

 1
04562-12010

AE9#,CE9#,EE9#

 1
04562-12010

AE9#,CE90,95,EE90..4D

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-12050

AE9#,CE90,95,EE90..4D,5D

 1
63111 - PANEL, ROOF
63111-12340

AE9#,CE90,95,EE90..4D

 1
63118 - SUPPORT, ROOF PANEL, RH
63118-12040

AE9#,CE90,95,EE90..4D

 1
63133A - FRAME, BACK WINDOW, UPPER
63133-12170

AE9#,CE90,95,EE90..4D

 1
63141H - REINFORCEMENT, ROOF PANEL, CENTER
63141-12130

AE9#,CE90,95,EE90..4D,5D

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-12370

AE9#,CE90,95,EE90..4D

 1
64811 - GLASS, BACK WINDOW
64811-1A210

AE91,CE90,EE90..DX

*TEM,厚さ=3.5

 1
64811-1A220

AE91,CE90,EE90..DX

*EHT,厚さ=3.5

 1
