EE90-BEKBS (1987)

Toyota Sprinter

Production May 1987 - Jun 1991
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8905- )2E..EE90 ; (8908- )2E,3E..EE96,98

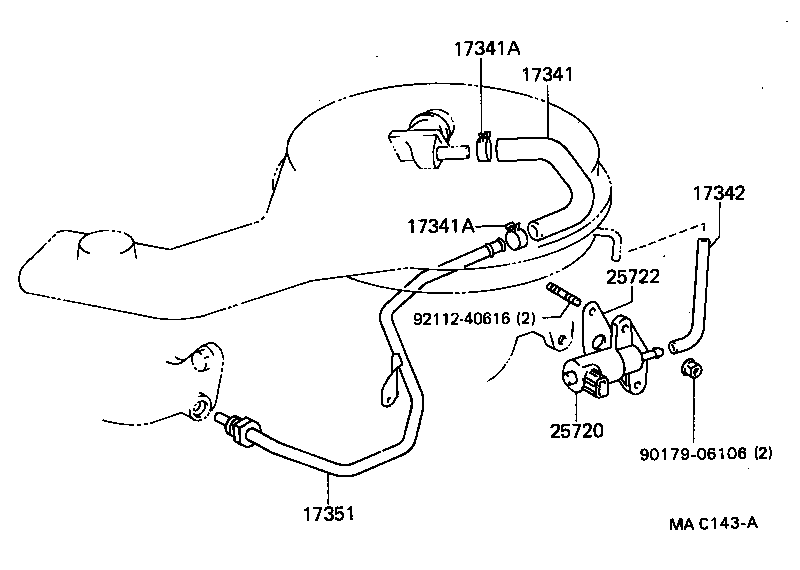

Click highlighted areas on diagram

diagram 17341 17341A 17341A 17342 17351 25720 25722 9017906106 9211240616
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-11120

2E..EE90

 1
17341-11021

2E..EE90

 1
17341-11020

2E..EE90

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-20005

2E..EE90

 2
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-20005

2E..EE90

 2
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-11030

2E..EE90

 1
17342-11090

2E..EE90

 1
17342-11031

2E..EE90

 1
17351 - MANIFOLD, AIR INJECTION
17306-11010

2E..EE90

 1
17306-11050

2E..EE90

 1
17306-11050

2E,3E..EE9#

 1
25720 - VALVE ASSY, ELECTRIC AIR CONTROL
25720-11030

2E..EE90

 1
25720-11080

2E..EE90

 2
25722 - GASKET, ELECTRIC AIR CONTROL VALVE
25722-15020

2E,3E..EE9#

 1
25722-15020

2E..EE90

 1
Common parts
90179-06106
92112-40616

(8705-8905)2E..EE90 ; (8808-8908)2E,3E..EE96,98

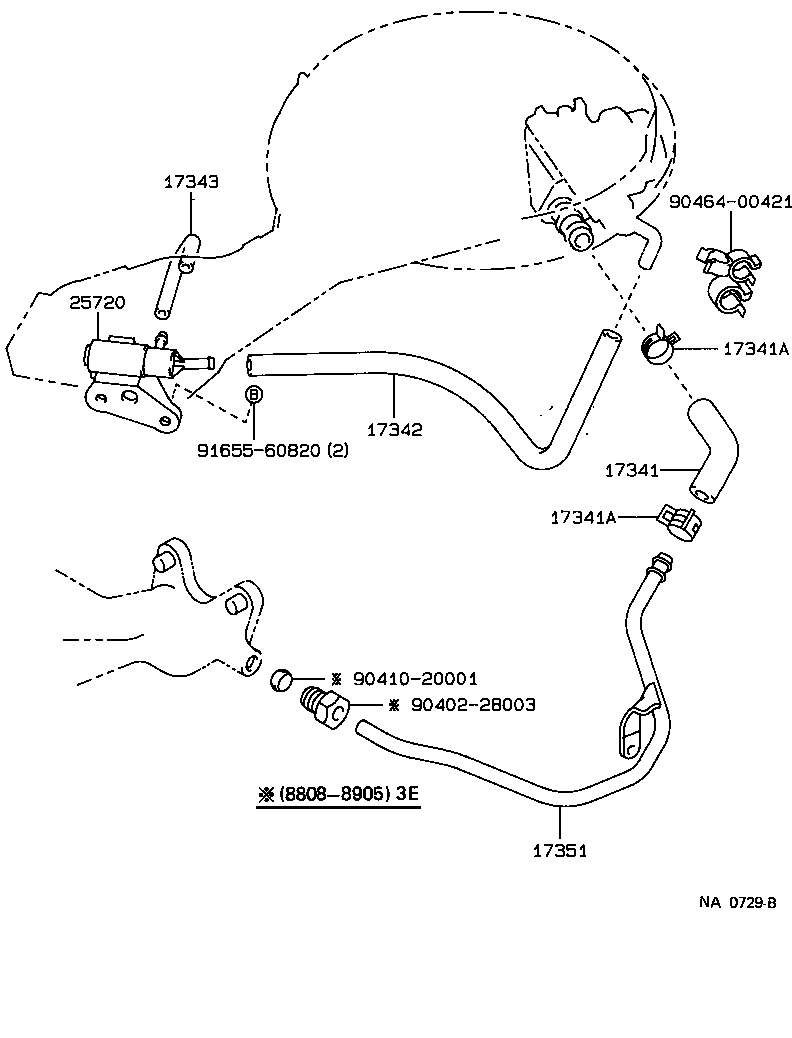

Click highlighted areas on diagram

diagram 17341 17341A 17341A 17342 17343 17351 25720 9040228003 9041020001 9046400421 9165560820
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-11120

2E..EE90

 1
17341-11021

2E..EE90

 1
17341-11020

2E..EE90

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-20005

2E..EE90

 2
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-20005

2E..EE90

 2
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-11030

2E..EE90

 1
17342-11090

2E..EE90

 1
17342-11031

2E..EE90

 1
17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17343-11050

2E..EE90

 1
17351 - MANIFOLD, AIR INJECTION
17306-11010

2E..EE90

 1
17306-11050

2E..EE90

 1
17306-11050

2E,3E..EE9#

 1
25720 - VALVE ASSY, ELECTRIC AIR CONTROL
25720-11030

2E..EE90

 1
25720-11080

2E..EE90

 2
Common parts
90402-28003
90410-20001
90464-00421
91655-60820
