EE90-BEHNS (1987)

Toyota Sprinter

Production May 1987 - Jun 1991
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )CBR

Click highlighted areas on diagram

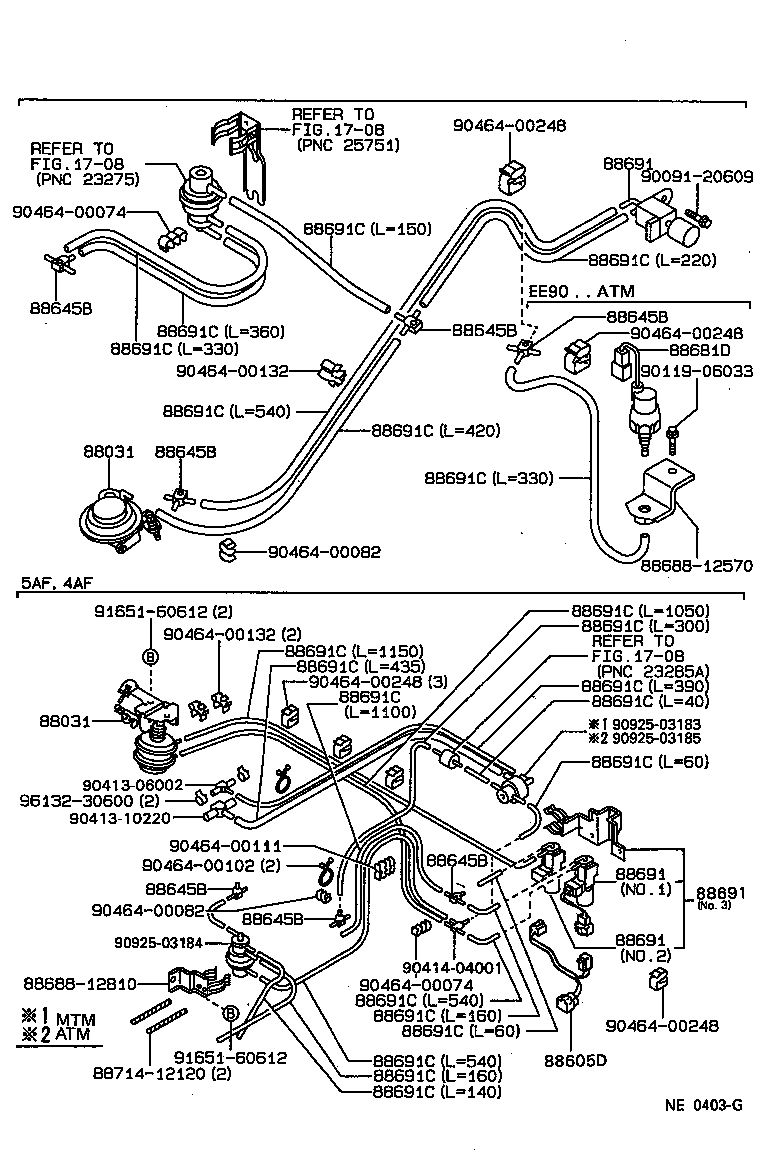

AIR CONDITIONER IDLE UP

diagram 1708 1708 1708 88031 88031 88605D 88645B 88645B 88645B 88645B 88645B 88645B 88645B 88681D 8868812570 8868812810 88691 88691 88691 88691 88691C 88691C 88691C 88691C 88691C 88691C 88691C 88691C 88691C 88691C 88691C 88691C 88691C 88691C 88691C 88691C 88691C 88691C 88691C 88691C 88691C 8871412120 9009120609 9011906033 9041306002 9041310220 9041404001 9046400074 9046400074 9046400082 9046400082 9046400102 9046400111 9046400132 9046400132 9046400248 9046400248 9046400248 9046400248 9092503183 9092503184 9092503185 9165160612 9165160612 9613230600
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-16070

EE90

 1
88031-16080

EE9#

 1
88031-12190

EE90

 1
88031 - ACTUATOR SET, IDLE-UP
88031-16070

EE90

 1
88031-16080

EE9#

 1
88031-12190

EE90

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04005

AE91,95,EE90..DX,L,LX,MX

 1
90413-04005

EE90

 2
90413-04005

EE90;AE91,EE96,98..DX,STD,XL

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04005

AE91,95,EE90..DX,L,LX,MX

 1
90413-04005

EE90

 2
90413-04005

EE90;AE91,EE96,98..DX,STD,XL

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04005

AE91,95,EE90..DX,L,LX,MX

 1
90413-04005

EE90

 2
90413-04005

EE90;AE91,EE96,98..DX,STD,XL

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04005

AE91,95,EE90..DX,L,LX,MX

 1
90413-04005

EE90

 2
90413-04005

EE90;AE91,EE96,98..DX,STD,XL

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04005

AE91,95,EE90..DX,L,LX,MX

 1
90413-04005

EE90

 2
90413-04005

EE90;AE91,EE96,98..DX,STD,XL

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04005

AE91,95,EE90..DX,L,LX,MX

 1
90413-04005

EE90

 2
90413-04005

EE90;AE91,EE96,98..DX,STD,XL

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04005

AE91,95,EE90..DX,L,LX,MX

 1
90413-04005

EE90

 2
90413-04005

EE90;AE91,EE96,98..DX,STD,XL

 1
88681D - SWITCH, VACUUM
88681-12010

EE90..3FC

 1
88610-12090

EE90..3FC

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-20040

EE90

LPG ﾊﾞﾝ

 1
88690-12600

EE90,96

 1
88690-12770

EE90

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-20040

EE90

LPG ﾊﾞﾝ

 1
88690-12600

EE90,96

 1
88690-12770

EE90

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-20040

EE90

LPG ﾊﾞﾝ

 1
88690-12600

EE90,96

 1
88690-12770

EE90

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-20040

EE90

LPG ﾊﾞﾝ

 1
88690-12600

EE90,96

 1
88690-12770

EE90

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10236

EE90

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE90;AE91,95..ATM..(L,LX,MX)

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE9#;AE91..3FC..DX

*H,L=360,ﾏｰｸ=#2

 1
90999-92003

AE9#,CE9#,EE9#

長さ=600

 1
90999-92002

AE9#,CE9#,EE9#

*H,L=300

 2
90999-92004

AE9#,CE9#,EE9#

長さ=950

 1
95411-10265

EE90

長さ=650,ﾏｰｸ=#2

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10236

EE90

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE90;AE91,95..ATM..(L,LX,MX)

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE9#;AE91..3FC..DX

*H,L=360,ﾏｰｸ=#2

 1
90999-92003

AE9#,CE9#,EE9#

長さ=600

 1
90999-92002

AE9#,CE9#,EE9#

*H,L=300

 2
90999-92004

AE9#,CE9#,EE9#

長さ=950

 1
95411-10265

EE90

長さ=650,ﾏｰｸ=#2

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10236

EE90

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE90;AE91,95..ATM..(L,LX,MX)

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE9#;AE91..3FC..DX

*H,L=360,ﾏｰｸ=#2

 1
90999-92003

AE9#,CE9#,EE9#

長さ=600

 1
90999-92002

AE9#,CE9#,EE9#

*H,L=300

 2
90999-92004

AE9#,CE9#,EE9#

長さ=950

 1
95411-10265

EE90

長さ=650,ﾏｰｸ=#2

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10236

EE90

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE90;AE91,95..ATM..(L,LX,MX)

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE9#;AE91..3FC..DX

*H,L=360,ﾏｰｸ=#2

 1
90999-92003

AE9#,CE9#,EE9#

長さ=600

 1
90999-92002

AE9#,CE9#,EE9#

*H,L=300

 2
90999-92004

AE9#,CE9#,EE9#

長さ=950

 1
95411-10265

EE90

長さ=650,ﾏｰｸ=#2

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10236

EE90

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE90;AE91,95..ATM..(L,LX,MX)

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE9#;AE91..3FC..DX

*H,L=360,ﾏｰｸ=#2

 1
90999-92003

AE9#,CE9#,EE9#

長さ=600

 1
90999-92002

AE9#,CE9#,EE9#

*H,L=300

 2
90999-92004

AE9#,CE9#,EE9#

長さ=950

 1
95411-10265

EE90

長さ=650,ﾏｰｸ=#2

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10236

EE90

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE90;AE91,95..ATM..(L,LX,MX)

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE9#;AE91..3FC..DX

*H,L=360,ﾏｰｸ=#2

 1
90999-92003

AE9#,CE9#,EE9#

長さ=600

 1
90999-92002

AE9#,CE9#,EE9#

*H,L=300

 2
90999-92004

AE9#,CE9#,EE9#

長さ=950

 1
95411-10265

EE90

長さ=650,ﾏｰｸ=#2

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10236

EE90

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE90;AE91,95..ATM..(L,LX,MX)

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE9#;AE91..3FC..DX

*H,L=360,ﾏｰｸ=#2

 1
90999-92003

AE9#,CE9#,EE9#

長さ=600

 1
90999-92002

AE9#,CE9#,EE9#

*H,L=300

 2
90999-92004

AE9#,CE9#,EE9#

長さ=950

 1
95411-10265

EE90

長さ=650,ﾏｰｸ=#2

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10236

EE90

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE90;AE91,95..ATM..(L,LX,MX)

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE9#;AE91..3FC..DX

*H,L=360,ﾏｰｸ=#2

 1
90999-92003

AE9#,CE9#,EE9#

長さ=600

 1
90999-92002

AE9#,CE9#,EE9#

*H,L=300

 2
90999-92004

AE9#,CE9#,EE9#

長さ=950

 1
95411-10265

EE90

長さ=650,ﾏｰｸ=#2

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10236

EE90

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE90;AE91,95..ATM..(L,LX,MX)

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE9#;AE91..3FC..DX

*H,L=360,ﾏｰｸ=#2

 1
90999-92003

AE9#,CE9#,EE9#

長さ=600

 1
90999-92002

AE9#,CE9#,EE9#

*H,L=300

 2
90999-92004

AE9#,CE9#,EE9#

長さ=950

 1
95411-10265

EE90

長さ=650,ﾏｰｸ=#2

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10236

EE90

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE90;AE91,95..ATM..(L,LX,MX)

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE9#;AE91..3FC..DX

*H,L=360,ﾏｰｸ=#2

 1
90999-92003

AE9#,CE9#,EE9#

長さ=600

 1
90999-92002

AE9#,CE9#,EE9#

*H,L=300

 2
90999-92004

AE9#,CE9#,EE9#

長さ=950

 1
95411-10265

EE90

長さ=650,ﾏｰｸ=#2

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10236

EE90

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE90;AE91,95..ATM..(L,LX,MX)

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE9#;AE91..3FC..DX

*H,L=360,ﾏｰｸ=#2

 1
90999-92003

AE9#,CE9#,EE9#

長さ=600

 1
90999-92002

AE9#,CE9#,EE9#

*H,L=300

 2
90999-92004

AE9#,CE9#,EE9#

長さ=950

 1
95411-10265

EE90

長さ=650,ﾏｰｸ=#2

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10236

EE90

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE90;AE91,95..ATM..(L,LX,MX)

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE9#;AE91..3FC..DX

*H,L=360,ﾏｰｸ=#2

 1
90999-92003

AE9#,CE9#,EE9#

長さ=600

 1
90999-92002

AE9#,CE9#,EE9#

*H,L=300

 2
90999-92004

AE9#,CE9#,EE9#

長さ=950

 1
95411-10265

EE90

長さ=650,ﾏｰｸ=#2

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10236

EE90

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE90;AE91,95..ATM..(L,LX,MX)

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE9#;AE91..3FC..DX

*H,L=360,ﾏｰｸ=#2

 1
90999-92003

AE9#,CE9#,EE9#

長さ=600

 1
90999-92002

AE9#,CE9#,EE9#

*H,L=300

 2
90999-92004

AE9#,CE9#,EE9#

長さ=950

 1
95411-10265

EE90

長さ=650,ﾏｰｸ=#2

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10236

EE90

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE90;AE91,95..ATM..(L,LX,MX)

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE9#;AE91..3FC..DX

*H,L=360,ﾏｰｸ=#2

 1
90999-92003

AE9#,CE9#,EE9#

長さ=600

 1
90999-92002

AE9#,CE9#,EE9#

*H,L=300

 2
90999-92004

AE9#,CE9#,EE9#

長さ=950

 1
95411-10265

EE90

長さ=650,ﾏｰｸ=#2

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10236

EE90

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE90;AE91,95..ATM..(L,LX,MX)

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE9#;AE91..3FC..DX

*H,L=360,ﾏｰｸ=#2

 1
90999-92003

AE9#,CE9#,EE9#

長さ=600

 1
90999-92002

AE9#,CE9#,EE9#

*H,L=300

 2
90999-92004

AE9#,CE9#,EE9#

長さ=950

 1
95411-10265

EE90

長さ=650,ﾏｰｸ=#2

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92003

AE9#,CE9#,EE9#

長さ=600

 1
95411-10236

EE90

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE90;AE91,95..ATM..(L,LX,MX)

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE9#;AE91..3FC..DX

*H,L=360,ﾏｰｸ=#2

 1
90999-92002

AE9#,CE9#,EE9#

*H,L=300

 2
90999-92004

AE9#,CE9#,EE9#

長さ=950

 1
95411-10265

EE90

長さ=650,ﾏｰｸ=#2

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10236

EE90

*H,L=360,ﾏｰｸ=#2

 1
90999-92003

AE9#,CE9#,EE9#

長さ=600

 1
95411-10236

EE90;AE91,95..ATM..(L,LX,MX)

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE9#;AE91..3FC..DX

*H,L=360,ﾏｰｸ=#2

 1
90999-92002

AE9#,CE9#,EE9#

*H,L=300

 2
90999-92004

AE9#,CE9#,EE9#

長さ=950

 1
95411-10265

EE90

長さ=650,ﾏｰｸ=#2

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10236

EE90

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE90;AE91,95..ATM..(L,LX,MX)

*H,L=360,ﾏｰｸ=#2

 1
90999-92003

AE9#,CE9#,EE9#

長さ=600

 1
95411-10236

EE9#;AE91..3FC..DX

*H,L=360,ﾏｰｸ=#2

 1
90999-92002

AE9#,CE9#,EE9#

*H,L=300

 2
90999-92004

AE9#,CE9#,EE9#

長さ=950

 1
95411-10265

EE90

長さ=650,ﾏｰｸ=#2

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10236

EE90

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE90;AE91,95..ATM..(L,LX,MX)

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE9#;AE91..3FC..DX

*H,L=360,ﾏｰｸ=#2

 1
90999-92003

AE9#,CE9#,EE9#

長さ=600

 1
90999-92002

AE9#,CE9#,EE9#

*H,L=300

 2
90999-92004

AE9#,CE9#,EE9#

長さ=950

 1
95411-10265

EE90

長さ=650,ﾏｰｸ=#2

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10236

EE90

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE90;AE91,95..ATM..(L,LX,MX)

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE9#;AE91..3FC..DX

*H,L=360,ﾏｰｸ=#2

 1
90999-92003

AE9#,CE9#,EE9#

長さ=600

 1
90999-92002

AE9#,CE9#,EE9#

*H,L=300

 2
90999-92004

AE9#,CE9#,EE9#

長さ=950

 1
95411-10265

EE90

長さ=650,ﾏｰｸ=#2

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10236

EE90

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE90;AE91,95..ATM..(L,LX,MX)

*H,L=360,ﾏｰｸ=#2

 1
95411-10236

EE9#;AE91..3FC..DX

*H,L=360,ﾏｰｸ=#2

 1
90999-92003

AE9#,CE9#,EE9#

長さ=600

 1
90999-92002

AE9#,CE9#,EE9#

*H,L=300

 2
90999-92004

AE9#,CE9#,EE9#

長さ=950

 1
95411-10265

EE90

長さ=650,ﾏｰｸ=#2

 1
Common parts
88688-12570
88688-12810
88714-12120
90091-20609
90119-06033
90413-06002
90413-10220
90414-04001
90464-00074
90464-00082
90464-00102
90464-00111
90464-00132
90464-00248
90925-03183
90925-03184
90925-03185
91651-60612
96132-30600
Linked diagrams
1708
