EE108G-BWMDS (1991)

Toyota Sprinter

Production Sep 1991 - Jan 1994
Engine 3E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9106-9312)AE10#,EE10#

Click highlighted areas on diagram

diagram 827112B640 88450 88453A 88453A 88454A 88460 88467 88467 8846712130 8846712140 88467A 88467A 88470 88472 88550 8856912280 88590 886881A050 88716A 88892P 8889712250 8889912290 9009120609 9009900192 9009904117 9009904119 9011906336 9011906502 9017906032 9338556025
Part # Description Qty Price
88453A - FAN, COOLING
88453-10020

AE10#,EE10#

 1
88453A - FAN, COOLING
88453-10020

AE10#,EE10#

 1
88454A - SHROUD, FAN
88454-12150

AE10#,EE10#

 1
88454-12130

AE10#,EE10#

 1
88460 - CONDENSER ASSY, COOLER
88460-12410

AE10#,EE10#

 1
88460-12440

AE10#,EE10#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12100

AE10#,CE10#,EE10#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12100

AE10#,CE10#,EE10#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-12110

AE10#,CE10#,EE10#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-12110

AE10#,CE10#,EE10#

 2
88470 - RECEIVER & DRYER ASSY, COOLER
88471-12020

AE10#,CE10#,EE10#

 1
88471-60010

AE10#,CE10#,EE10#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-12080

AE10#,CE10#,EE10#

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12130

AE10#,CE10#,EE10#

 1
88590 - BLOWER ASSY, W/SHROUD
88590-12210

AE10#,EE10#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-12360

AE10#,CE10#,EE10#

 1
88726-12410

AE10#,CE10#,EE10#

 1
88892P - NET, FAN SHROUD
88892-12200

AE10#,EE10#

 1
Common parts
82711-2B640
88467-12130
88467-12140
88569-12280
88688-1A050
88897-12250
88899-12290
90091-20609
90099-00192
90099-04117
90099-04119
90119-06336
90119-06502
90179-06032
93385-56025

ILLUST NO. 1 OF 2(9312- )AE10#,EE10#

Click highlighted areas on diagram

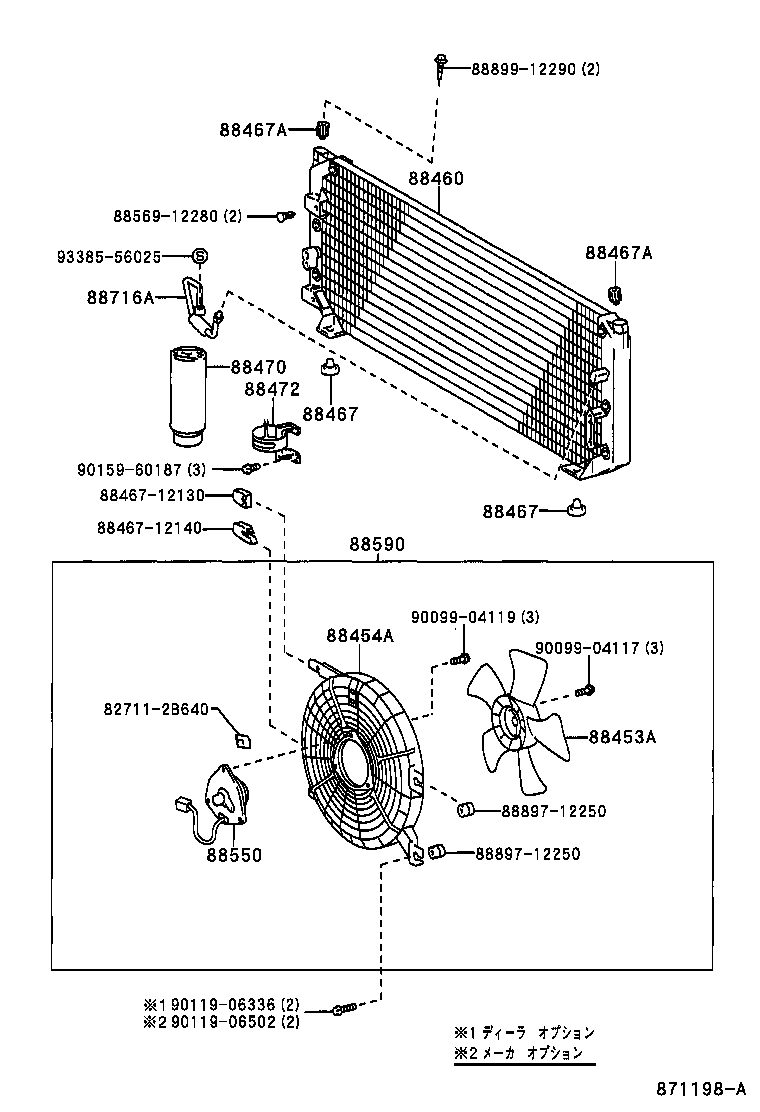

diagram 827112B640 88453A 88454A 88460 88467 88467 8846712130 8846712140 88467A 88467A 88470 88472 88550 8856912280 88590 88716A 8889712250 8889712250 8889912290 9009904117 9009904119 9011906336 9011906502 9015960187 9338556025
Part # Description Qty Price
88453A - FAN, COOLING
88453-10020

AE10#,EE10#

 1
88454A - SHROUD, FAN
88454-12150

AE10#,EE10#

 1
88454-12130

AE10#,EE10#

 1
88460 - CONDENSER ASSY, COOLER
88460-12410

AE10#,EE10#

 1
88460-12440

AE10#,EE10#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12100

AE10#,CE10#,EE10#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12100

AE10#,CE10#,EE10#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-12110

AE10#,CE10#,EE10#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-12110

AE10#,CE10#,EE10#

 2
88470 - RECEIVER & DRYER ASSY, COOLER
88471-12020

AE10#,CE10#,EE10#

 1
88471-60010

AE10#,CE10#,EE10#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-12080

AE10#,CE10#,EE10#

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12130

AE10#,CE10#,EE10#

 1
88590 - BLOWER ASSY, W/SHROUD
88590-12210

AE10#,EE10#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-12360

AE10#,CE10#,EE10#

 1
88726-12410

AE10#,CE10#,EE10#

 1
Common parts
82711-2B640
88467-12130
88467-12140
88569-12280
88897-12250
88899-12290
90099-04117
90099-04119
90119-06336
90119-06502
90159-60187
93385-56025

ILLUST NO. 2 OF 2(9106-9508)EE10#

Click highlighted areas on diagram

DEALER OPTION

diagram 8271112200 88374B 88374C 88375A 88375B 8846714070 88470B 88479 8856916050 88645H 88648E 8868812881 8868812891 886881A520 88711 88712 88716B 88716E 88717A 88717B 887181A450 88723B 88723B 9009120609 9009120609 9009914044 9009914045 9009914046 9009914056 9009914119 9009914120 9009914121 9009914122 9009932130 9011906336 9011906458 9011906458 9011906458 9017906032 9017906032 9017908191 9046707043C0 9165160835 9165160835 9338556025
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
48094-10010

AE100,104,CE10#,EE10#

 1
48094-10010

EE107,108..MTM;AE100,104,CE10#,EE101,106..CTD,DX,L,LX,XE,XL

 1
88375-30010

AE10#,CE10#,EE10#

 1
88374C - VALVE, SERVICE, NO.2
88374-12020

AE100,104,EE10#..CTD,DX,L,LX,XE,XL

 1
88374-12020

AE100,104,EE10#

 1
88374-30010

AE100,104,CE10#,EE10#

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

AE10#,CE10#,EE10#

 1
88375-24010

AE10#,CE10#,EE10#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30270

AE100,104,CE10#,EE10#

 1
88375-30270

CE100,104;AE100,104,CE106,108,109,EE10#..CTD,DX,L,LX,XE,XL

 1
88470B - BOLT, FUSE
88475-12020

AE100,104,EE10#

 1
88475-12020

AE100,104,EE10#..CTD,DX,L,LX,XE,XL

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02004

AE100,104,CE10#,EE10#..CTD,DX,L,LX,XE,XL

250G

 3
90986-02008

EE101..DX;AE100,104,CE102,104,108,EE104,108..L,SEL,XE;AE109,CE100,105,106,107,109,EE102,103,106,107..CTD,DX,DXJ,SEL,XE,XL

200G

 3
90986-02004

AE100,104,CE10#,EE10#

250G

 3
88645H - SWITCH, PRESSURE NO.1
88645-50010

AE10#,CE10#,EE10#

 1
88645-20050

AE10#,CE10#,EE10#

 1
88648E - WIRING, COOLER
88648-12490

EE106,107,108

 1
88648-12550

EE10#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12630

EE10#

 1
88711-1A110

EE10#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-12830

EE10#

 1
88712-12870

CE106,108,109

 1
88712-12870

CE106,109;CE100,104,108..L,SEL,XE

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-1A020

AE100,104,EE10#

 1
88716-1A020

AE100,104,EE10#..CTD,DX,L,LX,XE,XL

 1
88716-1A240

AE100,104,109,EE10#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-1A030

CE100,106,108,109..CTD,DX,L,XL

 1
88716-1A010

EE106..3FC;AE100,EE101,107,108..DX,L,XL

 1
88716-1A010

EE106..3FC;EE101,107,108..DX,L,XL

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-12560

EE106..3FC;AE100,EE101,107,108..DX,L,XL

 1
88717-12560

EE106..3FC;EE101,107,108..DX,L,XL

 1
88717-12750

CE106,109;CE100,104,108..L,SEL,XE

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-12550

AE10#,EE10#

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-12110

AE10#,CE10#,EE10#

ｲﾗｽﾄ ｻﾝｼﾖｳ

 1
88723-12050

AE10#,CE10#,EE10#

ｲﾗｽﾄ ｻﾝｼﾖｳ

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-12110

AE10#,CE10#,EE10#

ｲﾗｽﾄ ｻﾝｼﾖｳ

 1
88723-12050

AE10#,CE10#,EE10#

ｲﾗｽﾄ ｻﾝｼﾖｳ

 1
Common parts
82711-12200
88467-14070
88569-16050
88688-12881
88688-12891
88688-1A520
88718-1A450
90091-20609
90099-14044
90099-14045
90099-14046
90099-14056
90099-14119
90099-14120
90099-14121
90099-14122
90099-32130
90119-06336
90119-06458
90179-06032
90179-08191
90467-07043C0
91651-60835
93385-56025
