EE108G-BWMDS (1991)

Toyota Sprinter

Production Sep 1991 - Jan 1994
Engine 3E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9109-9401)2E,3E

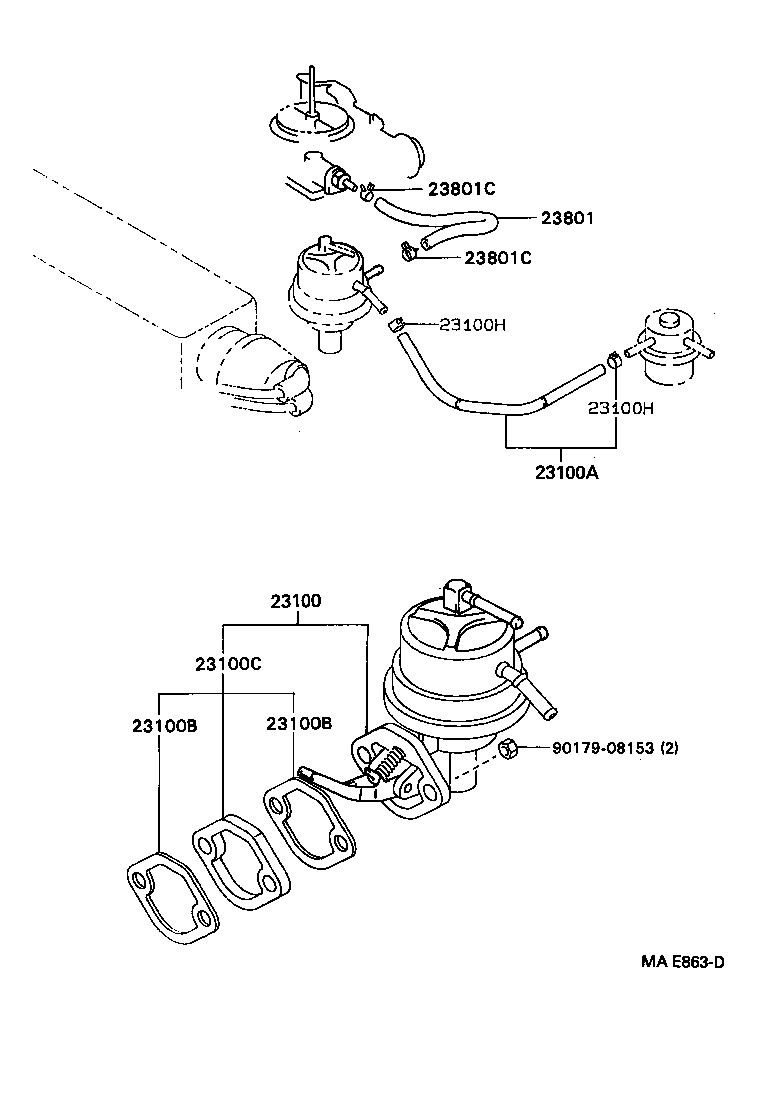

Click highlighted areas on diagram

diagram 23100 23100A 23100B 23100B 23100C 23100H 23100H 23801 23801C 23801C 9017908153
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-19255

2E,3E..EE106,107,108

 1
23100A - HOSE, FUEL
23271-11180

2E,3E..EE106,107,108

 1
23100B - GASKET, FUEL PUMP
90923-05024

2E,3E..EE106,107,108

 2
23100B - GASKET, FUEL PUMP
90923-05024

2E,3E..EE106,107,108

 2
23100C - INSULATOR, FUEL PUMP
23915-10021

2E,3E..EE106,107,108

 1
23100H - CLIP(FOR FUEL HOSE)
96132-41100

2E,3E..EE106,107,108

 2
23100H - CLIP(FOR FUEL HOSE)
96132-41100

2E,3E..EE106,107,108

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
95333-06020

2E,3E..EE106,107,108

 1
95334-06015

2E,3E..EE106,107,108

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96135-41100

2E,3E..EE106,107,108

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96135-41100

2E,3E..EE106,107,108

 2
Common parts
90179-08153
