EE107V-BXKDS (1991)

Toyota Sprinter

Production Sep 1991 - Jan 1994
Engine 3E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9109-9401)2E,3E

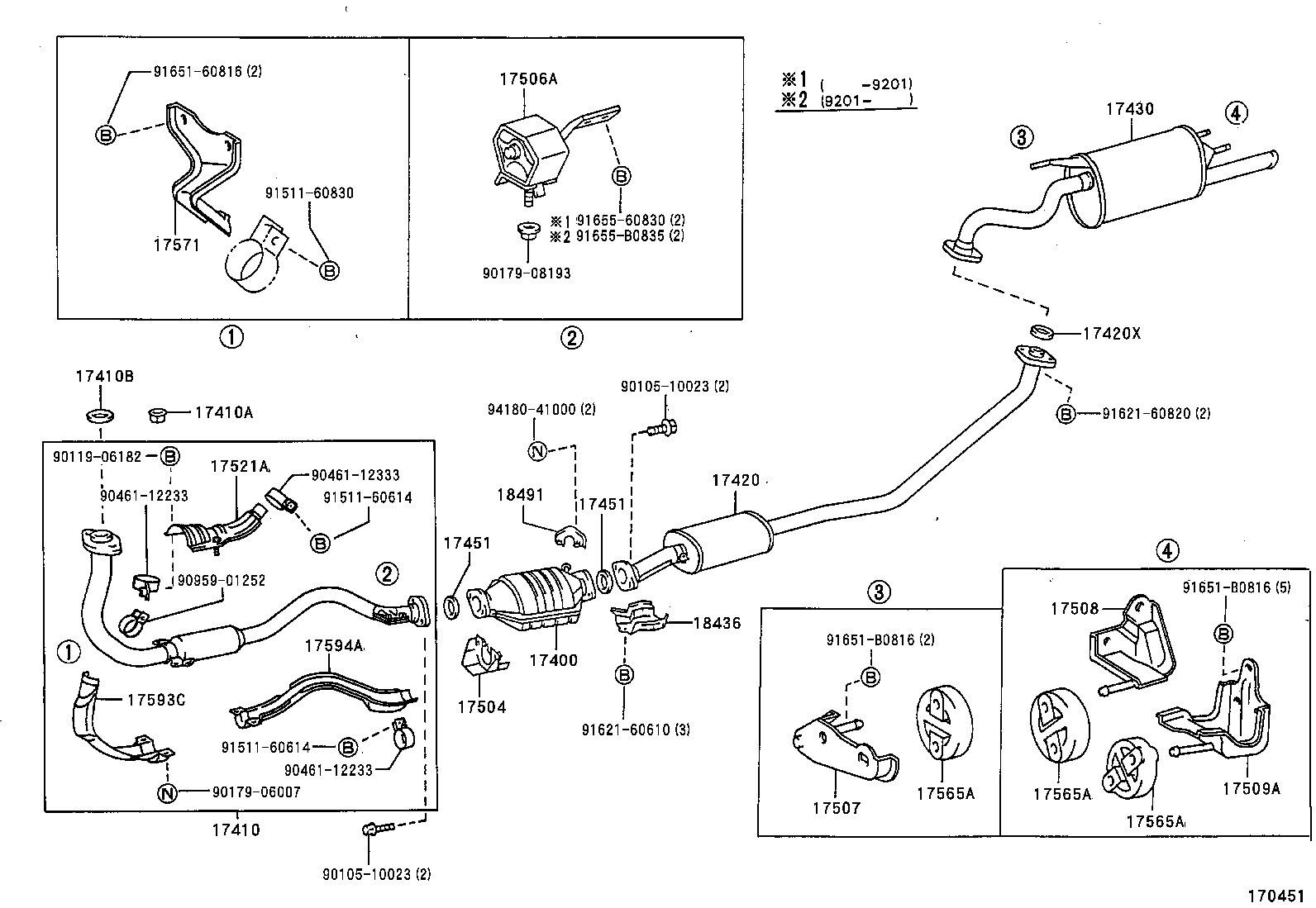

Click highlighted areas on diagram

diagram 17400 17410 17410A 17410B 17420 17420X 17430 17451 17451 17504 17506A 17507 17508 17509A 17521A 17565A 17565A 17565A 17571 17593C 17594A 18436 18491 9010510023 9010510023 9011906182 9017906007 9017908193 9046112233 9046112233 9046112333 9095901252 9151160614 9151160614 9151160830 9162160610 9162160820 9165160816 91651B0816 91651B0816 9165560830 91655B0835 9418041000
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-15140

2E,3E..EE106,107,108

 1
18450-15140

5AFE,2E,3E..AE100,EE106,107,108

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-11570

3E..EE107,108

 1
17410B - GASKET, EXHAUST PIPE
90917-06061

2C,2E,3E,4EFE..CE10#,EE10#

 1
90917-06061

2C,2E,3E,4EFE..CE104,106,108,109,EE10#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-11220

2E,3E..EE106,107,108

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06060

5AFE,2E,3E,4EFE,5EFE..AE100,EE10#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-11630

3E..EE107,108

 1
17451 - GASKET, EXHAUST PIPE
90917-06045

5AFE,2E,3E..AE100,EE106,107,108

ﾘﾔ

 1
90917-06044

5AFE,2E,3E..AE100,EE106,107,108

ﾌﾛﾝﾄ

 1
17451 - GASKET, EXHAUST PIPE
90917-06045

5AFE,2E,3E..AE100,EE106,107,108

ﾘﾔ

 1
90917-06044

5AFE,2E,3E..AE100,EE106,107,108

ﾌﾛﾝﾄ

 1
17504 - BRACKET SUB-ASSY, CATALYTIC CONVERTER
17504-16020

5AFE,2E,3E..AE100,EE106,107,108

 1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-15070

4A#,5AFE,2C,2E,3E,4EFE,5EFE..AE100,101,CE100,106,108,EE10#

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-11050

4AFE,2C,3CE,2E,3E,4EFE,5EFE..AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

 1
17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17508-11080

2C,3CE,2E,3E,4EFE,5EFE..CE102,106,107,108,EE102,103,104,106,107,108

 1
17508-11060

2C,2E,3E..CE106,108,EE106,107,108

 1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-11070

2C,2E,3E..CE106,108,EE106,107,108

 1
17509-11080

2C,3CE,2E,3E,4EFE,5EFE..CE102,106,107,108,EE102,103,104,106,107,108

 1
17521A - PROTECTOR, EXHAUST PIPE, UPPER NO.1
17521-11110

2E,3E..EE106,107,108

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-11110

2E,3E..EE106,107,108

 1
17593C - PROTECTOR, EXHAUST PIPE, LOWER NO.1
17593-11150

2E,3E..EE106,107,108

 1
17594A - PROTECTOR, EXHAUST PIPE, LOWER NO.2
17594-11260

2E,3E..EE106,107,108

 1
18436 - PROTECTOR, MONOLITHIC CONVERTER, NO.1
18436-63010

5AFE,2E,3E..AE100,EE106,107,108

 1
18436-63010

2E,3E..EE106,107,108

 1
18491 - FLANGE, THERMOSENSOR INLET
18491-63010

4A#,5AFE,2E,3E..AE100,101,EE106,107,108

 1
18491-16010

4AFE,5AFE,2E,3E..AE100,101,EE106,107,108

 1
Common parts
90105-10023
90119-06182
90179-06007
90179-08193
90461-12233
90461-12333
90959-01252
91511-60614
91511-60830
91621-60610
91621-60820
91651-60816
91651-B0816
91655-60830
91655-B0835
94180-41000
