EE107V-BXHNS (1991)
Toyota Sprinter
Production
Sep 1991
-
Jan 1994
Engine
3E
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9109-9401)2E,3E

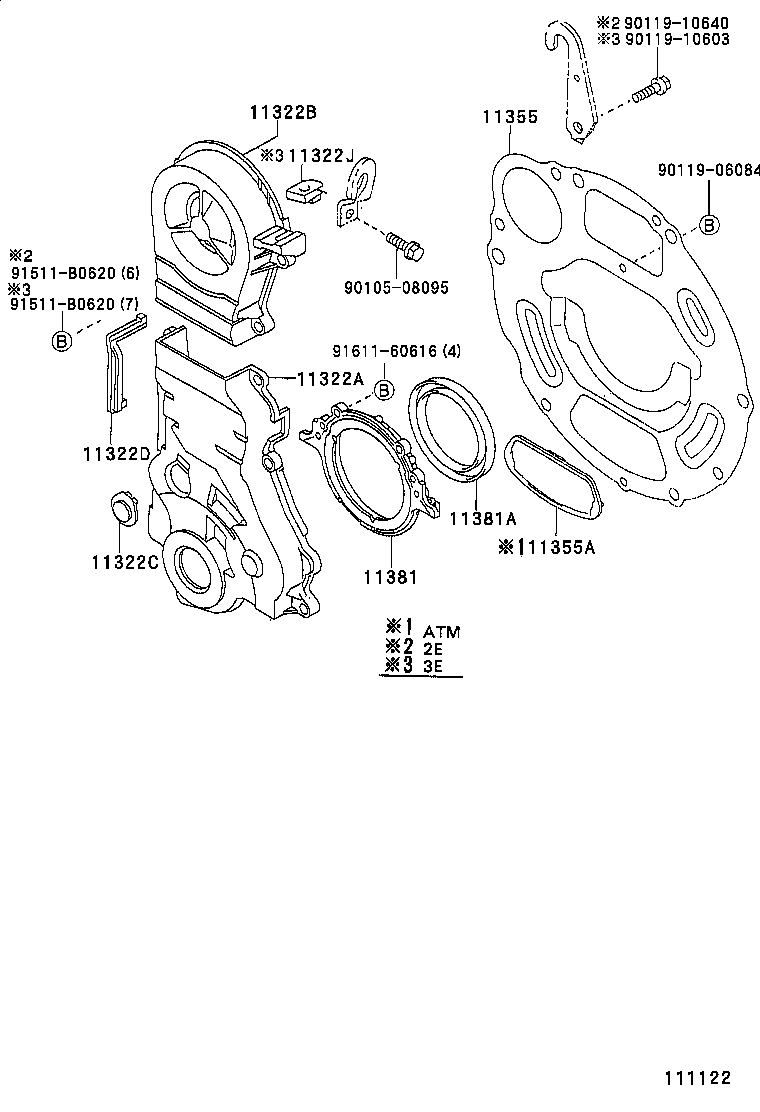

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11322A - COVER, TIMING BELT, NO.1 | ||||
| 11302-11090 |
3E..EE107,108 |
1 | ||
| 11322B - COVER, TIMING BELT, NO.2 | ||||
| 11303-11021 |
3E..EE107,108 |
1 | ||
| 11322C - COVER, TIMING BELT, NO.3 | ||||
| 11323-10011 |
2E,3E,4EFE,5EFE..EE10# |
1 | ||
| 11322D - GASKET, TIMING BELT COVER, NO.1 | ||||
| 11328-11060 |
3E..EE107,108 |
1 | ||
| 11328-11061 |
3E,5EFE..EE103,104,107,108 |
1 | ||
| 11322J - RETAINER(FOR TIMING BELT COVER) | ||||
| 52565-16020 |
3E..EE107,108 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-11011 |
2E,3E,4EFE,5EFE..EE10#..3FC |
1 | ||
| 11355A - PLUG, HOLE(FOR REAR END PLATE) | ||||
| 90950-01548 |
2E,3E,4EFE,5EFE..EE10#..3FC |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-10020 |
2E,3E,4EFE,5EFE..EE10# |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-80012 |
3E,5EFE..EE103,104,107,108 |
1 | ||
| Common parts | ||||
| 90105-08095 | ||||
| 90119-06084 | ||||
| 90119-10603 | ||||
| 90119-10640 | ||||
| 91511-B0620 | ||||
| 91611-60616 | ||||
