EE106V-BXHDS (1991)
Toyota Sprinter
Production
Sep 1991
-
Jan 1994
Engine
2E
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9106-9804) ; (9804- )AE109,EE10#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18398 |
AE101,EE106,107,108..ATM..(CTD,DX,GT,L,XL) |
1 | ||
| 90508-18025 |
EE106,107,108..MTM;CE100,106,108,EE102,103,104..ATM;AE10#,EE101..(3FC,4FC,5F)..(DX,LX,SEG,SEL,XE) |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-32010 |
AE10#,CE10#,EE10# |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-18050 |
AE10#,CE10#,EE10# |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
AE10#,CE10#,EE10# |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-12170 |
AE101,EE106,107,108..ATM..(CTD,DX,GT,L,XL) |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-1A370 |
EE106 |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-12160 |
CE102,107..4FC;AE10#,CE100,104,106,108,109,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL |
1 | ||
| 78183-12160 |
AE10#,CE10#,EE10# |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-12300 |
EE106,107,108 |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-12300 |
EE106,107,108 |
1 | ||
| Common parts | ||||
| 90119-06375 | ||||
| 91511-B0814 | ||||
| 91621-60612 | ||||
| 91651-40620 | ||||
| 91651-40630 | ||||
| 91651-40816 | ||||
| 91651-B0614 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||

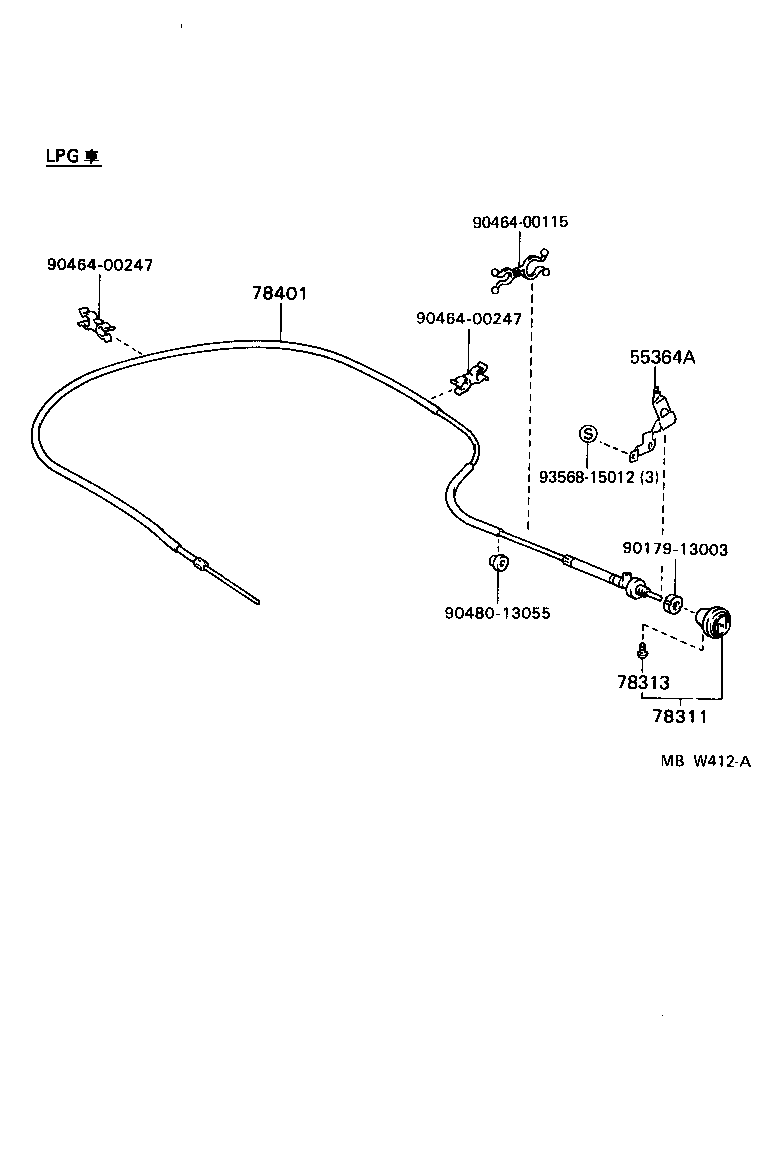

(9109-9401)EE106
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-13003 | ||||
| 90464-00115 | ||||
| 90464-00247 | ||||
| 90480-13055 | ||||
| 93568-15012 | ||||
