EE106V-BXHBS (1991)

Toyota Sprinter

Production Sep 1991 - Jan 1994
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9106-9505)3FC

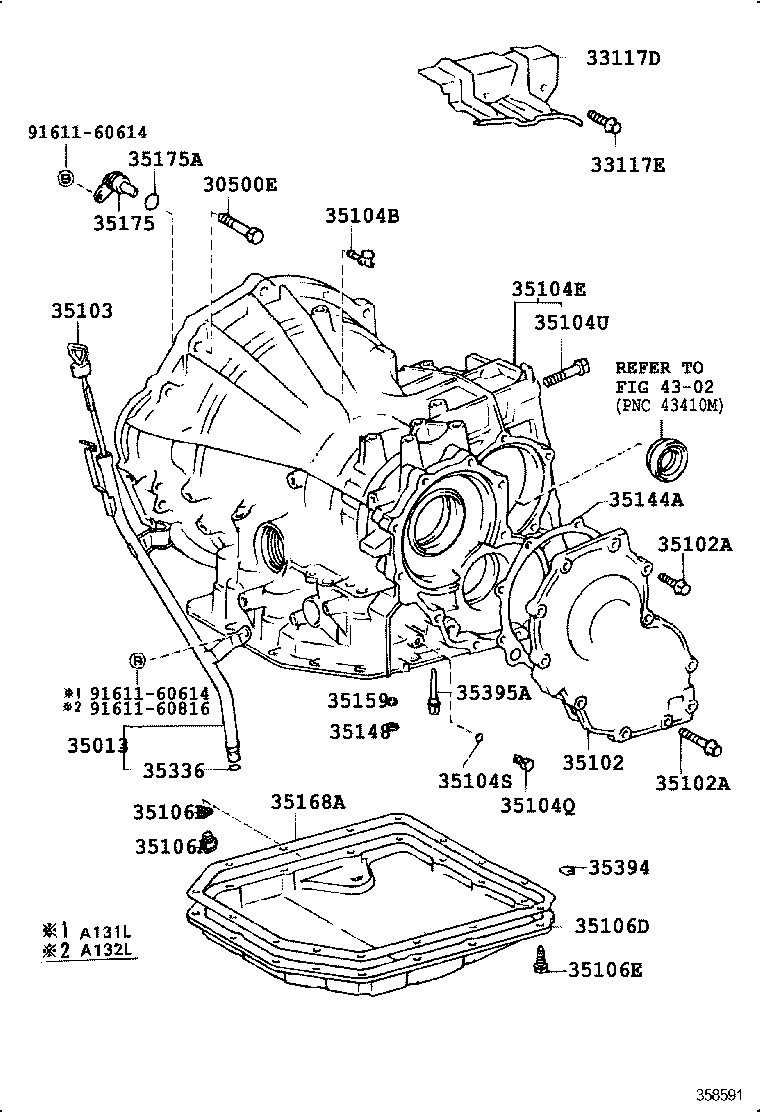

Click highlighted areas on diagram

A131L,A132L

diagram 30500E 33117D 33117E 35013 35102 35102A 35102A 35103 35104B 35104E 35104Q 35104S 35104U 35106A 35106B 35106D 35106E 35144A 35148 35159 35168A 35175 35175A 35336 35394 35395A 4302 9161160614 9161160614 9161160816
Part # Description Qty Price
30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING)
90119-12168

AE10#,EE10#..ATM

*12−1.25PX55−30

 1
90105-10077

AE10#,CE100,106,108..ATM

*10−1.25PX43−26

 1
91619-61245

AE100,104,EE10#..ATM

*12−1.25PX45−30

 2
91619-61245

AE10#,EE10#..ATM

*12−1.25PX45−30

 2
91611-61025

EE10#..3FC

*10−1.25PX25−25

 2
90119-12168

AE100,104,EE10#..ATM

*12−1.25PX55−30

 1
90105-10097

EE10#..3FC

*10−1.25PX60−22

 1
91621-60614

EE10#..3FC

*6−1.00PX14−14

 1
90105-10077

AE10#,CE100,102,106,107,108..ATM

*10−1.25PX43−26

 1
91619-61245

AE10#,EE10#..ATM

*12−1.25PX45−30

 2
90119-12168

AE10#,EE10#..ATM

*12−1.25PX55−30

 1
90105-10077

AE100,104,CE100,106,108..ATM

*10−1.25PX43−26

 1
33117D - PROTECTOR, AUTOMATIC TRANSMISSION CASE
33117-12040

AE100,EE10#..3FC

 1
33117-12040

EE10#..3FC

 1
33117E - BOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)
90105-08040

EE10#..3FC;AE10#,CE100,102,106,107,108..4FC

 2
90105-08040

AE10#,CE100,106,108,EE10#..ATM

 2
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-12300

EE106,107,108..3FC

 1
35102 - COVER SUB-ASSY, TRANSAXLE REAR
35102-10011

EE10#..3FC

 1
35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING)
90105-08050

AE100,EE10#..3FC

*8−1.25PX28−28

 9
90105-08056

AE100,EE10#..3FC

*8−1.25PX40−40

 2
35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING)
90105-08050

AE100,EE10#..3FC

*8−1.25PX28−28

 9
90105-08056

AE100,EE10#..3FC

*8−1.25PX40−40

 2
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-12220

EE106,107,108..3FC

 1
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03089

AE100,EE10#..3FC

 1
35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE
35104-12193

EE10#..3FC

 1
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-08001

AE100,EE10#..3FC

 2
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-06196

AE100,EE10#..3FC

 2
35104U - BOLT (FOR TRANSAXLE CASE)
90105-10008

AE100,EE10#..3FC

*10−1.25PX53−26

 2
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-18016

AE100,EE10#..3FC

 1
35106B - GASKET, DRAIN PLUG (ATM)
90430-18008

AE100,EE10#..3FC

 1
35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
35106-10022

EE10#..3FC

 1
35106E - BOLT (FOR TRANSAXLE OIL PAN)
90119-06173

AE100,EE10#..3FC

 15
35144A - GASKET, TRANSAXLE REAR COVER
35144-12010

EE10#..3FC

 1
35148 - GASKET, GOVERNOR APPLY, NO.1
35148-16010

AE10#,CE100,102,106,107,108,EE10#..ATM

 1
35159 - GASKET, BRAKE DRUM
35159-32011

AE100,EE10#..3FC

 1
35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN
35168-32010

AE100,EE10#..3FC

 1
35175 - CAP, TRANSAXLE CASE, NO.2
35175-32010

AE100,EE10#..3FC

 1
35175A - RING, O (FOR TRANSAXLE CASE CAP)
90301-21002

AE100,EE10#..3FC

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

AE10#,CE100,102,106,107,108,EE10#..ATM

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

AE10#,CE100,106,108,EE10#..ATM

 3
35394-30011

AE100,CE100,106,108..ATM

 2
35394-30011

AE104,EE10#..ATM

 3
35394-30011

AE100,101,CE100,106,108..ATM

 2
35394-30011

AE101,104,EE10#..ATM

 3
35395A - STRAINER, GOVERNOR OIL
35395-32020

EE10#..3FC

 1
Common parts
91611-60614
91611-60816
Linked diagrams
4302
