EE106V-BXHBS (1991)

Toyota Sprinter

Production Sep 1991 - Jan 1994
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9109-9401)2E,3E

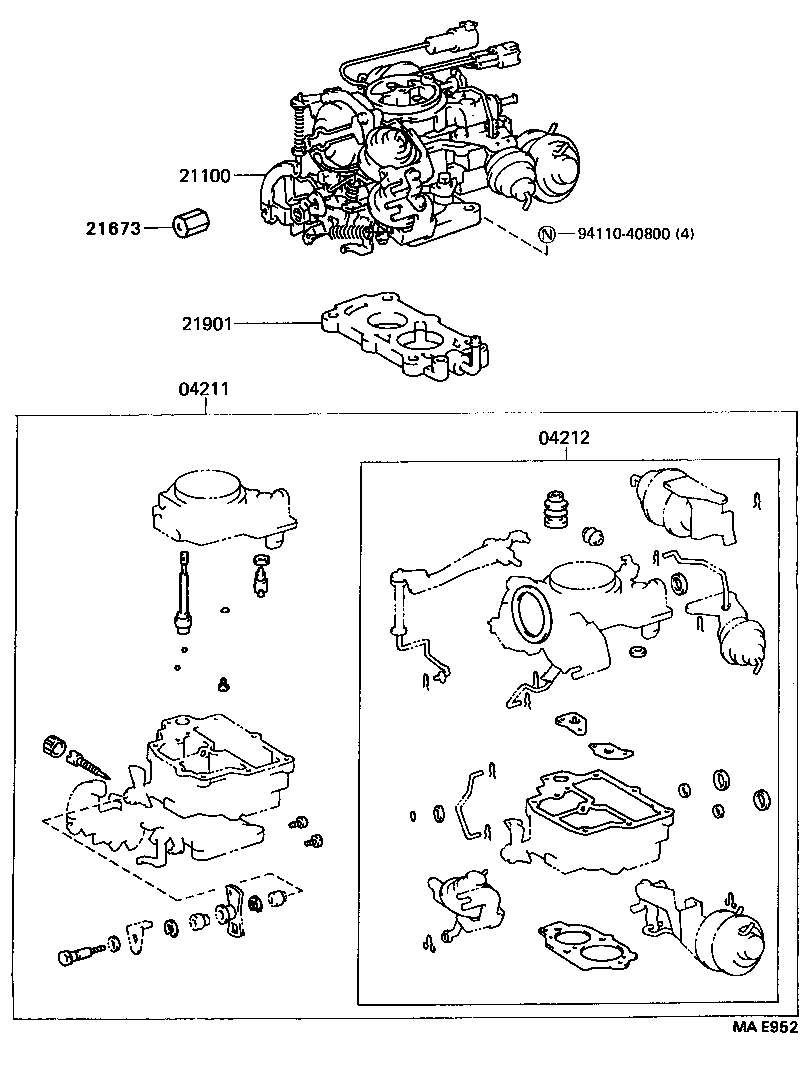

Click highlighted areas on diagram

diagram 04211 04212 21100 21673 21901 9411040800
Part # Description Qty Price
04211 - CARBURETOR KIT
04211-11190

2E,3E..EE106,107,108

 1
04212 - GASKET KIT, CARBURETOR
04212-11071

2E,3E..EE106,107,108

 1
21100 - CARBURETOR ASSY
21100-11810

2E..EE106..3FC

 1
21673 - CAP, IDLE LIMIT
21673-13280

2E,3E..EE106,107,108

 1
21901 - INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1
21901-11060

2E,3E..EE106,107,108

 1
Common parts
94110-40800
