EE103V-BXMNK (1994)
Toyota Sprinter

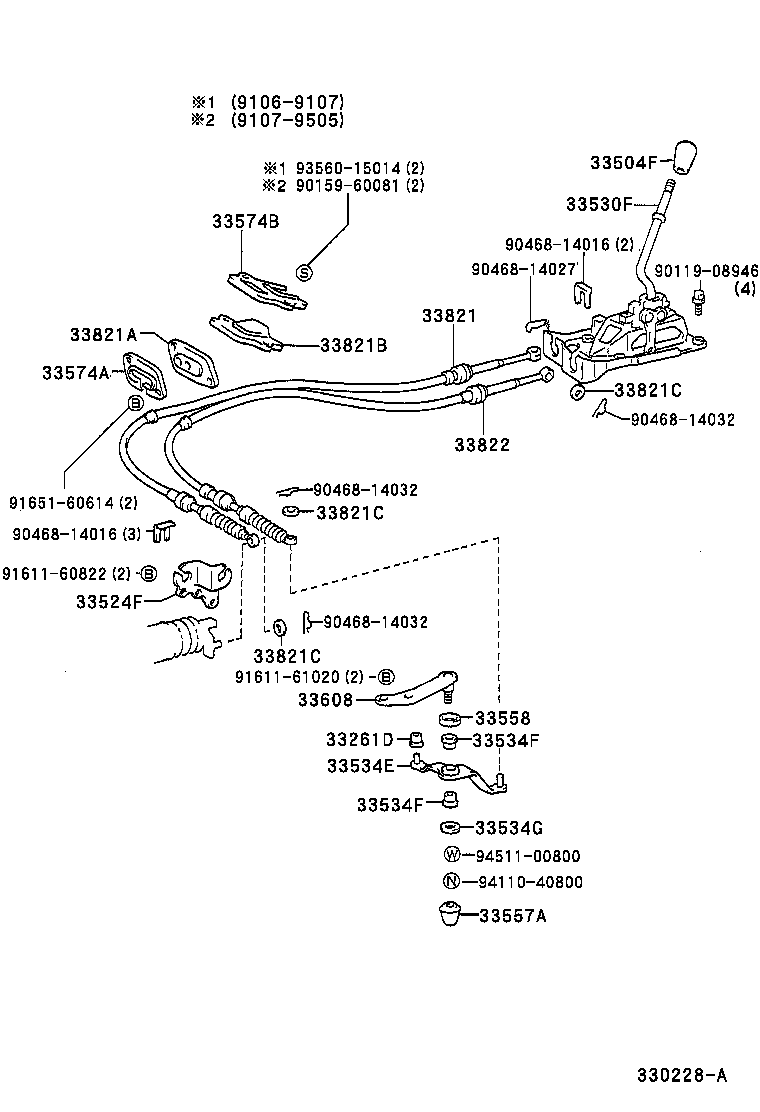

(9106-9505)AE100,101,EE10#..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33261D - BUSH (FOR SHIFT & SELECT LEVER) | ||||
| 90389-10009 |
AE100,101,EE10#..MTM |
1 | ||
| 33557-33010 |
AE100,101,EE10#..MTM |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-12180P0 |
CE106,109..5F..XL;AE10#,CE100,104,EE103,107..5F..(DX,LX,SEG,SEL,XE,XL) SHADOW GRAY,TRIM1# |
1 | ||
| 33504-12180P0 |
CE102,105,106,107,109,EE103..5F..(L,XL) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SHADOW GRAY,TRIM1# |
1 | ||
| 33504-12180P0 |
CE105,107,EE103..5F..XL;AE109,CE102,EE102..5F..(DX,L) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SHADOW GRAY,TRIM1# |
1 | ||
| 33504-14050B1 |
AE109,CE10#,EE10#..5F..(CTD,DX,DXJ,L) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,DARK SMOKE GRAY,TRIM1# |
1 | ||
| 33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT | ||||
| 33524-12011 |
AE100,101,EE10#..MTM |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-12630 |
CE102,106,107,108,EE10#..MTM |
1 | ||
| 33530-12570 |
AE100,101,CE100,106,108,EE10#..MTM |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-16051 |
AE100,101,EE10#..MTM |
1 | ||
| 33534-16050 |
AE100,101,EE10#..MTM |
1 | ||
| 33534-10060 |
EE10#..5F |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AE10#,CE10#,EE10#..MTM |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AE10#,CE10#,EE10#..MTM |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
AE10#,CE10#,EE10#..MTM |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
AE10#,CE10#,EE10#..MTM |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-10030 |
AE100,101,EE10#..MTM |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-12080 |
AE10#,CE10#,EE10#..MTM |
1 | ||
| 33574B - RETAINER, SHIFT CABLE GROMMET, NO.2 | ||||
| 33574-12060 |
AE10#,CE10#,EE10#..MTM |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-16020 |
AE100,101,EE10#..MTM |
1 | ||
| 33608-16021 |
AE100,101,EE10#..MTM |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-12720 |
EE10#..MTM CHUO HATSUJO |
1 | ||
| 33821-12460 |
AE100,101,EE10#..MTM |
1 | ||
| 33821-12730 |
EE10#..MTM NIPPON CABLE |
1 | ||
| 33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01400 |
AE10#,CE10#,EE10#..MTM |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01398 |
AE10#,CE10#,EE10#..MTM |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
EE102,103..4F;EE103..5F..XL;AE10#,CE100,104,106,108,109,EE101,104,106,107,108..MTM SHIFT LEVER SIDE |
1 | ||
| 90201-08077 |
EE102,103..4F;EE103..5F..XL;AE10#,CE100,104,106,108,109,EE101,104,106,107,108..MTM 外径=30,TRANSAXLE SIDE |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
EE102,103..4F;EE103..5F..XL;AE10#,CE100,104,106,108,109,EE101,104,106,107,108..MTM SHIFT LEVER SIDE |
1 | ||
| 90201-08077 |
EE102,103..4F;EE103..5F..XL;AE10#,CE100,104,106,108,109,EE101,104,106,107,108..MTM 外径=30,TRANSAXLE SIDE |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
EE102,103..4F;EE103..5F..XL;AE10#,CE100,104,106,108,109,EE101,104,106,107,108..MTM SHIFT LEVER SIDE |
1 | ||
| 90201-08077 |
EE102,103..4F;EE103..5F..XL;AE10#,CE100,104,106,108,109,EE101,104,106,107,108..MTM 外径=30,TRANSAXLE SIDE |
2 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-12190 |
AE100,101,EE10#..MTM |
1 | ||
| 33822-12290 |
EE10#..MTM |
1 | ||
| Common parts | ||||
| 90119-08946 | ||||
| 90159-60081 | ||||
| 90468-14016 | ||||
| 90468-14027 | ||||
| 90468-14032 | ||||
| 91611-60822 | ||||
| 91611-61020 | ||||
| 91651-60614 | ||||
| 93560-15014 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||

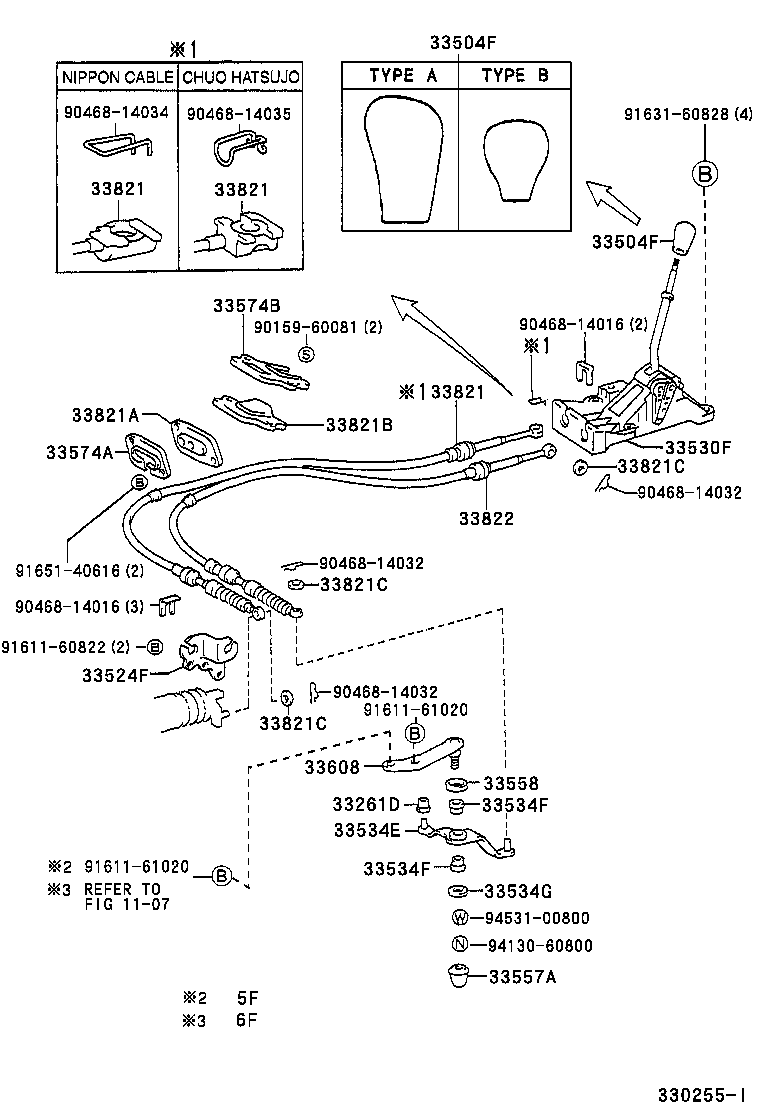

(9505- )EE10#..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33261D - BUSH (FOR SHIFT & SELECT LEVER) | ||||
| 90389-10009 |
AE100,101,EE10#..MTM |
1 | ||
| 33557-33010 |
AE100,101,EE10#..MTM |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-12180P0 |
CE106,109..5F..XL;AE10#,CE100,104,EE103,107..5F..(DX,LX,SEG,SEL,XE,XL) SHADOW GRAY,TRIM1# |
1 | ||
| 33504-12180P0 |
CE102,105,106,107,109,EE103..5F..(L,XL) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SHADOW GRAY,TRIM1# |
1 | ||
| 33504-12180P0 |
CE105,107,EE103..5F..XL;AE109,CE102,EE102..5F..(DX,L) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SHADOW GRAY,TRIM1# |
1 | ||
| 33504-14050B1 |
AE109,CE10#,EE10#..5F..(CTD,DX,DXJ,L) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,DARK SMOKE GRAY,TRIM1# |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-12180P0 |
CE106,109..5F..XL;AE10#,CE100,104,EE103,107..5F..(DX,LX,SEG,SEL,XE,XL) SHADOW GRAY,TRIM1# |
1 | ||
| 33504-12180P0 |
CE102,105,106,107,109,EE103..5F..(L,XL) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SHADOW GRAY,TRIM1# |
1 | ||
| 33504-12180P0 |
CE105,107,EE103..5F..XL;AE109,CE102,EE102..5F..(DX,L) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SHADOW GRAY,TRIM1# |
1 | ||
| 33504-14050B1 |
AE109,CE10#,EE10#..5F..(CTD,DX,DXJ,L) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,DARK SMOKE GRAY,TRIM1# |
1 | ||
| 33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT | ||||
| 33524-12011 |
AE100,101,EE10#..MTM |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-12630 |
CE102,106,107,108,EE10#..MTM |
1 | ||
| 33530-12570 |
AE100,101,CE100,106,108,EE10#..MTM |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-16051 |
AE100,101,EE10#..MTM |
1 | ||
| 33534-16050 |
AE100,101,EE10#..MTM |
1 | ||
| 33534-10060 |
EE10#..5F |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AE10#,CE10#,EE10#..MTM |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AE10#,CE10#,EE10#..MTM |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
AE10#,CE10#,EE10#..MTM |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
AE10#,CE10#,EE10#..MTM |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-10030 |
AE100,101,EE10#..MTM |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-12080 |
AE10#,CE10#,EE10#..MTM |
1 | ||
| 33574B - RETAINER, SHIFT CABLE GROMMET, NO.2 | ||||
| 33574-12060 |
AE10#,CE10#,EE10#..MTM |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-16020 |
AE100,101,EE10#..MTM |
1 | ||
| 33608-16021 |
AE100,101,EE10#..MTM |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-12720 |
EE10#..MTM CHUO HATSUJO |
1 | ||
| 33821-12460 |
AE100,101,EE10#..MTM |
1 | ||
| 33821-12730 |
EE10#..MTM NIPPON CABLE |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-12720 |
EE10#..MTM CHUO HATSUJO |
1 | ||
| 33821-12460 |
AE100,101,EE10#..MTM |
1 | ||
| 33821-12730 |
EE10#..MTM NIPPON CABLE |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-12720 |
EE10#..MTM CHUO HATSUJO |
1 | ||
| 33821-12460 |
AE100,101,EE10#..MTM |
1 | ||
| 33821-12730 |
EE10#..MTM NIPPON CABLE |
1 | ||
| 33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01400 |
AE10#,CE10#,EE10#..MTM |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01398 |
AE10#,CE10#,EE10#..MTM |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
EE102,103..4F;EE103..5F..XL;AE10#,CE100,104,106,108,109,EE101,104,106,107,108..MTM SHIFT LEVER SIDE |
1 | ||
| 90201-08077 |
EE102,103..4F;EE103..5F..XL;AE10#,CE100,104,106,108,109,EE101,104,106,107,108..MTM 外径=30,TRANSAXLE SIDE |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
EE102,103..4F;EE103..5F..XL;AE10#,CE100,104,106,108,109,EE101,104,106,107,108..MTM SHIFT LEVER SIDE |
1 | ||
| 90201-08077 |
EE102,103..4F;EE103..5F..XL;AE10#,CE100,104,106,108,109,EE101,104,106,107,108..MTM 外径=30,TRANSAXLE SIDE |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
EE102,103..4F;EE103..5F..XL;AE10#,CE100,104,106,108,109,EE101,104,106,107,108..MTM SHIFT LEVER SIDE |
1 | ||
| 90201-08077 |
EE102,103..4F;EE103..5F..XL;AE10#,CE100,104,106,108,109,EE101,104,106,107,108..MTM 外径=30,TRANSAXLE SIDE |
2 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-12190 |
AE100,101,EE10#..MTM |
1 | ||
| 33822-12290 |
EE10#..MTM |
1 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90468-14016 | ||||
| 90468-14032 | ||||
| 90468-14034 | ||||
| 90468-14035 | ||||
| 91611-60822 | ||||
| 91611-61020 | ||||
| 91631-60828 | ||||
| 91651-40616 | ||||
| 94130-60800 | ||||
| 94531-00800 | ||||
| Linked diagrams | ||||
| 1107 | ||||
