EE103V-BXMNK (1994)

Toyota Sprinter

Production Jan 1994 - Jun 2002
Engine 5EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9401- )4EFE,5EFE..EE102,103,104..MTM

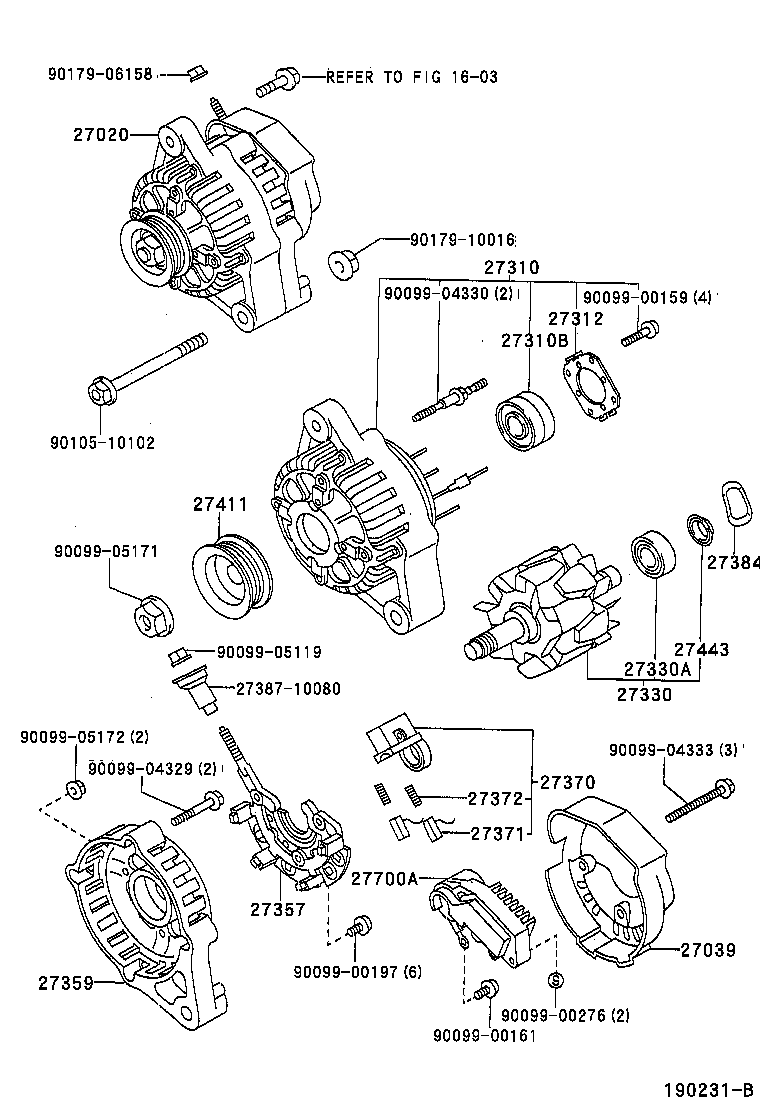

Click highlighted areas on diagram

12V 60A

diagram 1603 27020 27039 27310 27310B 27312 27330 27330A 27357 27359 27370 27371 27372 27384 2738710080 27411 27443 27700A 9009900159 9009900161 9009900197 9009900276 9009904329 9009904330 9009904333 9009905119 9009905171 9009905172 9010510102 9017906158 9017910016
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-11250

4EFE,5EFE..EE102,103,104..MTM

12V 60A

 1
27060-11270

4EFE,5EFE..EE10#..MTM

12V 70A

 1
27039 - COVER, ALTERNATOR REAR END
27039-16380

4AFE,2C,3CE,4EFE,5EFE..AE109,CE102,106,107,108,EE10#..MTM

 1
27039-11180

4EFE,5EFE..EE102,103,104..MTM

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-11160

4EFE,5EFE..EE102,103,104..MTM

 1
27310-16103

4EFE,5EFE..EE10#..MTM

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10178

4AFE,2C,3CE,4EFE,5EFE..AE109,CE102,106,107,108,EE10#..MTM

 1
27312 - PLATE, RETAINER
27312-70200

4AFE,2C,3CE,4EFE,5EFE..AE109,CE102,106,107,108,EE10#..MTM

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-11160

4EFE,5EFE..EE102,103,104..MTM

 1
27330-64570

4AFE,2C,3CE,4EFE,5EFE..AE109,CE102,106,107,108,EE10#..MTM

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

4AFE,2C,3CE,4EFE,5EFE..AE109,CE10#,EE10#

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-11180

4EFE,5EFE..EE102,103,104..MTM

 1
27357-16380

4AFE,2C,3CE,4EFE,5EFE..AE109,CE102,106,107,108,EE10#..MTM

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-72151

4EFE,5EFE..EE102,103,104..MTM

 1
27359-16182

4EFE,5EFE..EE10#..MTM

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-58320

2C,3CE,4EFE,5EFE..CE102,106,107,108,EE10#..MTM

 1
27370-58320

4EFE,5EFE..EE102,103,104..MTM

 1
27371 - BRUSH, ALTERNATOR
27371-70300

4A#,5AFE,2C,3CE,4EFE,5EFE..AE10#,CE102,106,107,108,EE10#..MTM

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

4A#,5AFE,2C,3CE,4EFE,5EFE..AE10#,CE102,106,107,108,EE10#..MTM

 2
27384 - WASHER
27384-16380

4AFE,2C,3CE,4EFE,5EFE..AE109,CE102,106,107,108,EE10#..MTM

 1
27411 - PULLEY, ALTERNATOR
27411-65010

4EFE,5EFE..EE10#..MTM

 1
27411-11160

4EFE,5EFE..EE102,103,104..MTM

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

4A#,5AFE,2C,3CE,4EFE,5EFE..AE10#,CE10#,EE10#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-11070

4EFE,5EFE..EE10#..MTM

 1
Common parts
27387-10080
90099-00159
90099-00161
90099-00197
90099-00276
90099-04329
90099-04330
90099-04333
90099-05119
90099-05171
90099-05172
90105-10102
90179-06158
90179-10016
Linked diagrams
1603
