EE103V-BXMNK (1994)
Toyota Sprinter

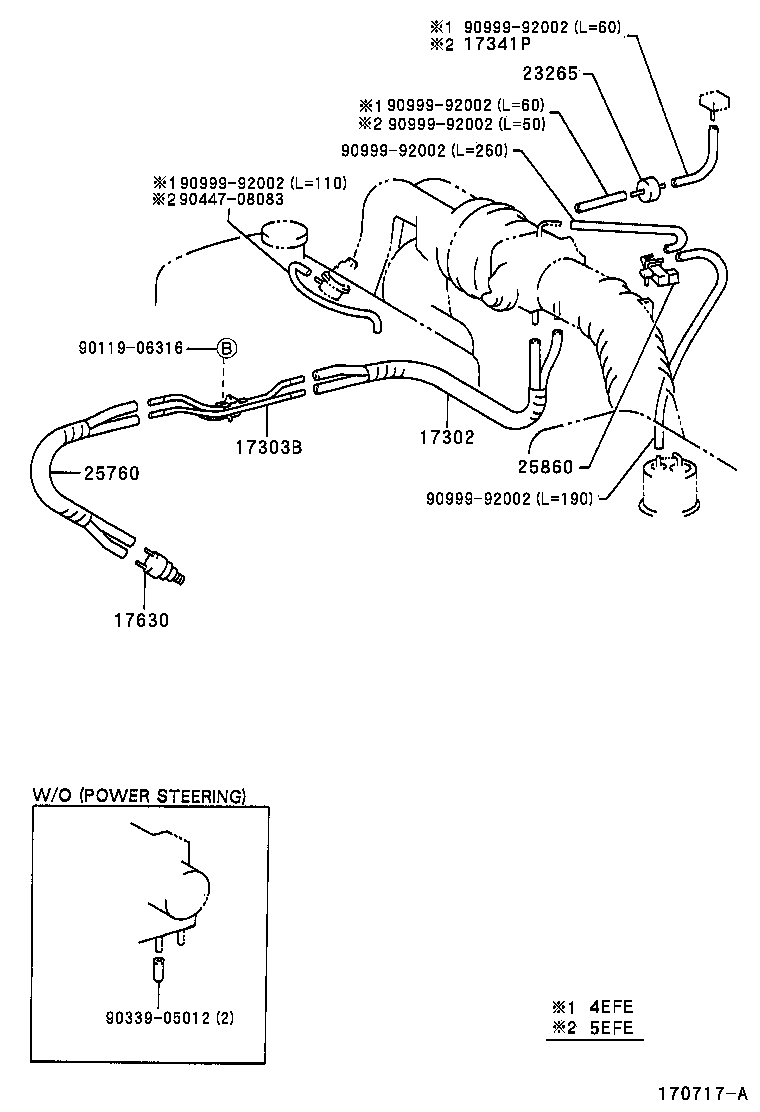

(9704-0008)4EFE,5EFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17302 - HOSE SUB-ASSY, AIR | ||||
| 17302-11100 |
4EFE,5EFE..EE10# |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11401 |
4EFE,5EFE..EE101,102,103,104 NO.1 |
1 | ||
| 17303-11880 |
4EFE,5EFE..EE10# |
1 | ||
| 17303-11700 |
5EFE..EE103,104 |
1 | ||
| 17341P - HOSE, AIR | ||||
| 17341-11440 |
5EFE..EE103,104 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-11050 |
4EFE,5EFE..EE101,102,103,104 NO.2 |
1 | ||
| 17630-11060 |
4EFE..EE102..5F;5EFE..EE103,104 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11030 |
4EFE,5EFE..EE101,102,103,104 |
1 | ||
| 25760 - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-11250 |
5EFE..EE103;4EFE,5EFE..EE101,104..L,LX,XE NO.1 |
1 | ||
| 25760-11230 |
4EFE,5EFE..EE101,102,103,104 NO.3 |
1 | ||
| 25760-11200 |
5EFE..EE103,104 NO.2 |
1 | ||
| 25760-11260 |
4EFE..EE102..5F;5EFE..EE103,104 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-11320 |
4EFE,5EFE..EE10# |
1 | ||
| 25860-11370 |
4EFE,5EFE..EE10# |
1 | ||
| Common parts | ||||
| 90119-06316 | ||||
| 90339-05012 | ||||
| 90447-08083 | ||||
| 90999-92002 | ||||

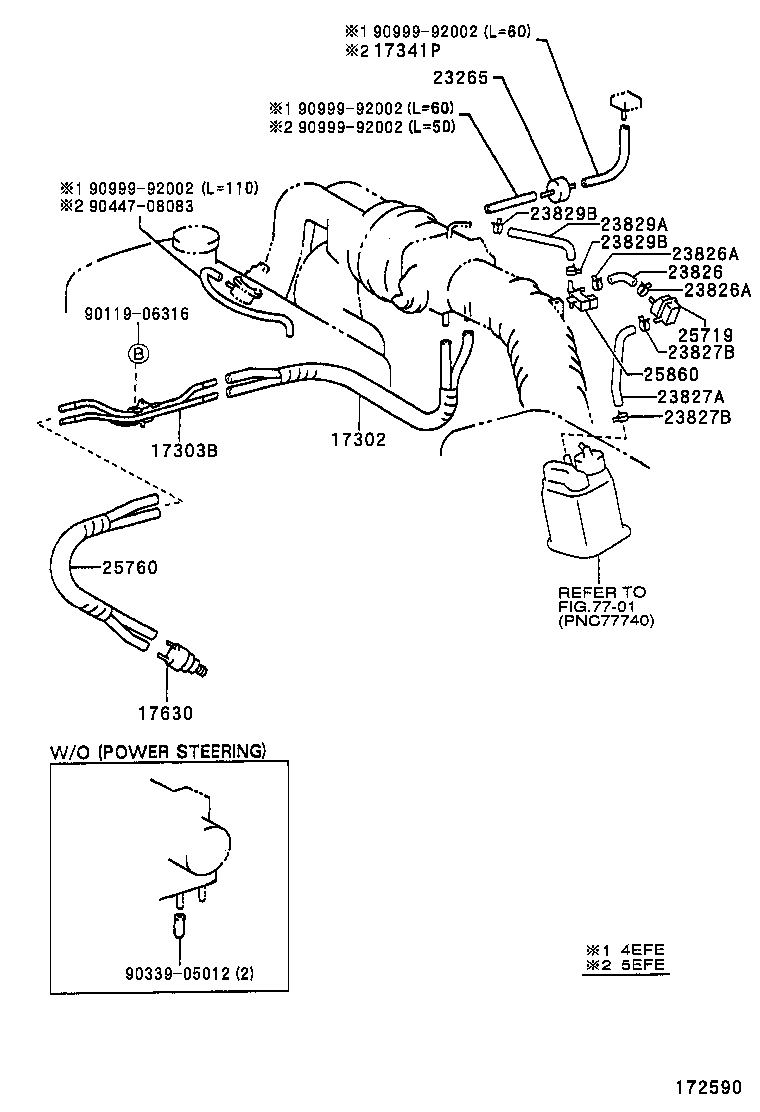

(0008- )4EFE,5EFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17302 - HOSE SUB-ASSY, AIR | ||||
| 17302-11100 |
4EFE,5EFE..EE10# |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11401 |
4EFE,5EFE..EE101,102,103,104 NO.1 |
1 | ||
| 17303-11880 |
4EFE,5EFE..EE10# |
1 | ||
| 17303-11700 |
5EFE..EE103,104 |
1 | ||
| 17341P - HOSE, AIR | ||||
| 17341-11440 |
5EFE..EE103,104 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-11050 |
4EFE,5EFE..EE101,102,103,104 NO.2 |
1 | ||
| 17630-11060 |
4EFE..EE102..5F;5EFE..EE103,104 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11030 |
4EFE,5EFE..EE101,102,103,104 |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-22060 |
4EFE,5EFE..EE10# |
1 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 96132-41100 |
4EFE,5EFE..EE10# |
2 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 96132-41100 |
4EFE,5EFE..EE10# |
2 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-11030 |
4EFE,5EFE..EE10# |
1 | ||
| 23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) | ||||
| 96132-41100 |
4EFE,5EFE..EE10# |
2 | ||
| 23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) | ||||
| 96132-41100 |
4EFE,5EFE..EE10# |
2 | ||
| 23829A - HOSE, FUEL VAPOR FEED | ||||
| 23829-11030 |
4EFE,5EFE..EE10# |
1 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 96132-41300 |
4EFE,5EFE..EE10# |
2 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 96132-41300 |
4EFE,5EFE..EE10# |
2 | ||
| 25719 - TANK, VACUUM SURGE | ||||
| 25719-62040 |
4EFE,5EFE..EE10# |
1 | ||
| 25760 - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-11250 |
5EFE..EE103;4EFE,5EFE..EE101,104..L,LX,XE NO.1 |
1 | ||
| 25760-11230 |
4EFE,5EFE..EE101,102,103,104 NO.3 |
1 | ||
| 25760-11200 |
5EFE..EE103,104 NO.2 |
1 | ||
| 25760-11260 |
4EFE..EE102..5F;5EFE..EE103,104 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-11320 |
4EFE,5EFE..EE10# |
1 | ||
| 25860-11370 |
4EFE,5EFE..EE10# |
1 | ||
| Common parts | ||||
| 90119-06316 | ||||
| 90339-05012 | ||||
| 90447-08083 | ||||
| 90999-92002 | ||||

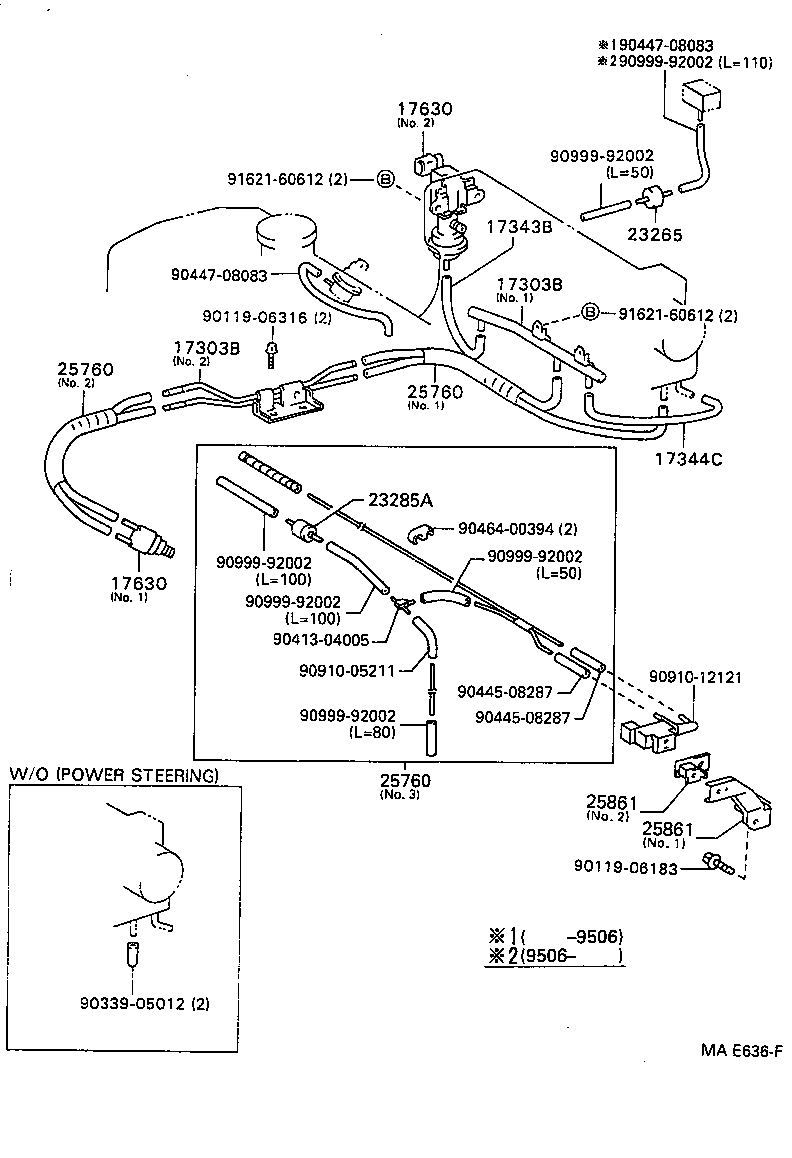

(9106-9704)4EFE,5EFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11401 |
4EFE,5EFE..EE101,102,103,104 NO.1 |
1 | ||
| 17303-11880 |
4EFE,5EFE..EE10# |
1 | ||
| 17303-11700 |
5EFE..EE103,104 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11401 |
4EFE,5EFE..EE101,102,103,104 NO.1 |
1 | ||
| 17303-11880 |
4EFE,5EFE..EE10# |
1 | ||
| 17303-11700 |
5EFE..EE103,104 |
1 | ||
| 17343B - HOSE, NO.3(FOR IDLE-UP) | ||||
| 17343-11080 |
4EFE,5EFE..EE101,102,103,104 |
1 | ||
| 17344C - HOSE, NO.4(FOR IDLE-UP) | ||||
| 17344-11030 |
4EFE,5EFE..EE101,102,103,104 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-11050 |
4EFE,5EFE..EE101,102,103,104 NO.2 |
1 | ||
| 17630-11060 |
4EFE..EE102..5F;5EFE..EE103,104 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-11050 |
4EFE,5EFE..EE101,102,103,104 NO.2 |
1 | ||
| 17630-11060 |
4EFE..EE102..5F;5EFE..EE103,104 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11030 |
4EFE,5EFE..EE101,102,103,104 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10080 |
4EFE,5EFE..EE101,102,103,104 |
1 | ||
| 25760 - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-11250 |
5EFE..EE103;4EFE,5EFE..EE101,104..L,LX,XE NO.1 |
1 | ||
| 25760-11230 |
4EFE,5EFE..EE101,102,103,104 NO.3 |
1 | ||
| 25760-11200 |
5EFE..EE103,104 NO.2 |
1 | ||
| 25760-11260 |
4EFE..EE102..5F;5EFE..EE103,104 |
1 | ||
| 25760 - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-11250 |
5EFE..EE103;4EFE,5EFE..EE101,104..L,LX,XE NO.1 |
1 | ||
| 25760-11230 |
4EFE,5EFE..EE101,102,103,104 NO.3 |
1 | ||
| 25760-11200 |
5EFE..EE103,104 NO.2 |
1 | ||
| 25760-11260 |
4EFE..EE102..5F;5EFE..EE103,104 |
1 | ||
| 25760 - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-11250 |
5EFE..EE103;4EFE,5EFE..EE101,104..L,LX,XE NO.1 |
1 | ||
| 25760-11230 |
4EFE,5EFE..EE101,102,103,104 NO.3 |
1 | ||
| 25760-11200 |
5EFE..EE103,104 NO.2 |
1 | ||
| 25760-11260 |
4EFE..EE102..5F;5EFE..EE103,104 |
1 | ||
| 25861 - BRACKET, VACUUM SWITCHING VALVE | ||||
| 25862-11010 |
4EFE,5EFE..EE101,102,103,104 NO.2 |
1 | ||
| 25861-11020 |
4EFE,5EFE..EE101,102,103,104 NO.1 |
1 | ||
| 25861 - BRACKET, VACUUM SWITCHING VALVE | ||||
| 25862-11010 |
4EFE,5EFE..EE101,102,103,104 NO.2 |
1 | ||
| 25861-11020 |
4EFE,5EFE..EE101,102,103,104 NO.1 |
1 | ||
| Common parts | ||||
| 90119-06183 | ||||
| 90119-06316 | ||||
| 90339-05012 | ||||
| 90413-04005 | ||||
| 90445-08287 | ||||
| 90447-08083 | ||||
| 90464-00394 | ||||
| 90910-05211 | ||||
| 90910-12121 | ||||
| 90999-92002 | ||||
| 91621-60612 | ||||
