EE101-BEKBK (1991)
Toyota Sprinter
Production
Jun 1991
-
May 1995
Engine
4EFE
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9106- )4EFE,5EFE..MTM

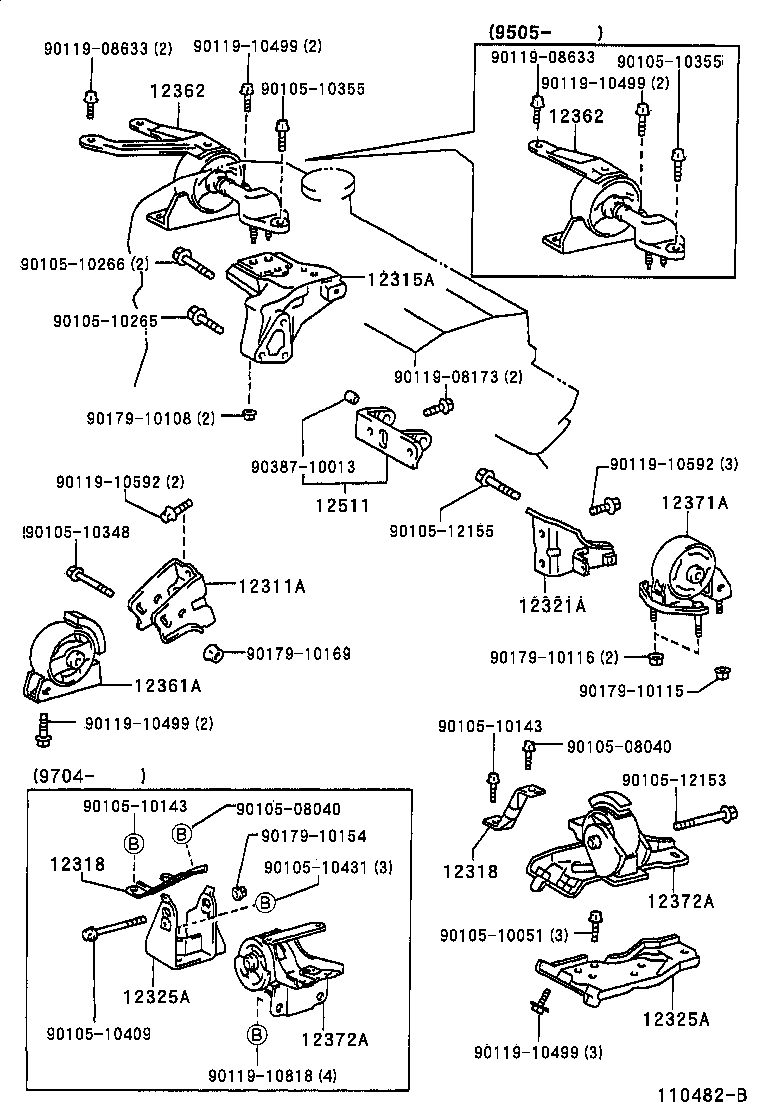

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-11090 |
2E,3E,4EFE,5EFE..EE10# |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-11050 |
2E,3E,4EFE,5EFE..EE10# |
1 | ||
| 12318 - STAY, ENGINE MOUNTING, LH | ||||
| 12318-16010 |
2E,3E,4EFE,5EFE..EE10#..MTM |
1 | ||
| 12318 - STAY, ENGINE MOUNTING, LH | ||||
| 12318-16010 |
2E,3E,4EFE,5EFE..EE10#..MTM |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-11190 |
2E,3E,4EFE..EE10#..MTM |
1 | ||
| 12321-11191 |
2E,3E,4EFE,5EFE..EE10#..MTM |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-16120 |
2E,3E,4EFE,5EFE..EE10#..MTM |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-16120 |
2E,3E,4EFE,5EFE..EE10#..MTM |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-11160 |
2E,3E,4EFE,5EFE..EE10#..MTM |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12305-11010 |
4EFE..EE101 |
1 | ||
| 12305-11020 |
4EFE..EE101..4F;2E,3E,4EFE,5EFE..EE102,103,104,106,107,108 |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12305-11010 |
4EFE..EE101 |
1 | ||
| 12305-11020 |
4EFE..EE101..4F;2E,3E,4EFE,5EFE..EE102,103,104,106,107,108 |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-11431 |
2E,3E,4EFE,5EFE..EE10#..MTM |
1 | ||
| 12371-11430 |
2E,3E,4EFE..EE10#..MTM |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-11230 |
2E,3E,4EFE,5EFE..EE10#..MTM |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-11230 |
2E,3E,4EFE,5EFE..EE10#..MTM |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-11020 |
2E,3E,4EFE,5EFE..EE10# |
1 | ||
| Common parts | ||||
| 90105-08040 | ||||
| 90105-10051 | ||||
| 90105-10143 | ||||
| 90105-10265 | ||||
| 90105-10266 | ||||
| 90105-10348 | ||||
| 90105-10355 | ||||
| 90105-10409 | ||||
| 90105-10431 | ||||
| 90105-12153 | ||||
| 90105-12155 | ||||
| 90119-08173 | ||||
| 90119-08633 | ||||
| 90119-10499 | ||||
| 90119-10592 | ||||
| 90119-10818 | ||||
| 90179-10108 | ||||
| 90179-10115 | ||||
| 90179-10116 | ||||
| 90179-10154 | ||||
| 90179-10169 | ||||
| 90387-10013 | ||||
