EE101-BEHNK (1991)
Toyota Sprinter
Production
Jun 1991
-
May 1995
Engine
4EFE
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9106- )EE10#

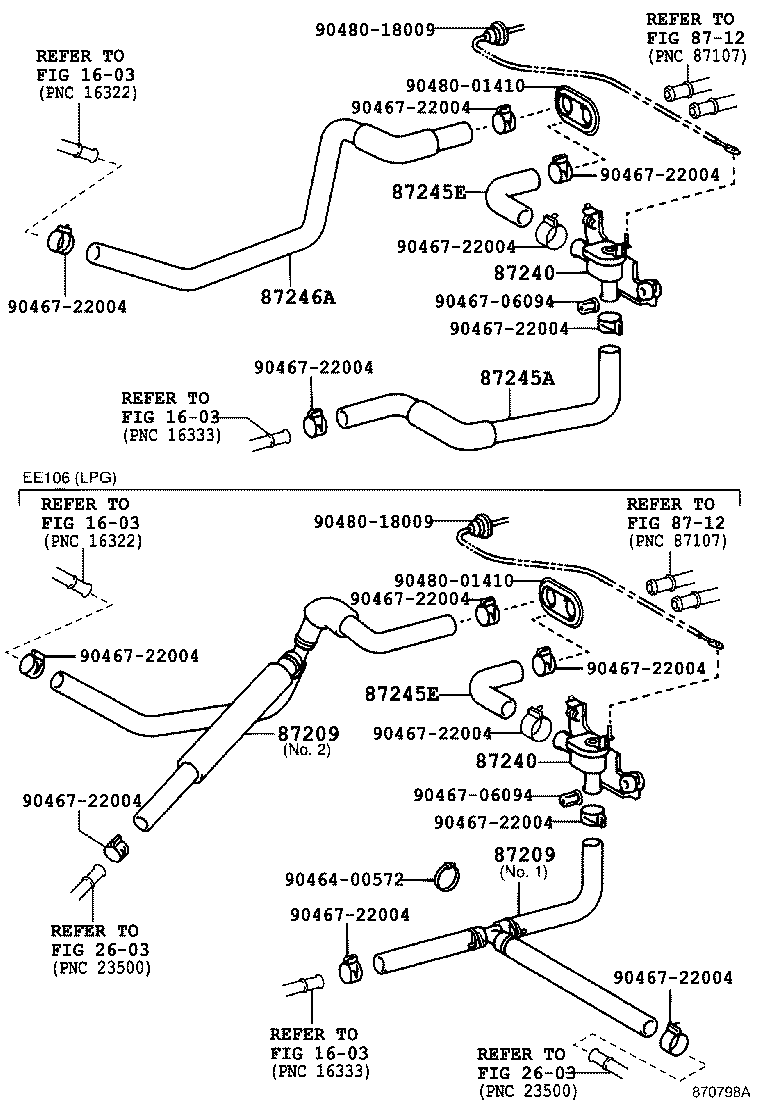

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-12250 |
AE10#,CE10#,EE10# |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-12250 |
AE10#,CE10#,EE10# |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-1A450 |
EE10# |
1 | ||
| 87245-1A680 |
EE10# |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-1A440 |
AE10#,CE10#,EE10# |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-1A440 |
AE10#,CE10#,EE10# |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-1A211 |
EE10# |
1 | ||
| 87245-1A670 |
EE10# |
1 | ||
| Common parts | ||||
| 90464-00572 | ||||
| 90467-06094 | ||||
| 90467-22004 | ||||
| 90480-01410 | ||||
| 90480-18009 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 2603 | ||||
| 8712 | ||||
