EE101-BEHNK (1991)
Toyota Sprinter
ILLUST NO. 8 OF 8(9106- )
FLOOR,REAR DOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80197 |
AE100,101,EE101..GT,SEG,SEL,XE |
1 | ||
| 83320-80271 |
AE100,101,EE101..GT,SEG,SEL,XE |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80197 |
AE100,101,EE101..GT,SEG,SEL,XE |
1 | ||
| 83320-80271 |
AE100,101,EE101..GT,SEG,SEL,XE |
1 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12120 |
AE10#,CE100,104,EE101 PLANT NO.A31,32 |
2 | ||
| 84231-12080 |
AE10#,CE100,104,EE101 PLANT NO.M12,B11,K21 |
2 | ||
| 84231-12080 |
AE10#,CE10#,EE10# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12120 |
AE10#,CE100,104,EE101 PLANT NO.A31,32 |
2 | ||
| 84231-12080 |
AE10#,CE100,104,EE101 PLANT NO.M12,B11,K21 |
2 | ||
| 84231-12080 |
AE10#,CE10#,EE10# |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-12090 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE |
1 | ||
| 84739A - RETAINER, SWITCH | ||||
| 84739-12010 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE |
2 | ||
| 84739-12010 |
AE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE |
2 | ||
| 84739A - RETAINER, SWITCH | ||||
| 84739-12010 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE |
2 | ||
| 84739-12010 |
AE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12090W3 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
2 | ||
| 84810-12090P0 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE SHADOW GRAY,TRIM1# |
2 | ||
| 84810-20220K0 |
AE10#,CE100,104,EE101..SEG,SEL,XE TAUPE,TRIM9# |
2 | ||
| 84810-12090K0 |
AE10#,CE100,104,EE101..SEG,SEL,XE TAUPE,TRIM9# |
2 | ||
| 84810-12090P0 |
AE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE SHADOW GRAY,TRIM1# |
2 | ||
| 84810-20220B0 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE SHADOW GRAY,TRIM1# |
2 | ||
| 84810-12090K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12090W3 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
2 | ||
| 84810-12090P0 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE SHADOW GRAY,TRIM1# |
2 | ||
| 84810-20220K0 |
AE10#,CE100,104,EE101..SEG,SEL,XE TAUPE,TRIM9# |
2 | ||
| 84810-12090K0 |
AE10#,CE100,104,EE101..SEG,SEL,XE TAUPE,TRIM9# |
2 | ||
| 84810-12090P0 |
AE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE SHADOW GRAY,TRIM1# |
2 | ||
| 84810-20220B0 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE SHADOW GRAY,TRIM1# |
2 | ||
| 84810-12090K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
2 | ||
| Common parts | ||||
| 90119-06582 | ||||
| 90159-50219 | ||||
| 91651-40612 | ||||
| 93269-15008 | ||||
| 93319-14008 | ||||
| 93560-15016 | ||||
ILLUST NO. 4 OF 8(9106- )
COWL RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AE10#,CE10#,EE10# |
1 | ||
| 82223E - WIRE, CLUTCH START SWITCH | ||||
| 82223-12530 |
AE10#,CE10#,EE10# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
AE10#,CE10#,EE10# 20A,黄 |
4 | ||
| 90982-07011 |
AE10#,CE10#,EE10# 30A,緑 |
1 | ||
| 90982-09003 |
AE10#,CE10#,EE10# 15A |
5 | ||
| 90982-09002 |
AE10#,CE10#,EE10# 10A |
4 | ||
| 90982-09005 |
EE103..XL;EE102,103..(3FC,4F)..(DX,DXJ);AE10#,CE100,104,106,108,109,EE101,104,106,107,108 7.5A |
3 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
AE10#,CE10#,EE10# 30A,緑 |
1 | ||
| 90982-09004 |
AE10#,CE10#,EE10# 20A,黄 |
4 | ||
| 90982-09003 |
AE10#,CE10#,EE10# 15A |
5 | ||
| 90982-09002 |
AE10#,CE10#,EE10# 10A |
4 | ||
| 90982-09005 |
EE103..XL;EE102,103..(3FC,4F)..(DX,DXJ);AE10#,CE100,104,106,108,109,EE101,104,106,107,108 7.5A |
3 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-12160 |
AE10#,CE10#,EE10# |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
AE10#,CE10#,EE10# 30A,ﾋﾟﾝｸ |
1 | ||
| 90982-10002 |
AE10#,CE10#,EE10# 40A,緑 |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
AE10#,CE10#,EE10# 30A,ﾋﾟﾝｸ |
1 | ||
| 90982-10002 |
AE10#,CE10#,EE10# 40A,緑 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-12060 |
AE10#,CE100,104,EE101..GT,SEG,SEL,XE |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-12290 |
AE10#,CE10#,EE10# |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-12130 |
AE10#,CE10#,EE10# |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-12150 |
AE10#,CE10#,EE10# |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-12200 |
AE10#,CE10#,EE10# 上側 |
1 | ||
| 82672-12210 |
AE10#,CE10#,EE10# 下側 |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-12200 |
AE10#,CE10#,EE10# 上側 |
1 | ||
| 82672-12210 |
AE10#,CE10#,EE10# 下側 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32090 |
AE10#,CE10#,EE10# |
1 | ||
| 84340-32050 |
AE10#,CE10#,EE10# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
AE10#,CE10#,EE10# |
1 | ||
| 84727 - SWITCH, SHIFT LOCK CONTROL | ||||
| 84727-12050 |
AE100,EE10#..3FC |
1 | ||
| 85431 - SOLENOID, SHIFT LOCK | ||||
| 85431-12040 |
AE100,EE10#..3FC |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02009 |
AE10#,CE10#,EE10# |
1 | ||
| 85933 - COMPUTER, SHIFT LOCK CONTROL | ||||
| 85933-12050 |
AE100,EE10#..3FC |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02009 |
AE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE |
1 | ||
| 86650E - BUZZER ASSY | ||||
| 86650-12030 |
AE10#,CE10#,EE10#..CTD,DX,GT,L,LX,SEL,XE,XL |
1 | ||
| 86650-12030 |
AE10#,CE10#,EE10# |
1 | ||
| 86650-12030 |
CE100,104;AE10#,CE106,108,109,EE10#..CTD,DX,GT,L,LX,XE,XL |
1 | ||
| Common parts | ||||
| 89250-12010 | ||||
| 90119-06657 | ||||
| 90159-40027 | ||||
| 90179-06216 | ||||
| 91651-60614 | ||||
| 93315-14012 | ||||
| 93319-14006 | ||||
| 93319-15010 | ||||
| 93568-55014 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 5804 | ||||
ILLUST NO. 5 OF 8(9106- )
COWL LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
AE10#,CE10#,EE10# 20A,黄 |
4 | ||
| 90982-07011 |
AE10#,CE10#,EE10# 30A,緑 |
1 | ||
| 90982-09003 |
AE10#,CE10#,EE10# 15A |
5 | ||
| 90982-09002 |
AE10#,CE10#,EE10# 10A |
4 | ||
| 90982-09005 |
EE103..XL;EE102,103..(3FC,4F)..(DX,DXJ);AE10#,CE100,104,106,108,109,EE101,104,106,107,108 7.5A |
3 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
AE10#,CE10#,EE10# 30A,緑 |
1 | ||
| 90982-09004 |
AE10#,CE10#,EE10# 20A,黄 |
4 | ||
| 90982-09003 |
AE10#,CE10#,EE10# 15A |
5 | ||
| 90982-09002 |
AE10#,CE10#,EE10# 10A |
4 | ||
| 90982-09005 |
EE103..XL;EE102,103..(3FC,4F)..(DX,DXJ);AE10#,CE100,104,106,108,109,EE101,104,106,107,108 7.5A |
3 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
AE10#,CE10#,EE10# 30A,ﾋﾟﾝｸ |
1 | ||
| 90982-10002 |
AE10#,CE10#,EE10# 40A,緑 |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
AE10#,CE10#,EE10# 30A,ﾋﾟﾝｸ |
1 | ||
| 90982-10002 |
AE10#,CE10#,EE10# 40A,緑 |
1 | ||
| 82670B - BLOCK ASSY, JUNCTION, NO.2 | ||||
| 82670-12250 |
AE10#,CE10#,EE10# |
1 | ||
| 82671C - BLOCK, JUNCTION | ||||
| 82671-12140 |
AE10#,CE10#,EE10# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
AE10#,CE10#,EE10# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AE10#,CE10#,EE10# |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-12200 |
AE10#,CE100,104,EE101..GT,LX,XE |
1 | ||
| 85980-12160 |
AE10#,CE100,104,EE101..GT,LX,XE |
1 | ||
| Common parts | ||||
| 91651-40612 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 7 OF 8(9106- )
ROOF,FRONT DOOR & SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12080 |
AE10#,CE10#,EE10# |
2 | ||
| 84231-12120 |
AE10#,CE100,104,EE101 PLANT NO.A31,32 |
2 | ||
| 84231-12080 |
AE10#,CE100,104,EE101 PLANT NO.M12,B11,K21 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12080 |
AE10#,CE10#,EE10# |
2 | ||
| 84231-12120 |
AE10#,CE100,104,EE101 PLANT NO.A31,32 |
2 | ||
| 84231-12080 |
AE10#,CE100,104,EE101 PLANT NO.M12,B11,K21 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
AE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-12220 |
AE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE |
1 | ||
| 84820-12221 |
AE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-12061 |
AE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE |
1 | ||
| 84931-12060 |
AE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-12280 |
EE101 |
1 | ||
| 89425-19455 |
AE100,101,EE10# |
1 | ||
| 89425-19455 |
AE100,101,EE106,107,108 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-12280 |
EE101 |
1 | ||
| 89425-19455 |
AE100,101,EE10# |
1 | ||
| 89425-19455 |
AE100,101,EE106,107,108 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-12280 |
EE101 |
1 | ||
| 89425-19455 |
AE100,101,EE10# |
1 | ||
| 89425-19455 |
AE100,101,EE106,107,108 |
1 | ||
| Common parts | ||||
| 82711-1E050 | ||||
| 82711-1E080 | ||||
| 90119-06582 | ||||
| 90430-08252 | ||||
| 91621-60610 | ||||
| 91651-60610 | ||||
| 91651-60616 | ||||
| 93540-54012 | ||||
| 93567-55014 | ||||

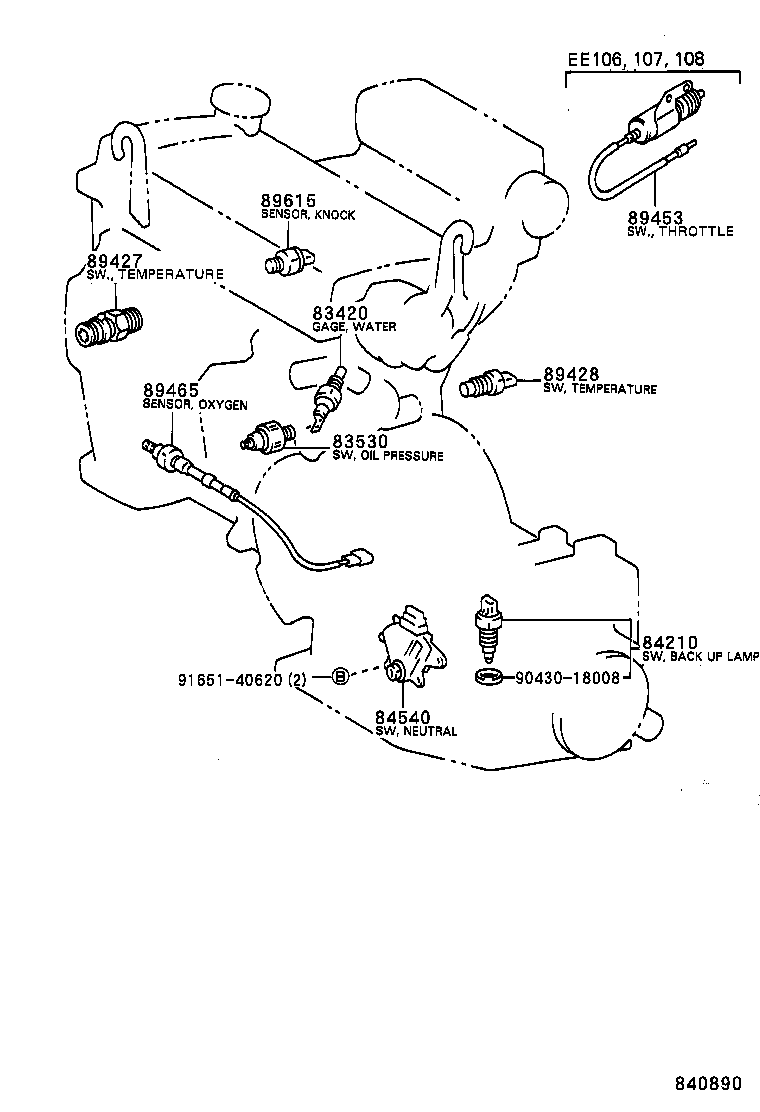

ILLUST NO. 1 OF 8(9106- )EE10#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
AE10#,EE10# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30080 |
AE101,EE10#..CTD,DX,GT,L,LX,XE,XL |
1 | ||
| 83530-14060 |
EE10# NIPPONDENSO |
1 | ||
| 83530-30090 |
EE10# YAZAKI |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-16040 |
AE10#,CE100,106,108,EE10#..ATM |
1 | ||
| 84540-16040 |
AE100,104,CE100,106,108,EE10#..ATM |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-12160 |
AE10#,EE10# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-10020 |
EE101,106,107,108 |
1 | ||
| Common parts | ||||
| 90430-18008 | ||||
| 91651-40620 | ||||
ILLUST NO. 3 OF 8(9106- )
INSTRUMENT PANEL SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12330 |
AE10#,CE10#,EE10#..DX,GT,L,LX,SEG,SEL,XE,XL |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12330 |
AE10#,CE10#,EE10#..DX,GT,L,LX,SEG,SEL,XE,XL |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
AE10#,CE10#,EE10# 14V 0.84W |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
AE10#,CE10#,EE10# 14V 0.84W |
1 | ||
| 84330D - CAP, HAZARD WARNING SWITCH BULB | ||||
| 84998-10610 |
AE10#,CE10#,EE10# |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-12170 |
CE102,105,106,107,109,EE101,102,106 ﾅｼ(ECON ｽｲﾂﾁ) |
1 | ||
| 84660-12160 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XE,XL |
1 | ||
| 84660-12160 |
AE100,104,109,CE10#,EE10# |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-20060 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XE,XL 14V 0.08A |
1 | ||
| 88607-20060 |
AE100,104,109,CE10#,EE10# 14V 0.08A |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12310 |
AE100,104,CE100,104,EE101..LX,XE ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84732-12310 |
CE100..LX;EE101..LX,XE;AE100,104,CE104..DX,LX ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84732-12200 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XE,XL |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12310 |
AE100,104,CE100,104,EE101..LX,XE ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84732-12310 |
CE100..LX;EE101..LX,XE;AE100,104,CE104..DX,LX ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84732-12200 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XE,XL |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11040 |
AE100,104,109,CE10#,EE10# 12V 2W |
1 | ||
| 90981-11040 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XE,XL 12V 2W |
1 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10100 |
AE100,104,109,CE10#,EE10# |
1 | ||
| 84998-10100 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XE,XL |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10470 |
AE10#,CE10#,EE10# 14V 1.12W |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10470 |
AE10#,CE10#,EE10# 14V 1.12W |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10470 |
AE10#,CE10#,EE10# 14V 1.12W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-12100 |
AE10#,CE100,104,106,109,EE101,107..GT,XE,XL |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-89106 |
AE10#,CE10#,EE10# |
1 | ||
| 85500-12240 |
AE10#,CE10#,EE10# |
1 | ||
| 85500-89106 |
AE10#,CE100,104,EE101 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10230 |
AE10#,CE10#,EE10# 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
AE10#,CE10#,EE10# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12070 |
AE10#,CE10#,EE10# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-89101 |
AE10#,CE10#,EE10# |
1 | ||
| 85520-89101 |
AE10#,CE100,104,EE101 |
1 | ||
| Common parts | ||||
| 93540-53010 | ||||
| Linked diagrams | ||||
| 8410 | ||||
| 8420 | ||||
ILLUST NO. 2 OF 8(9106- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-16020 |
4A#,5AFE,2E,3E,4EFE,5EFE..AE10#,EE10# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
AE10#,CE10#,EE10# 30A,緑 |
1 | ||
| 90982-09004 |
AE10#,CE10#,EE10# 20A,黄 |
4 | ||
| 90982-09003 |
AE10#,CE10#,EE10# 15A |
5 | ||
| 90982-09002 |
AE10#,CE10#,EE10# 10A |
4 | ||
| 90982-09005 |
EE103..XL;EE102,103..(3FC,4F)..(DX,DXJ);AE10#,CE100,104,106,108,109,EE101,104,106,107,108 7.5A |
3 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
AE10#,CE10#,EE10# 30A,緑 |
1 | ||
| 90982-09004 |
AE10#,CE10#,EE10# 20A,黄 |
4 | ||
| 90982-09003 |
AE10#,CE10#,EE10# 15A |
5 | ||
| 90982-09002 |
AE10#,CE10#,EE10# 10A |
4 | ||
| 90982-09005 |
EE103..XL;EE102,103..(3FC,4F)..(DX,DXJ);AE10#,CE100,104,106,108,109,EE101,104,106,107,108 7.5A |
3 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12020 |
AE10#,CE10#,EE10# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12220 |
AE10#,CE10#,EE10# 下側 |
1 | ||
| 82661-12200 |
AE10#,CE10#,EE10# 上側 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12220 |
AE10#,CE10#,EE10# 下側 |
1 | ||
| 82661-12200 |
AE10#,CE10#,EE10# 上側 |
1 | ||
| 82670C - BLOCK ASSY, JUNCTION, NO.3 | ||||
| 82670-12270 |
AE10#,CE10#,EE101,102,103,104..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL |
1 | ||
| 82671D - BLOCK, JUNCTION | ||||
| 82671-12170 |
AE10#,CE10#,EE101,102,103,104..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12220 |
AE10#,CE10#,EE10# |
1 | ||
| 82672C - COVER, JUNCTION BLOCK | ||||
| 82672-12250 |
AE10#,CE10#,EE101,102,103,104 UPPER |
1 | ||
| 82672-12230 |
AE10#,CE10#,EE10# LOWER |
1 | ||
| 82672C - COVER, JUNCTION BLOCK | ||||
| 82672-12250 |
AE10#,CE10#,EE101,102,103,104 UPPER |
1 | ||
| 82672-12230 |
AE10#,CE10#,EE10# LOWER |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
AE10#,CE10#,EE10# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
AE10#,CE10#,EE10# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03003 |
AE10#,CE10#,EE10# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
AE10#,CE10#,EE10# |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02009 |
AE10#,CE100,EE101 |
2 | ||
| 90987-02009 |
AE10#,CE10#,EE10# |
2 | ||
| 90987-02009 |
AE10#,CE108,EE108..GT,L,SEG,SEL;CE100,104,106,109,EE101,106,107 |
2 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-04003 |
AE10#,CE10#,EE10# |
1 | ||
| Common parts | ||||
| 23322-64020 | ||||
| 23344-54010 | ||||
| 90119-06390 | ||||
| 90119-06473 | ||||
| 90119-06539 | ||||
| 90179-06244 | ||||
| 91651-40614 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
ILLUST NO. 6 OF 8(9106- )
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-20030 |
AE10#,CE10#,EE10# |
1 | ||
| 84052-12060 |
AE10#,CE10#,EE10# |
1 | ||
| 84052-16020 |
AE10#,CE10#,EE10# |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80079 |
AE10#,CE100,104,106,109,EE101,107..GT,SEL,XE,XL |
1 | ||
| 84112-80141 |
AE10#,CE100,104,106,109,EE101,107..GT,SEL,XE,XL |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12300 |
AE10#,CE100,104,106,109,EE101,107..GT,SEL,XE,XL |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-1A500 |
AE100,104,CE100,104,EE101..XE |
1 | ||
| 84310-1A500 |
AE100,104,CE100,104,EE101..LX,XE |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
AE10#,CE100,104,106,109,EE101,107..GT,SEL,XE,XL |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12180 |
AE10#,CE10#,EE10# |
1 | ||
| 84450-20260 |
AE10#,CE10#,EE10# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-1A150 |
AE100,104,CE100,104,EE101..LX,XE |
1 | ||
| 84652-1A150 |
AE100,104,CE100,104,EE101..XE |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-20050 |
AE10#,CE100,106,108,EE10#..ATM |
1 | ||
| 85432-12010 |
AE10#,CE100,106,108,EE10#..ATM |
1 | ||
| Common parts | ||||
| 82711-1A380 | ||||
| 90464-00551 | ||||
| 93315-14012 | ||||
| 93319-13008 | ||||
| 93319-14008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
