EE101-BEHNK (1991)

Toyota Sprinter

Production Jun 1991 - May 1995
Engine 4EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

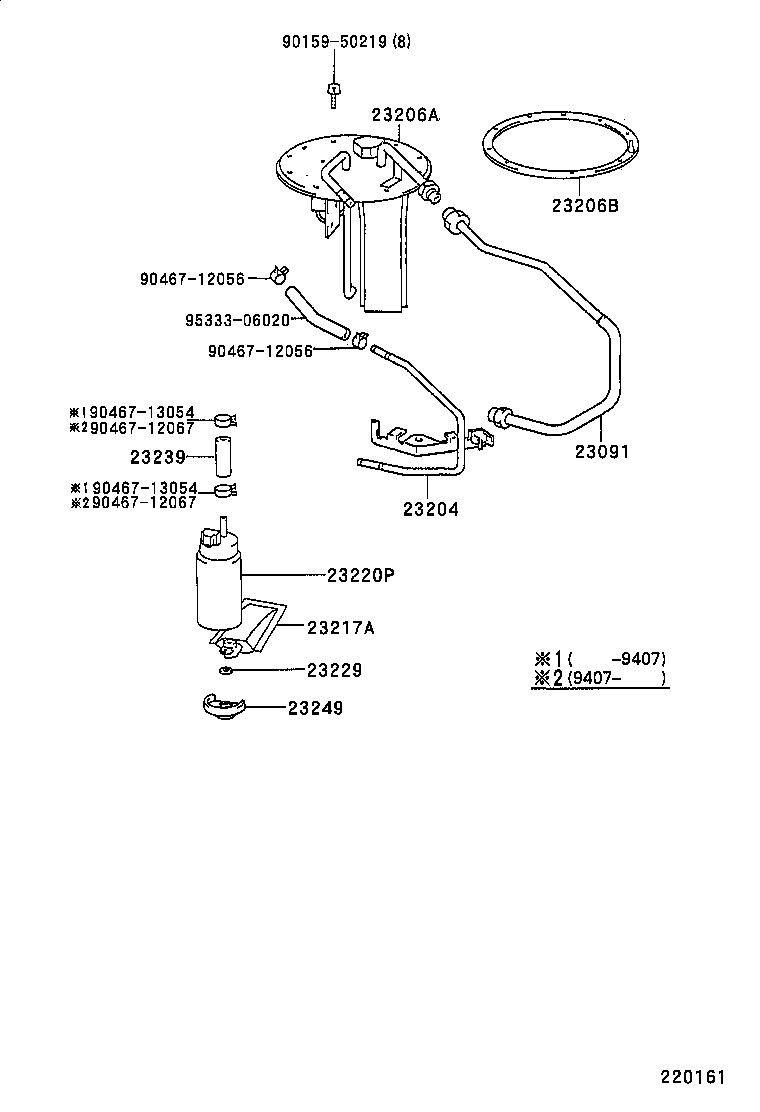

ILLUST NO. 3 OF 3(9106- )4EFE,5EFE

Click highlighted areas on diagram

diagram 23091 23204 23206A 23206B 23217A 23220P 23229 23239 23249 9015950219 9046712056 9046712056 9046712067 9046712067 9046713054 9046713054 9533306020
Part # Description Qty Price
23091 - TUBE SUB-ASSY, FUEL PUMP
23091-16060

4EFE,5EFE..EE101,102,103,104

 1
23204 - TUBE SUB-ASSY, FUEL PUMP RETURN
23204-16510

4EFE,5EFE..EE101,102,103,104

 1
23206A - BRACKET, FUEL PUMP
23206-16560

4EFE,5EFE..EE101,102,103,104

 1
23206B - GASKET, FUEL PUMP BRACKET
77169-12030

4EFE,5EFE..EE101,102,103,104

 1
23217A - FILTER, FUEL PUMP
23217-74020

4EFE,5EFE..EE101,102,103,104

 1
23220P - PUMP ASSY, FUEL
23220-74020

4EFE,5EFE..EE101,102,103,104

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

4EFE,5EFE..EE101,102,103,104

 1
23239 - HOSE
23239-11010

4EFE,5EFE..EE10#

 1
23239-63010

4EFE,5EFE..EE101,102,103,104

 1
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-74610

4EFE,5EFE..EE101,102,103,104

 1
Common parts
90159-50219
90467-12056
90467-12067
90467-13054
95333-06020

ILLUST NO. 1 OF 3(9106-9704)4EFE,5EFE

Click highlighted areas on diagram

diagram 2182125180 22210 22210Y 22215 22230 22271 23250 23250B 23250C 23280 23280E 23291 23300P 23300T 23300T 23300U 23801F 23801G 23801H 23801H 23801P 23802C 23802D 23802D 23807 23807V 8404 9011608347 9011908145 9017908054 9033907016 9151160840 9162160612 9162160612 9165160625 9331514010 9613230600
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22210-11280

4EFE..EE101,102..3FC

 1
22210Y - RING, O(FOR AIR TUBE)
96711-19009

4EFE,5EFE..EE101,102,103,104

 1
22215 - GASKET, THROTTLE BODY COVER
22215-11110

4EFE,5EFE..EE101,102,103,104

 1
22230 - VALVE ASSY, AUXILIARY AIR
22230-11080

4EFE,5EFE..EE101,102,103,104..3FC

 1
22271 - GASKET, THROTTLE BODY
22271-11020

4EFE,5EFE..EE101,102,103,104

 1
23250 - INJECTOR ASSY, FUEL
23209-11050

4EFE,5EFE..EE101,102,103,104

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

4EFE,5EFE..EE101,102,103,104

 4
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

4EFE,5EFE..EE101,102,103,104

 4
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-11040

4EFE,5EFE..EE101,102,103,104

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07001

4EFE,5EFE..EE101,102,103,104

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

4EFE,5EFE..EE101,102,103,104

 4
23300P - FILTER, FUEL(FOR EFI)
23300-19295

4EFE,5EFE..EE101,102,103,104

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12026

4EFE,5EFE..EE101,102,103,104

 2
23300T - GASKET(FOR FUEL FILTER)
90430-12026

4EFE,5EFE..EE101,102,103,104

 2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

4EFE,5EFE..EE101,102,103,104

 1
23801F - HOSE, FUEL, NO.1
23271-11130

4EFE,5EFE..EE101,102,103,104

 1
23801G - BOLT, UNION(FOR FUEL PIPE)
90401-12029

4EFE,5EFE..EE101,102,103,104

 1
23801H - GASKET(FOR FUEL PIPE)
90430-12026

4EFE,5EFE..EE101,102,103,104

 2
23801H - GASKET(FOR FUEL PIPE)
90430-12026

4EFE,5EFE..EE101,102,103,104

 2
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-11050

4EFE..EE101

 1
23802C - BOLT, UNION(FOR FUEL PIPE NO.2)
90401-08010

4EFE..EE101

 1
90401-08004

4EFE,5EFE..EE101,102,103,104

 1
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-08014

4EFE,5EFE..EE101,102,103,104

 2
90430-08012

4EFE..EE101

 2
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-08014

4EFE,5EFE..EE101,102,103,104

 2
90430-08012

4EFE..EE101

 2
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-11030

4EFE,5EFE..EE101,102,103,104

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23890-11010

4EFE,5EFE..EE101,102,103,104

 2
Common parts
21821-25180
90116-08347
90119-08145
90179-08054
90339-07016
91511-60840
91621-60612
91651-60625
93315-14010
96132-30600
Linked diagrams
8404
