EE101-BEHNK (1991)

Toyota Sprinter

Production Jun 1991 - May 1995
Engine 4EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )4EFE,5EFE..3FC

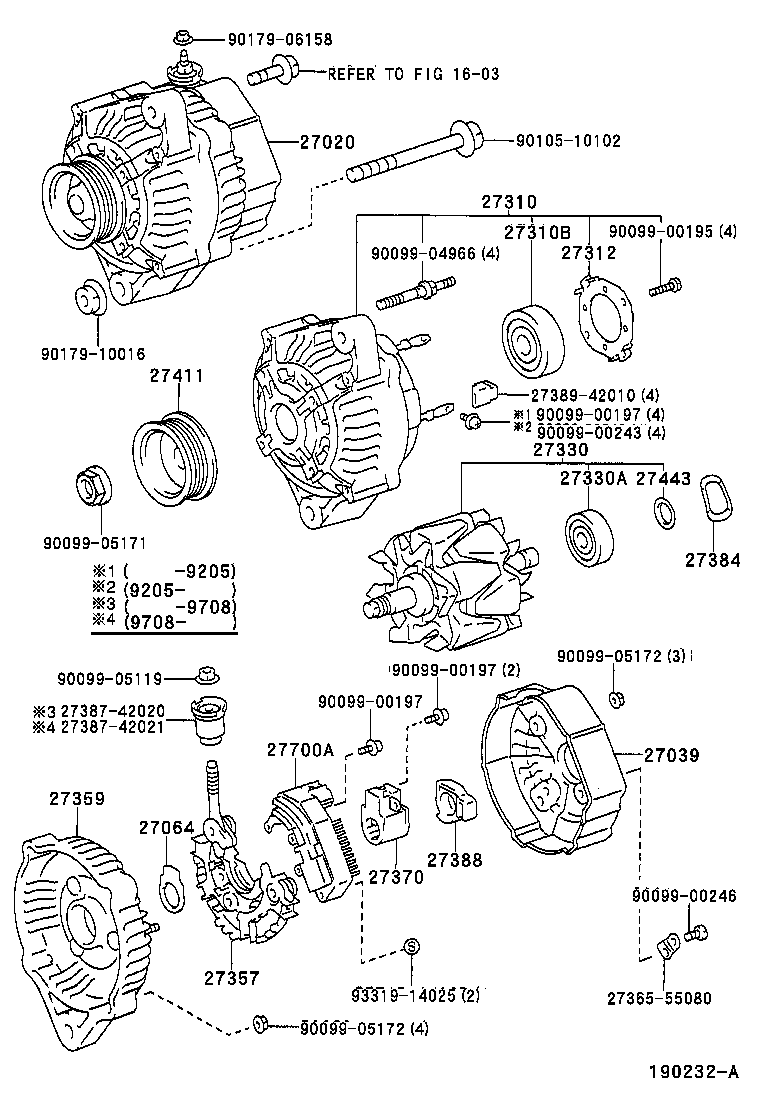

Click highlighted areas on diagram

12V 70A

diagram 1603 27020 27039 27064 27310 27310B 27312 27330 27330A 27357 27359 2736555080 27370 27384 2738742020 2738742021 27388 2738942010 27411 27443 27700A 9009900195 9009900197 9009900197 9009900197 9009900243 9009900246 9009904966 9009905119 9009905171 9009905172 9009905172 9010510102 9017906158 9017910016 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-11200

4EFE..EE101..3FC

12V 70A

 1
27060-11280

4EFE..EE101..3FC

12V 70A

 1
27060-11281

4EFE,5EFE..EE101,102,103,104..3FC

12V 70A

 1
27039 - COVER, ALTERNATOR REAR END
27039-42010

4A#,5AFE,4EFE..AE10#,EE101..ATM

 1
27039-42010

4EFE..EE101..3FC

 1
27039-55080

4A#,5AFE,4EFE..AE10#,EE101..ATM

 1
27039-55080

2C..CE100,104;4A#,5AFE,4EFE..AE10#,EE101..ATM

 1
27064 - SEAL, ALTERNATOR PLATE
27064-42010

2C..CE100,104;4A#,5AFE,4EFE..AE10#,EE101..ATM

 1
27064-42010

4A#,5AFE,4EFE..AE10#,EE101..ATM

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-16270

4EFE,5EFE..EE101,102,103,104..3FC

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10192

4A#,5AFE,4EFE..AE10#,EE101..ATM

 1
90099-10192

2C,3CE..CE100,104,105,109;4A#,5AFE,2C,3CE,4EFE,5EFE..AE10#,CE102,106,107,108,EE10#..ATM

 1
90099-10192

2C..CE100,104;4A#,5AFE,4EFE..AE10#,EE101..ATM

 1
27312 - PLATE, RETAINER
27312-42010

4A#,5AFE,4EFE..AE10#,EE101..ATM

 1
27312-42010

2C,3CE..CE100,104,105,109;4A#,5AFE,2C,3CE,4EFE,5EFE..AE10#,CE102,106,107,108,EE10#..ATM

 1
27312-42010

2C..CE100,104;4A#,5AFE,4EFE..AE10#,EE101..ATM

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-76030

4A#,5AFE,4EFE..AE10#,EE101..ATM

 1
27330-76030

2C..CE100,104;4AFE,5AFE,4EFE..AE10#,EE101..ATM

 1
27330-76030

4AFE,5AFE,4EFE..AE10#,EE101..ATM

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

2E,3E..EE106,107,108..3FC;4AFE,5AFE,4EFE..AE10#,EE101

 1
90099-10140

2E,3E..EE106,107,108..3FC;4AFE,5AFE,2C,4EFE..AE10#,CE100,104,EE101

 1
90099-10140

4AFE,5AFE,4EFE..AE10#,EE101;4AGE,2E,3E..AE101,EE106,107,108..ATM

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-55080

4AFE,5AFE,4EFE..AE100,101,EE101..ATM

 1
27357-74050

4EFE..EE101..3FC

 1
27357-62040

4AFE,5AFE,4EFE..AE100,101,EE101..ATM

 1
27357-55080

2C,3CE..CE100,104,105,109;4AFE,5AFE,2C,3CE,4EFE,5EFE..AE100,101,109,CE102,106,107,108,EE10#..ATM

 1
27357-55080

2C..CE100,104;4AFE,5AFE,4EFE..AE100,101,EE101..ATM

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-16270

4EFE,5EFE..EE101,102,103,104..3FC

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

4A#,5AFE,4EFE..AE10#,EE101..ATM

 1
27370-75060

2C..CE100,104;4A#,5AFE,4EFE..AE10#,EE101..ATM

 1
27370-75060

2C,3CE..CE100,104,105,109;4A#,5AFE,2C,3CE,4EFE,5EFE..AE10#,CE102,106,107,108,EE10#..ATM

 1
27384 - WASHER
27384-50030

2C..CE100,104;4A#,5AFE,4EFE..AE10#,EE101..ATM

 1
27384-50030

2C,3CE..CE100,104,105,109;4A#,5AFE,2C,3CE,4EFE,5EFE..AE10#,CE102,106,107,108,EE10#..ATM

 1
27384-50030

4A#,5AFE,4EFE..AE10#,EE101..ATM

 1
27388 - COVER, ALTERNATOR BRUSH
27388-42010

4A#,5AFE,4EFE..AE10#,EE101..ATM

 1
27388-42010

2C..CE100,104;4A#,5AFE,4EFE..AE10#,EE101..ATM

 1
27411 - PULLEY, ALTERNATOR
27411-11060

4EFE,5EFE..EE101,102,103,104..3FC

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

4A#,5AFE,2E,3E,4EFE..AE10#,EE10#

 1
27443-63020

4A#,5AFE,2C,2E,3E,4EFE..AE10#,CE100,104,EE10#

 1
27443-63020

4A#,5AFE,2C,3CE,4EFE,5EFE..AE10#,CE10#,EE10#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-74030

4A#,5AFE,4EFE..AE10#,EE101..3FC,4FC,5F

 1
27700-11070

2E,3E..EE106,107..3FC;3E,4EFE..EE101,108..3FC,4F

 1
27700-11030

2E,3E..EE106,107..3FC;3E,4EFE..EE101,108..3FC,4F

 1
Common parts
27365-55080
27387-42020
27387-42021
27389-42010
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05119
90099-05171
90099-05172
90105-10102
90179-06158
90179-10016
93319-14025
Linked diagrams
1603
