EE101-BEHNK (1991)
Toyota Sprinter
(9106-9305)4EFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-11231 |
4EFE..EE101,102 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-11110 |
4EFE..EE101,102 |
1 | ||
| 17125 - STAY, SURGE TANK, NO.1 | ||||
| 17125-11030 |
4EFE,5EFE..EE101,102,103,104 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-11170 |
4EFE..EE101 |
1 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10179 |
4EFE..EE101 NO.1 |
4 | ||
| 90116-10017 |
4EFE..EE101 NO.2 |
2 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10179 |
4EFE..EE101 NO.1 |
4 | ||
| 90116-10017 |
4EFE..EE101 NO.2 |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92132-60825 |
4EFE..EE101 INTAKE SIDE |
3 | ||
| 92132-60825 |
5EFE..EE103,104..L,XL;4EFE,5EFE..EE101,102,103..(3FC,4F)..(DX,DXJ,LX,XE) INTAKE MANIFOLD |
3 | ||
| 92122-61025 |
4EFE,5EFE..EE10# EXHAUST MANIFOLD |
6 | ||
| 90116-10196 |
4EFE,5EFE..EE10# EXHAUST MANIFOLD |
6 | ||
| 92122-61025 |
4EFE..EE101 EXHAUST SIDE |
6 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92132-60825 |
4EFE..EE101 INTAKE SIDE |
3 | ||
| 92132-60825 |
5EFE..EE103,104..L,XL;4EFE,5EFE..EE101,102,103..(3FC,4F)..(DX,DXJ,LX,XE) INTAKE MANIFOLD |
3 | ||
| 92122-61025 |
4EFE,5EFE..EE10# EXHAUST MANIFOLD |
6 | ||
| 90116-10196 |
4EFE,5EFE..EE10# EXHAUST MANIFOLD |
6 | ||
| 92122-61025 |
4EFE..EE101 EXHAUST SIDE |
6 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-11220 |
4EFE..EE101 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-11040 |
4EFE..EE101,102 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-11021 |
4EFE,5EFE..EE10# |
1 | ||
| 17177-11020 |
4EFE,5EFE..EE101,102,103,104 |
1 | ||
| 17177-11070 |
4EFE,5EFE..EE10# |
1 | ||
| 25508 - CONVERTER SUB-ASSY, MANIFOLD | ||||
| 25508-11100 |
4EFE..EE101 |
1 | ||
| 25576 - GASKET, MANIFOLD CONVERTER | ||||
| 25576-11020 |
4EFE..EE101 |
1 | ||
| 25576-15020 |
4EFE..EE101 |
1 | ||
| 25586 - INSULATOR, MANIFOLD CONVERTER, NO.1 | ||||
| 25586-11022 |
4EFE..EE101 |
1 | ||
| 25587 - INSULATOR, MANIFOLD CONVERTER, NO.2 | ||||
| 25587-11022 |
4EFE..EE101 |
1 | ||
| Common parts | ||||
| 88894-18010 | ||||
| 90179-08040 | ||||
| 90179-08153 | ||||
| 90179-10096 | ||||
| 90339-09003 | ||||
| 90405-04002 | ||||
| 90406-09001 | ||||
| 90467-14003 | ||||
| 91611-60825 | ||||
| 91621-60814 | ||||
| 91621-B0612 | ||||
| 91621-J0612 | ||||
| 91651-B0816 | ||||
| 92122-B0814 | ||||
| 96411-44000 | ||||

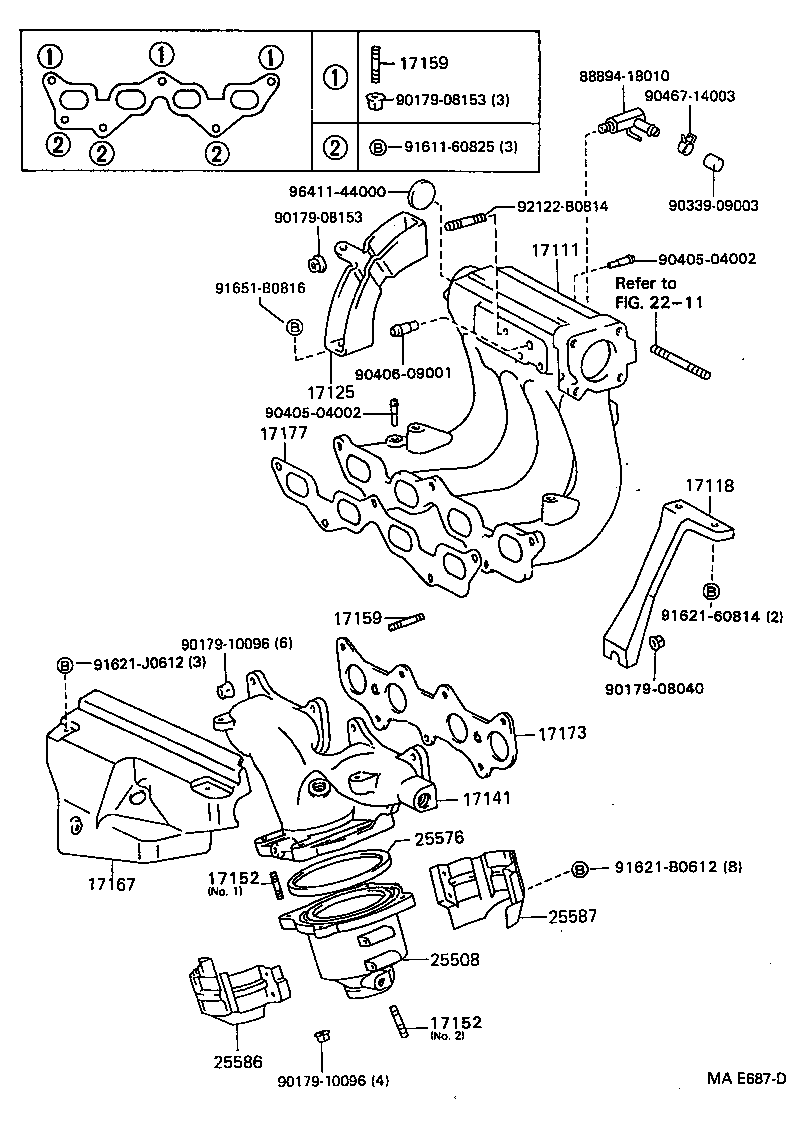

| Linked diagrams | ||||
| 2211 | ||||
