EE101-BEHNK (1991)

Toyota Sprinter

Production Jun 1991 - May 1995
Engine 4EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )4A#,5AFE,2E,3E,4EFE,5EFE

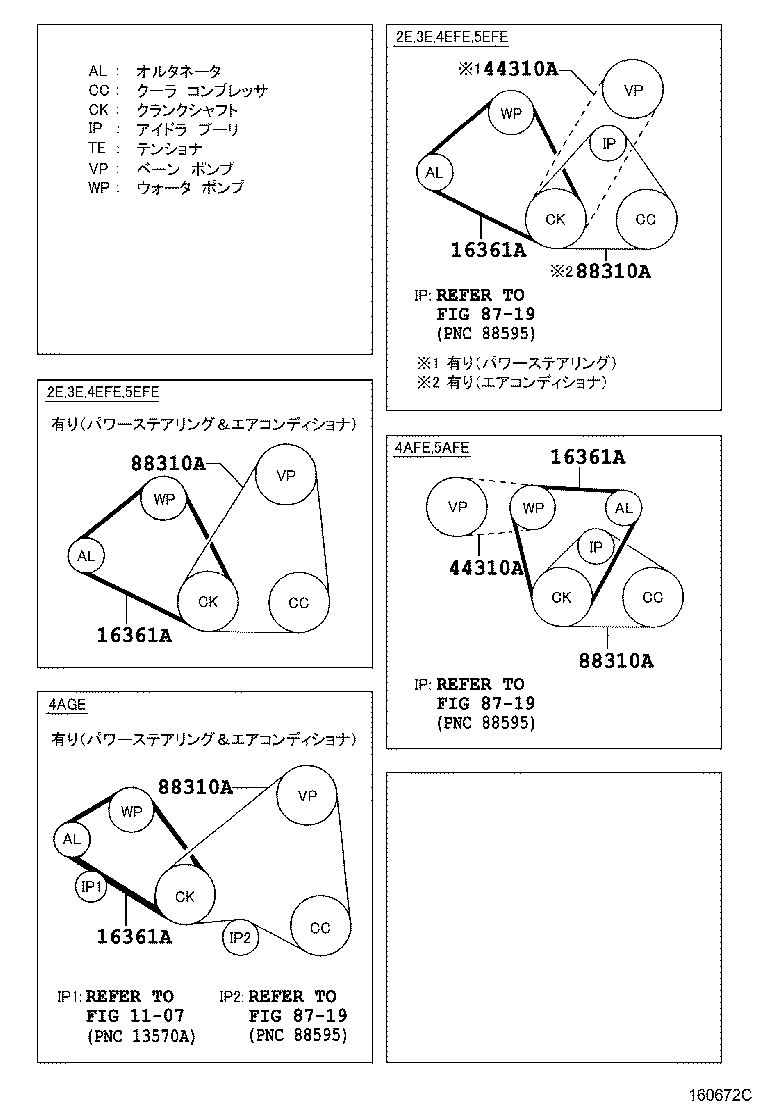

Click highlighted areas on diagram

diagram 1107 16361A 16361A 16361A 16361A 44310A 44310A 8719 8719 8719 88310A 88310A 88310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99364-20820

2E,3E..EE106,107..3FC;3E,4EFE..EE101,108..3FC,4F

長さ=820

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99364-20820

2E,3E..EE106,107..3FC;3E,4EFE..EE101,108..3FC,4F

長さ=820

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99364-20820

2E,3E..EE106,107..3FC;3E,4EFE..EE101,108..3FC,4F

長さ=820

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99364-20820

2E,3E..EE106,107..3FC;3E,4EFE..EE101,108..3FC,4F

長さ=820

 1
44310A - BELT, V(FOR VANE PUMP)
99365-50890

EE10#

 1
44310A - BELT, V(FOR VANE PUMP)
99365-50890

EE10#

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
90916-02362

EE107;EE101,108..L,LX,XE

 1
99365-21050

EE102..5F;EE101..LX,XE

長さ=1050

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
90916-02362

EE107;EE101,108..L,LX,XE

 1
99365-21050

EE102..5F;EE101..LX,XE

長さ=1050

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
90916-02362

EE107;EE101,108..L,LX,XE

 1
99365-21050

EE102..5F;EE101..LX,XE

長さ=1050

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
90916-02362

EE107;EE101,108..L,LX,XE

 1
99365-21050

EE102..5F;EE101..LX,XE

長さ=1050

 1
Linked diagrams
1107
8719
