EE101-BEHDK (1991)
Toyota Sprinter

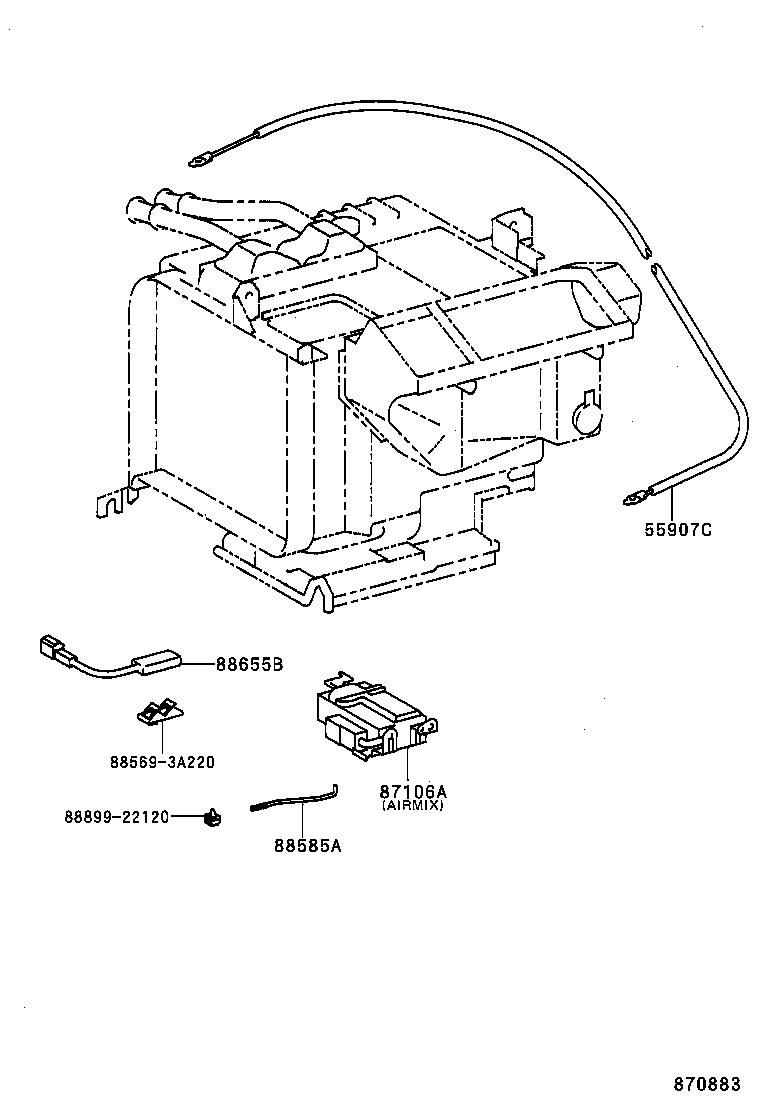

ILLUST NO. 3 OF 3(9106- )AE100,104,CE100,104,EE101..DX,LX,XE
ﾚﾊﾞ-ｼｷ ﾋ-ﾀ ｺﾝﾄﾛ-ﾙ,ｱﾘ(ｵ-ﾄｴｱｺﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55907C - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-12390 |
AE10#,CE104;CE100,EE101..LX,SEL,XE |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-12060 |
CE100..SEL;AE10#,EE101..GT,LX,SEG,SEL,XE ｶﾝﾚｲﾁ ｼﾖｳ,AIR MIX CONTROL |
1 | ||
| 87106-12050 |
EE101..LX,XE;AE10#,CE100,104..GT,SEG,SEL AIR MIX CONTROL |
1 | ||
| 87106-12060 |
EE101..LX,XE;AE10#,CE100,104..GT,SEG,SEL ｶﾝﾚｲﾁ ｼﾖｳ,AIR MIX CONTROL |
1 | ||
| 87106-12060 |
AE10#..GT,SEG,SEL,XE;CE100,104,EE101..LX,SEL,XE ｶﾝﾚｲﾁ ｼﾖｳ,AIR MIX CONTROL |
1 | ||
| 87106-12050 |
AE10#;CE100..SEL;EE101..LX,XE AIR MIX CONTROL |
1 | ||
| 87106-12050 |
AE10#..GT,SEG,SEL,XE;CE100,104,EE101..LX,SEL,XE AIR MIX CONTROL |
1 | ||
| 87106-12050 |
EE101..LX,XE;AE10#,CE100,104..GT,SEG,SEL,XE AIR MIX CONTROL |
1 | ||
| 87106-12060 |
EE101..LX,XE;AE10#,CE100,104..GT,SEG,SEL,XE ｶﾝﾚｲﾁ ｼﾖｳ,AIR MIX CONTROL |
1 | ||
| 88585A - SHAFT, HEATER AIR DAMPER | ||||
| 88585-12080 |
CE100,EE101..LX,XE;AE100,104,CE104..DX,LX ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 88585-12080 |
AE100,104,CE100,104,EE101..LX,XE ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 88585-12080 |
CE100..LX;EE101..LX,XE;AE100,104,CE104..DX,LX ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 88585-12070 |
CE100,EE101..LX,XE;AE100,104,CE104..DX,LX,XE |
1 | ||
| 88585-12070 |
CE100..LX;EE101..LX,XE;AE100,104,CE104..DX,LX |
1 | ||
| 88585-12070 |
CE100,EE101..LX,XE;AE100,104,CE104..DX,LX |
1 | ||
| 88655B - SWITCH, WATER TEMPERATURE | ||||
| 88790-28010 |
AE10#,CE104;CE100,EE101..LX,SEL,XE |
1 | ||
| Common parts | ||||
| 88569-3A220 | ||||
| 88899-22120 | ||||
ILLUST NO. 2 OF 3(9106- )AE100,104,109,CE10#,EE10#
ﾚﾊﾞ-ｼｷ ﾋ-ﾀ ｺﾝﾄﾛ-ﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN | ||||
| 87103-12030 |
AE10#,CE10#,EE10# |
1 | ||
| 87126B - CLAMP, HEATER CONTROL | ||||
| 87126-12040 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XE,XL |
1 | ||
| 87126-12040 |
AE100,104,109,CE10#,EE10# |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-12281 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XE,XL |
1 | ||
| 87130-12280 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,L,LX,XE,XL |
1 | ||
| 88605U - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-1E870 |
AE10#,CE10#,EE10# |
1 | ||
| Common parts | ||||
| 90179-06054 | ||||
ILLUST NO. 1 OF 3(9106- )AE100,104,109,CE10#,EE10#
ﾚﾊﾞ-ｼｷ ﾋ-ﾀ ｺﾝﾄﾛ-ﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-12380 |
AE10#,EE10# |
1 | ||
| 87107-12470 |
AE10#,CE10#,EE10# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-12380 |
AE10#,EE10# |
1 | ||
| 87107-12470 |
AE10#,CE10#,EE10# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87126A - CLAMP, HEATER CONTROL | ||||
| 87126-12050 |
AE100,104,CE10#,EE10#..CTD,DX,L,LX,XE,XL |
2 | ||
| 87126-12050 |
AE100,104,109,CE10#,EE10# |
2 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-12570 |
AE100,104,EE10#..CTD,DX,DXJ,L,LX,XE,XL |
1 | ||
| 87150-12600 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,L,LX,XE,XL ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87150-12601 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,L,LX,XE,XL ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87150-12571 |
AE100,104,EE10#..DX,DXJ,L,LX,XE,XL |
1 | ||
| 87201D - DUCT SUB-ASSY, AIR | ||||
| 87201-12300 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XE,XL |
1 | ||
| 87201-12310 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XE,XL ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87211F - DUCT, AIR | ||||
| 87211-12160 |
AE10#,CE10#,EE10# |
1 | ||
| 87211-12170 |
AE10#,CE10#,EE10# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| Common parts | ||||
| 90179-06054 | ||||
