CE96V-BXMBS (1989)

Toyota Sprinter

Production Aug 1989 - Aug 1991
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8908-9108)1C,2E,3E..CE96,EE96,98

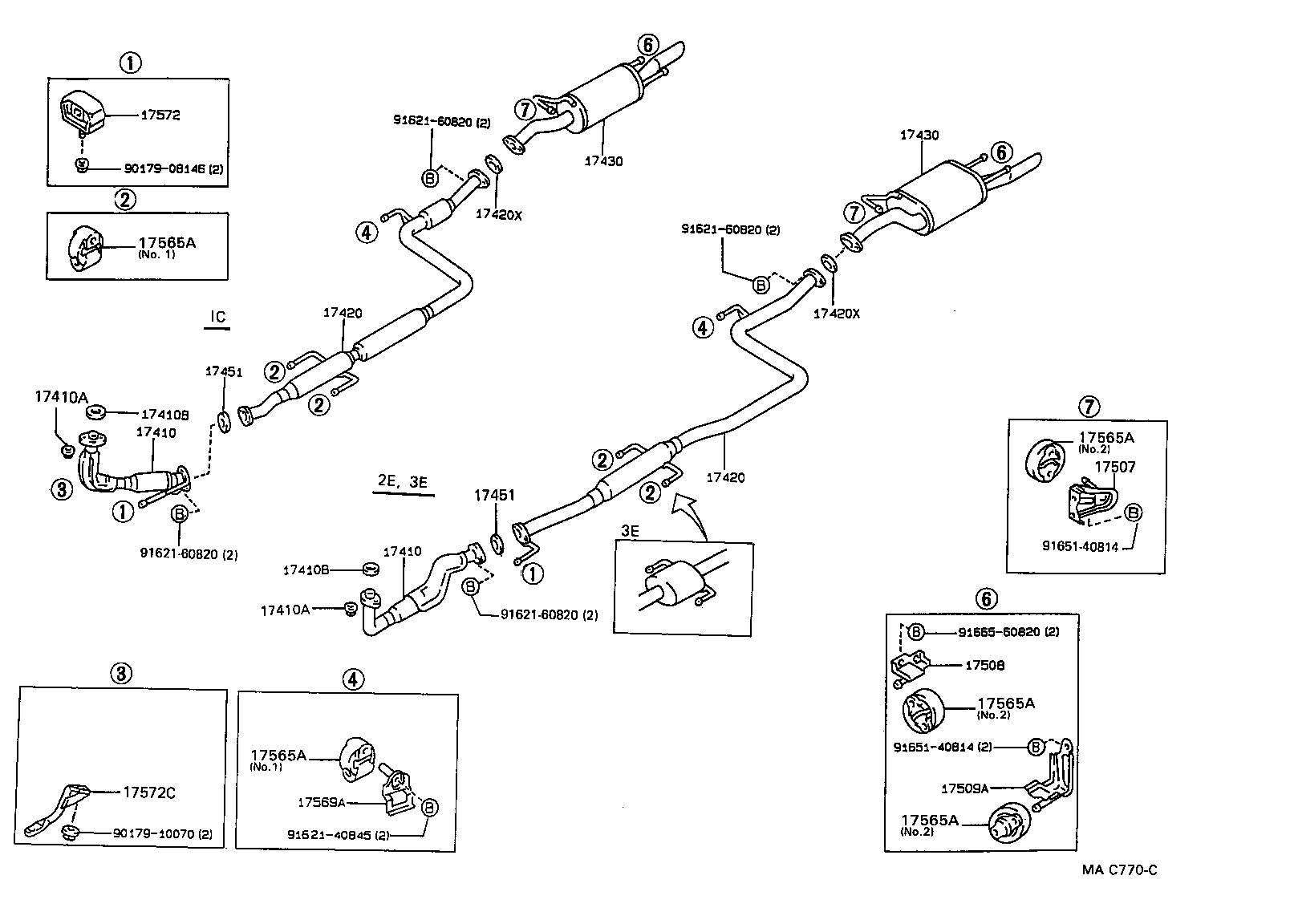

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17420 17420 17420X 17420X 17430 17430 17451 17451 17507 17508 17509A 17565A 17565A 17565A 17565A 17565A 17569A 17572 17572C 9017908146 9017910070 9162140845 9162160820 9162160820 9162160820 9162160820 9165140814 9165140814 9166560820
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-64270

1C..CE90,96

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-64270

1C..CE90,96

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

4AF#,5AF,5AFE,1C,2C,2E,3E..AE91,95,CE9#,EE9#

 2
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

4AF#,5AF,5AFE,1C,2C,2E,3E..AE91,95,CE9#,EE9#

 2
17410B - GASKET, EXHAUST PIPE
90917-06004

4AF#,5AF#,1C,2E,3E..AE91,95,CE9#,EE9#

 1
17410B - GASKET, EXHAUST PIPE
90917-06004

4AF#,5AF#,1C,2E,3E..AE91,95,CE9#,EE9#

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

4AF#,1C,3E..AE95,CE9#,EE98

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

4AF#,1C,3E..AE95,CE9#,EE98

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-64570

1C..CE96

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-64570

1C..CE96

 1
17451 - GASKET, EXHAUST PIPE
90917-06004

4AF#,5AF#,1C,2E..AE91,95,CE9#,EE90,96

 1
90917-06039

4AFE,5AFE,1C,2C,2E,3E..AE91,95,CE9#,EE9#

 1
17451 - GASKET, EXHAUST PIPE
90917-06004

4AF#,5AF#,1C,2E..AE91,95,CE9#,EE90,96

 1
90917-06039

4AFE,5AFE,1C,2C,2E,3E..AE91,95,CE9#,EE9#

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-15070

5AF,5AFE,1C,2E,3E..AE91,CE90,96,EE9#

NO.1

 3
17565-15070

1C,2E,3E..CE96,EE96,98

NO.1

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-15070

5AF,5AFE,1C,2E,3E..AE91,CE90,96,EE9#

NO.1

 3
17565-15070

1C,2E,3E..CE96,EE96,98

NO.1

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-15070

5AF,5AFE,1C,2E,3E..AE91,CE90,96,EE9#

NO.1

 3
17565-15070

1C,2E,3E..CE96,EE96,98

NO.1

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-15070

5AF,5AFE,1C,2E,3E..AE91,CE90,96,EE9#

NO.1

 3
17565-15070

1C,2E,3E..CE96,EE96,98

NO.1

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-15070

5AF,5AFE,1C,2E,3E..AE91,CE90,96,EE9#

NO.1

 3
17565-15070

1C,2E,3E..CE96,EE96,98

NO.1

 2
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-15050

4AGE,4AF#,5AF#,1C,2E,3E..AE9#,CE90,96,EE9#

 1
17572C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-64130

1C..CE9#

 1
Common parts
90179-08146
90179-10070
91621-40845
91621-60820
91651-40814
91665-60820
