CE95-BEMNS (1989)

Toyota Sprinter

Production Oct 1989 - Jun 1991
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )2C

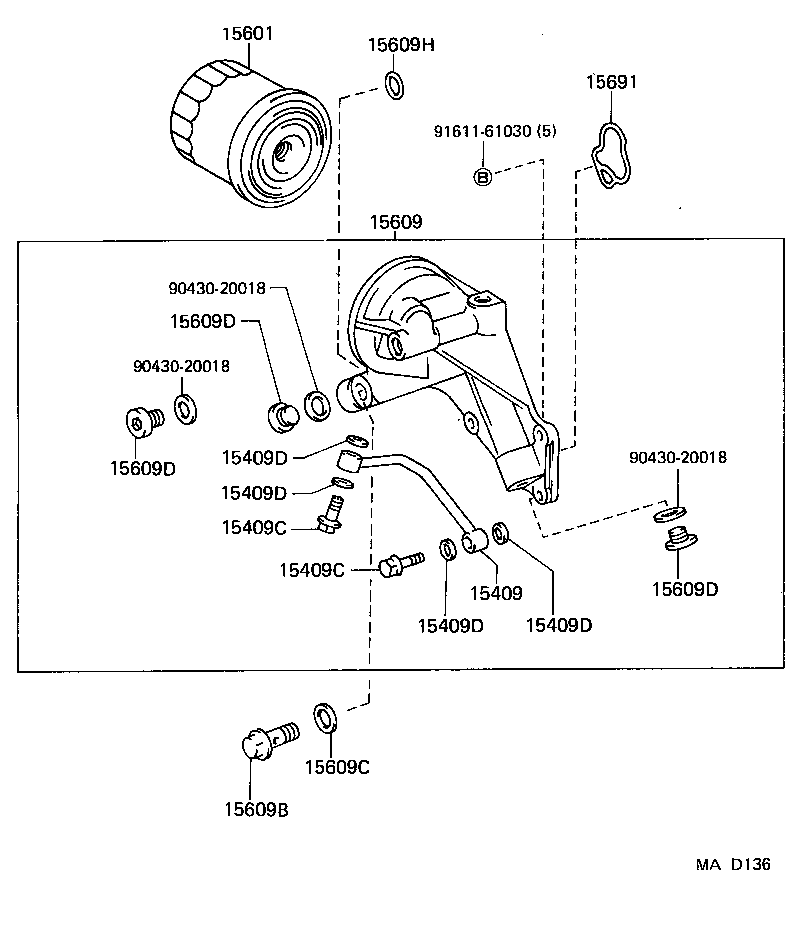

Click highlighted areas on diagram

diagram 15409 15409C 15409C 15409D 15409D 15409D 15409D 15601 15609 15609B 15609C 15609D 15609D 15609D 15609H 15691 9043020018 9043020018 9043020018 9161161030
Part # Description Qty Price
15409 - PIPE OR HOSE, OIL FILTER OUTLET
15431-64040

2C..CE95

 1
15409D - GASKET(FOR OIL FILTER OUTLET PIPE)
90430-10035

1C,2C..CE9#

 4
15409D - GASKET(FOR OIL FILTER OUTLET PIPE)
90430-10035

1C,2C..CE9#

 4
15409D - GASKET(FOR OIL FILTER OUTLET PIPE)
90430-10035

1C,2C..CE9#

 4
15409D - GASKET(FOR OIL FILTER OUTLET PIPE)
90430-10035

1C,2C..CE9#

 4
15601 - FILTER SUB-ASSY, OIL
90915-03003

1C,2C..CE9#

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-64010

2C..CE95

 1
15609B - UNION(FOR OIL FILTER BRACKET)
90401-18020

2C..CE95

 1
15609C - GASKET(FOR OIL FILTER BRACKET UNION)
90430-20014

2C..CE95

 1
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20002

2C..CE95

 5
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20002

2C..CE95

 5
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20002

2C..CE95

 5
15609H - RING, O(FOR OIL FILTER BRACKET)
90301-22004

2C..CE95

 1
Common parts
90430-20018
91611-61030
